32
Safety Information Product Overview Installation Diagnostics
Options and
Accessories
Specification
Analog Command Wiring

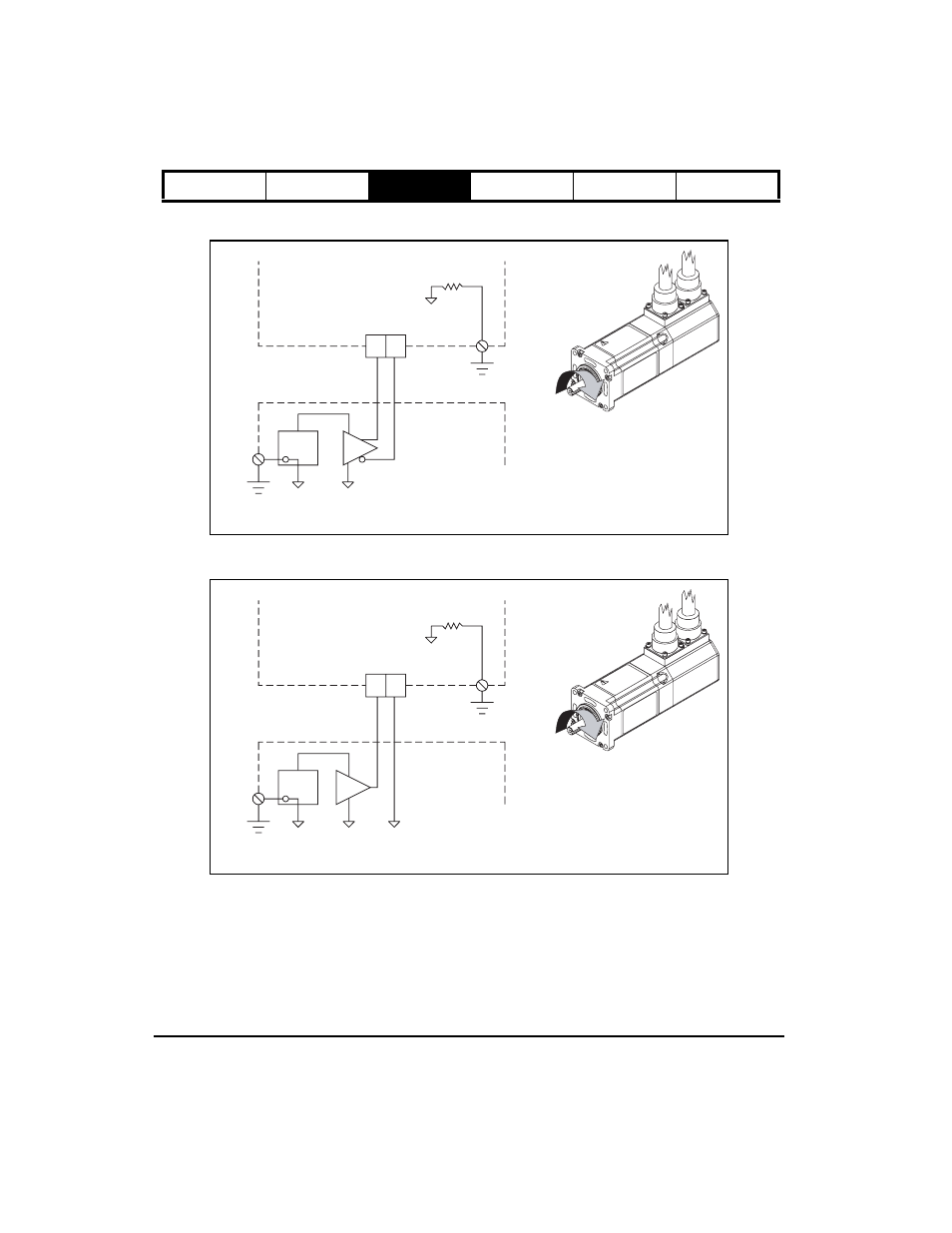

Figure 33: Analog Command, Differential Wiring Diagram
Figure 34: Analog Command, Single Ended Wiring Diagram
Encoder Output Signal Wiring
The encoder outputs meet RS-422 line driver specifications and can drive up to ten RS-422 signal receivers.
The default encoder output scaling is set to output the actual motor encoder resolutions. The standard MG and NT
motors have 2048 lines per revolution. With PowerTools Pro software this resolution is adjustable in one line per
revolution increments up to the density of the encoder in the motor.
+
_
Single Point
Panel Ground
Controller Logic Common
Logic
Common
(Internal)
10 Ohm
+ Analog In
- Analog In
Analog/Sync Output
Connector (J5)
CW Rotation
+ Command = CW
With positive direction = CW
External
Controller
Single Point
Panel Ground
PE
13 5
Vdc
+
_
Single Point
Panel Ground
Controller Logic Common
Logic
Common
(Internal)
10 Ohm
+ Analog In
- Analog In
Analog/Sync Output
Connector (J5)
CW Rotation
+ Command = CW
With positive direction = CW
External
Controller
Single Point
Panel Ground
PE
13 5
Vdc
