Diagnostics and Troubleshooting 43
Safety Information Product Overview Installation Diagnostics
Options and
Accessories
Specification

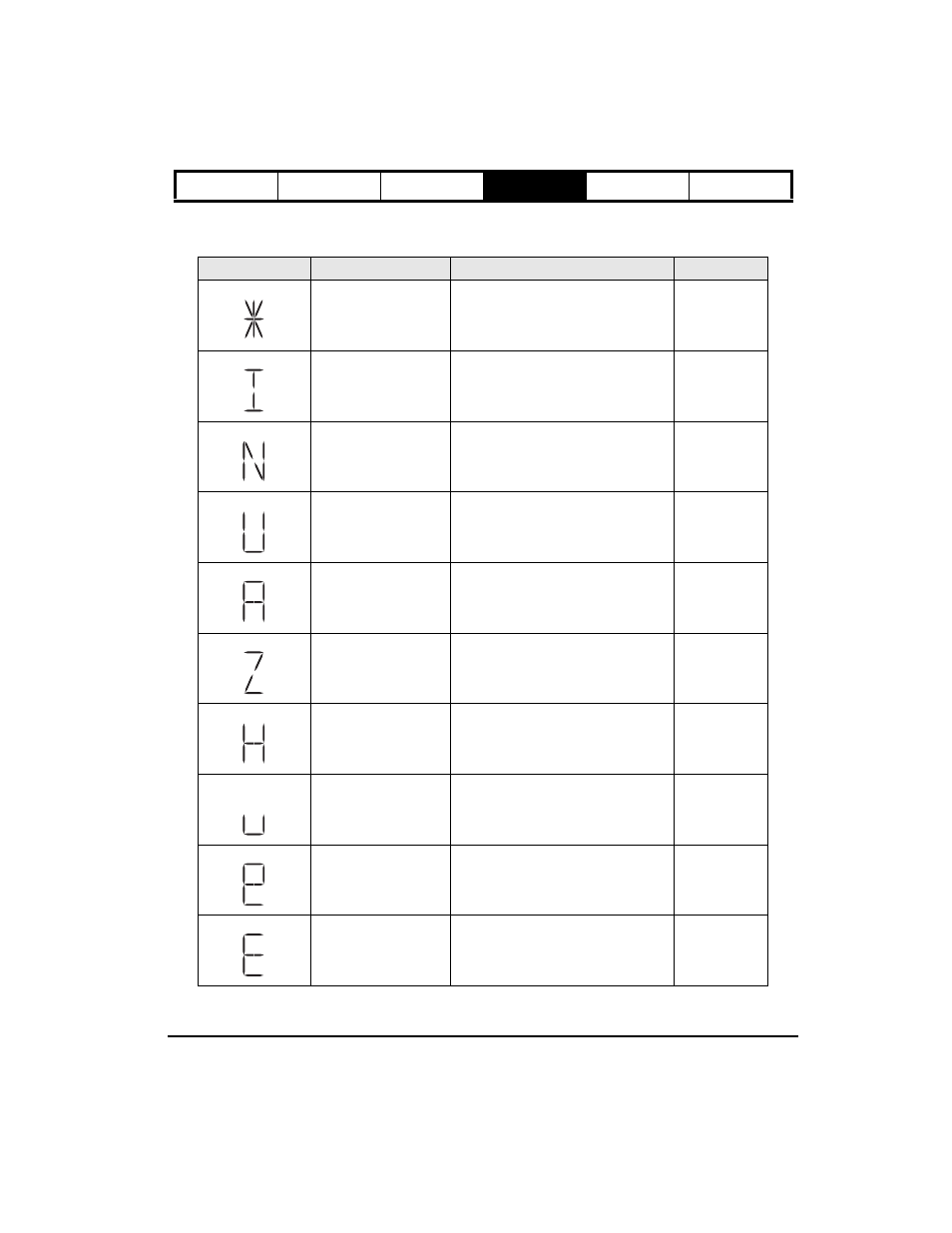

The +/- Travel Limit faults are automatically cleared when the fault condition is removed. The table below lists all the
fault codes in priority order from highest to lowest. This means that if two faults are active, only the higher priority
fault will be displayed.
Display Fault Action to Reset Bridge Disabled
Flash Invalid Reprogram the Flash Yes
Drive Power Up Test Cycle Logic Power Yes
NVM Invalid Reset Button or Input Line Yes
Invalid Configuration Reset Button or Input Line Yes
Drive Overtemp
Allow Drive to cool down,
Cycle Logic Power
Yes
Power Module Reset Button or Input Line Yes
High DC Bus Reset Button or Input Line Yes
Low DC Bus Reset Button or Input Line Yes
Encoder State
Reset Button or Input Line on EP-P drive
and
Cycle Logic Power on the other models
Yes
Encoder Hardware
Reset Button or Input Line on EP-P drive
and
Cycle Logic Power on the other models
Yes
