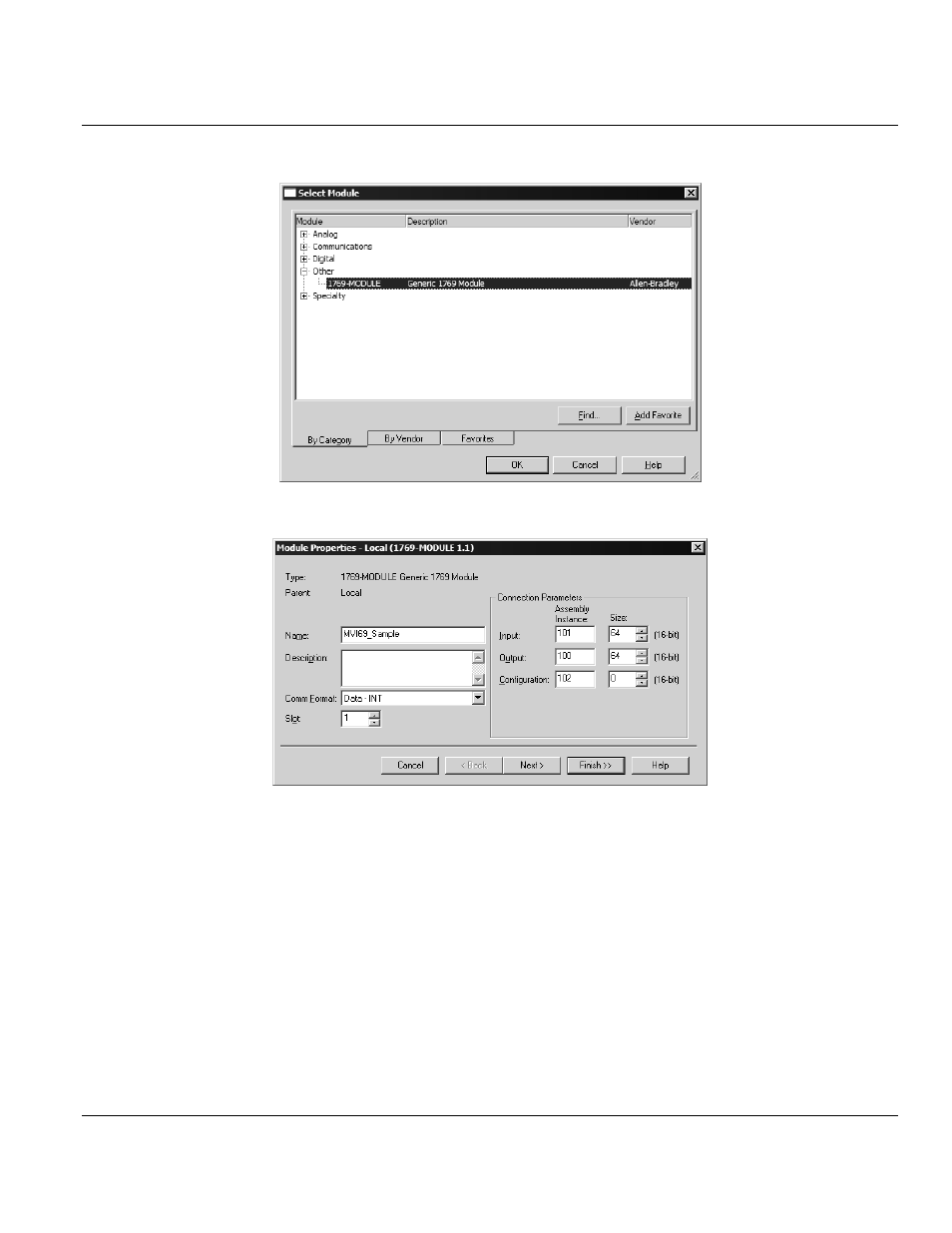

This action opens the following dialog box:
2 Select the 1769-Module (Generic 1769 Module) from the list and click OK.
3 Enter the Name, Description and Slot options for your application, using the values in the
illustration above. You must select the Comm Format as Data - INT in the dialog box,
otherwise the module will not communicate over the backplane of the CompactLogix
rack.
