 Consumption mode
In this mode the ports are shut down when the actual power consumption for all ports exceeds the amount of power that the
power supply can deliver or if the actual power consumption for a given port exceeds the reserved power for that port. The
ports are shut down according to the ports priority. If two ports have the same priority the port with the highest port number
is shut down.
 Priority mode
In this mode the user assign the priority to the ports/PD. When the total PoE power consumption request is over the allowed
power supply limitation, the system shut down PoE ports by port priority setting.
Power over Ethernet Configuration
This section allows the user to inspect and configure the current PoE configuration settings , screen in Figure 4-16-2
appears.

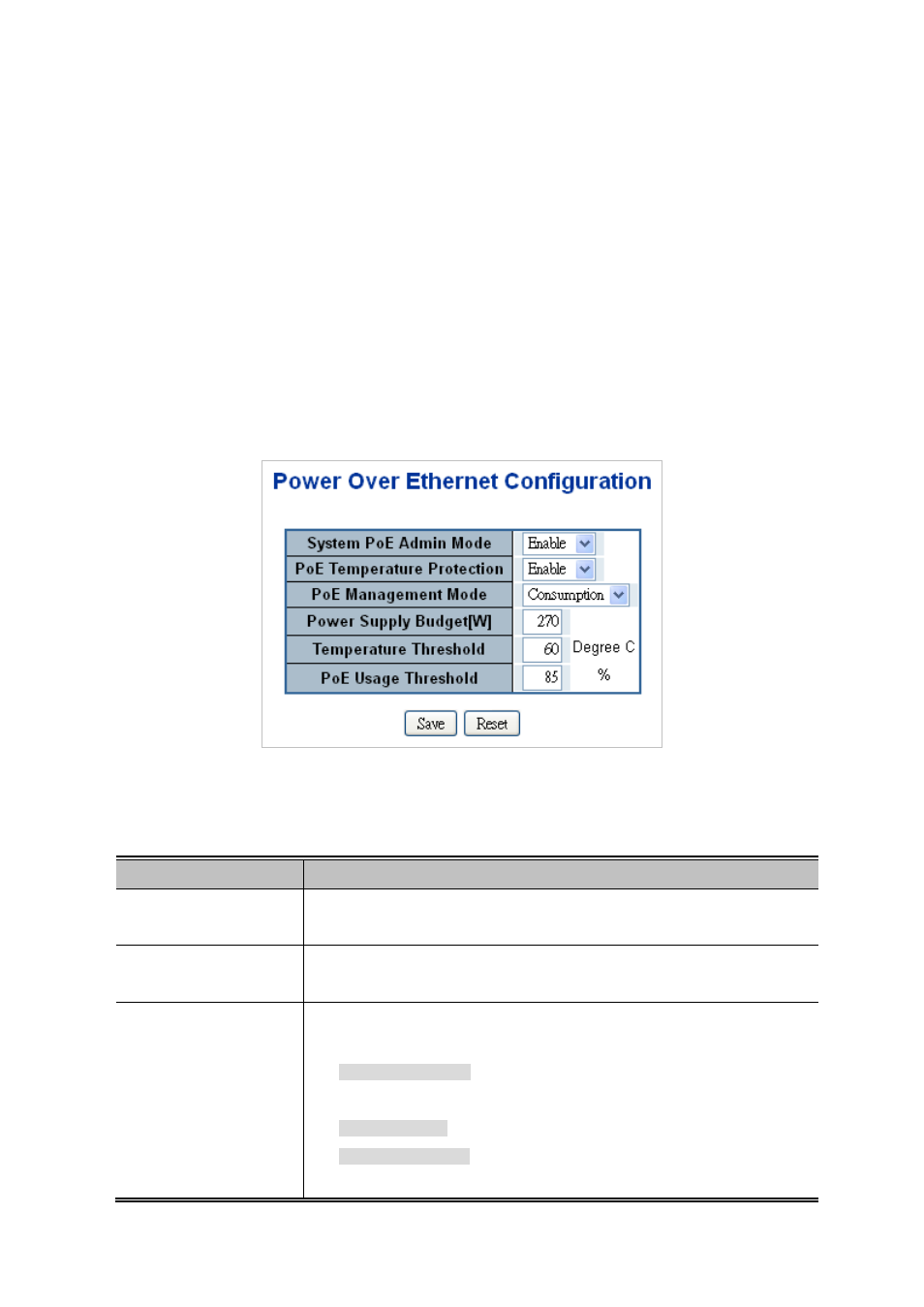

Figure 4-16-2: PoE Configuration Screenshot
The page includes the following fields:
Object Description
• System PoE Admin
Mode
Allows user to enable or disable PoE function. It will cause all of PoE ports to
supply or not supply power.
• PoE Temperature
Protection
Allows user to enable or disable PoE Temperature Protection.
• PoE Management
Mode
There are five modes for configuring how the ports/PDs may reserve power and
when to shut down ports.

Classification mode: System reserves PoE power to PD according to PoE
class level.

Allocation mode: allows user to assign PoE power to per port.

Consumption mode: System offers PoE power according to PD real power
consumption.
