User’s Manual of IGS-10020PT / IGS-10020HPT
215
• DEI
Drop Eligible Indicator: Valid value of DEI can be any of values between 0, 1 or
'Any'.
•
Action Indicates the classification action taken on ingress frame if parameters
configured are matched with the frame's content.
There are three action fields: Class, DPL and DSCP.

Class: Classified QoS Class; if a frame matches the QCE it will be put
in the queue.

DPL: Drop Precedence Level; if a frame matches the QCE then DP
level will set to value displayed under DPL column.

DSCP: If a frame matches the QCE then DSCP will be classified with
the value displayed under DSCP column.
•
Modification Buttons You can modify each QCE in the table using the following buttons:
: Inserts a new QCE before the current row.
: Edits the QCE.
: Moves the QCE up the list.
: Moves the QCE down the list.
: Deletes the QCE.
: The lowest plus sign adds a new entry at the bottom of the list of QCL.
4.9.11.1 QoS Control Entry Configuration

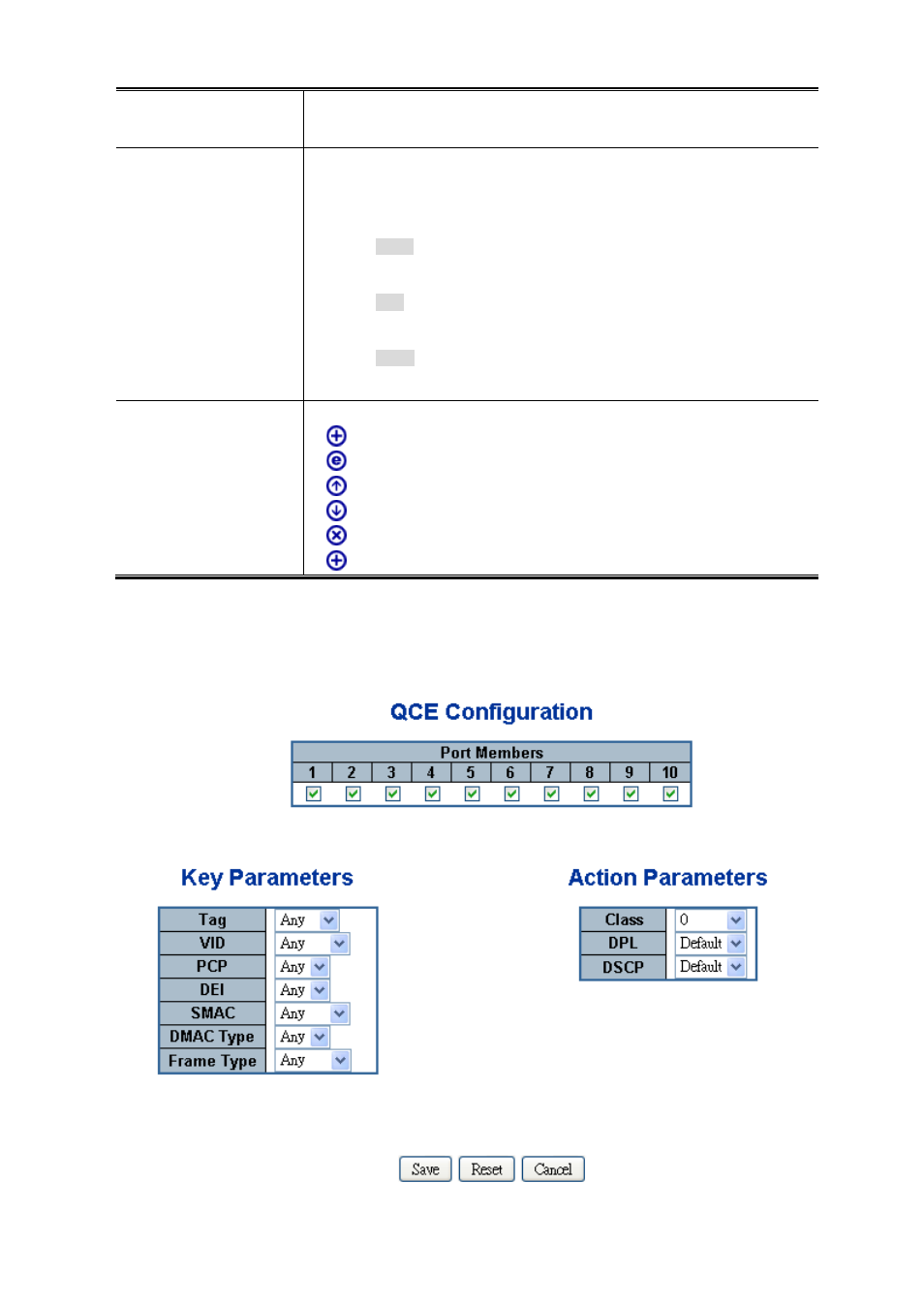

The QCE Configuration screen in Figure 4-9-14 appears.
Figure 4-9-14: QCE Configuration Page Screenshot
