Page 117: Datafiles screen
Data Collection Module
105
Appendix B.3.3 Datafiles Screen
This screen lists the different files types for viewing and download. There are five files types: F, S, L,
A and D.
• F indicates a fast data packet, containing electrical information such as voltages, amps and watts.
• S represents a slow packet for measurements collected over a longer period, such as tempera-
tures.
• L stands for Log files and these contain information on system modes, statuses and commands.
• A indicates an alarm file and will contain information on any Faults or Warnings recorded.
• D files indicate a system discharge and allow a user to view the time, duration and amount of Dis-
charge.

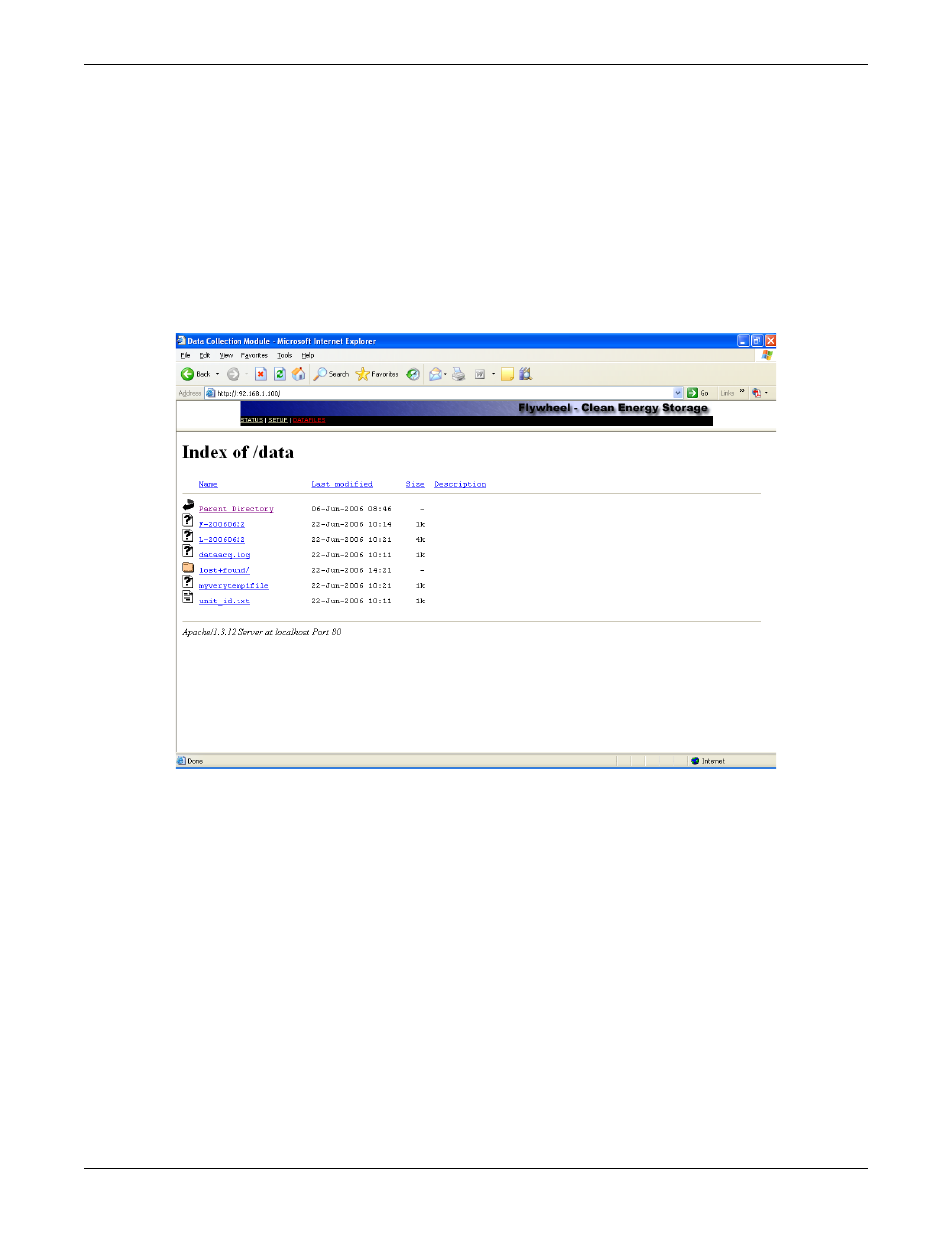

Figure 114 Datafiles screen
