Data Collection Module
101
Appendix B.2.2 DCM Requirements
The Data Collection Module requires a connection to an existing network via an Ethernet cable. An
RJ-45 jack is built directly into the bottom of the faceplate of the DCM and located adjacent to the
power supply connection. The DCM may also be connected via modem through COM2 serial port.
By connecting to your existing network with an Ethernet cable, you will be able to access the DCM via
your Internet browser. Figure 105 displays the LAN connection, which is located on the bottom side
of the DCM.

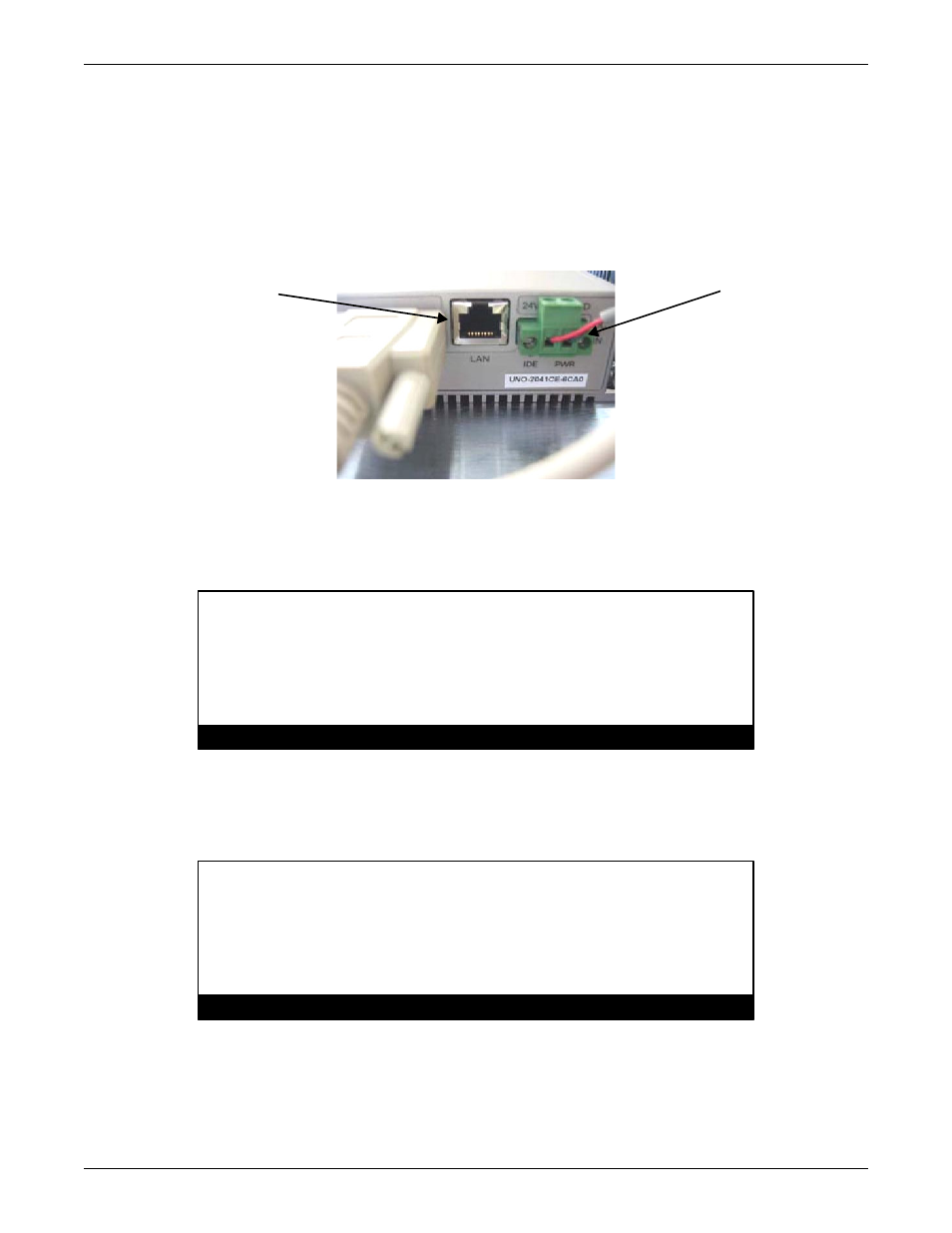

Figure 105 DCM LAN connection
DHCP is enabled at the factory. A connected DHCP Server automatically assigns an IP Address to
the DCM. To confirm that the DCM is enabled and operative, check the Liebert FS Control Panel.
From the Main Menu Screen, select number 2 “View” screen.
Figure 106 Options view
Select the number 5 “Options” screen to view the current status of the options. To enable or disable
this option, select and press the number 1 for the DCM option. To exit this screen, press the F6 or
“Done” key.
Figure 107 Enable or disable DCM
Power Connection
LAN Connection
1. TIME/DATE
2. TEMPERATURES
3. VOLTAGES
4. HISTORY
5. OPTIONS
6. NETWORK
7. ELECTRICAL
8. VITALS
HOME
MENU>VIEW
DONE
1. DCM
2. VIB
HOME
DONE
: INOPERATIVE
: OPERATIVE
