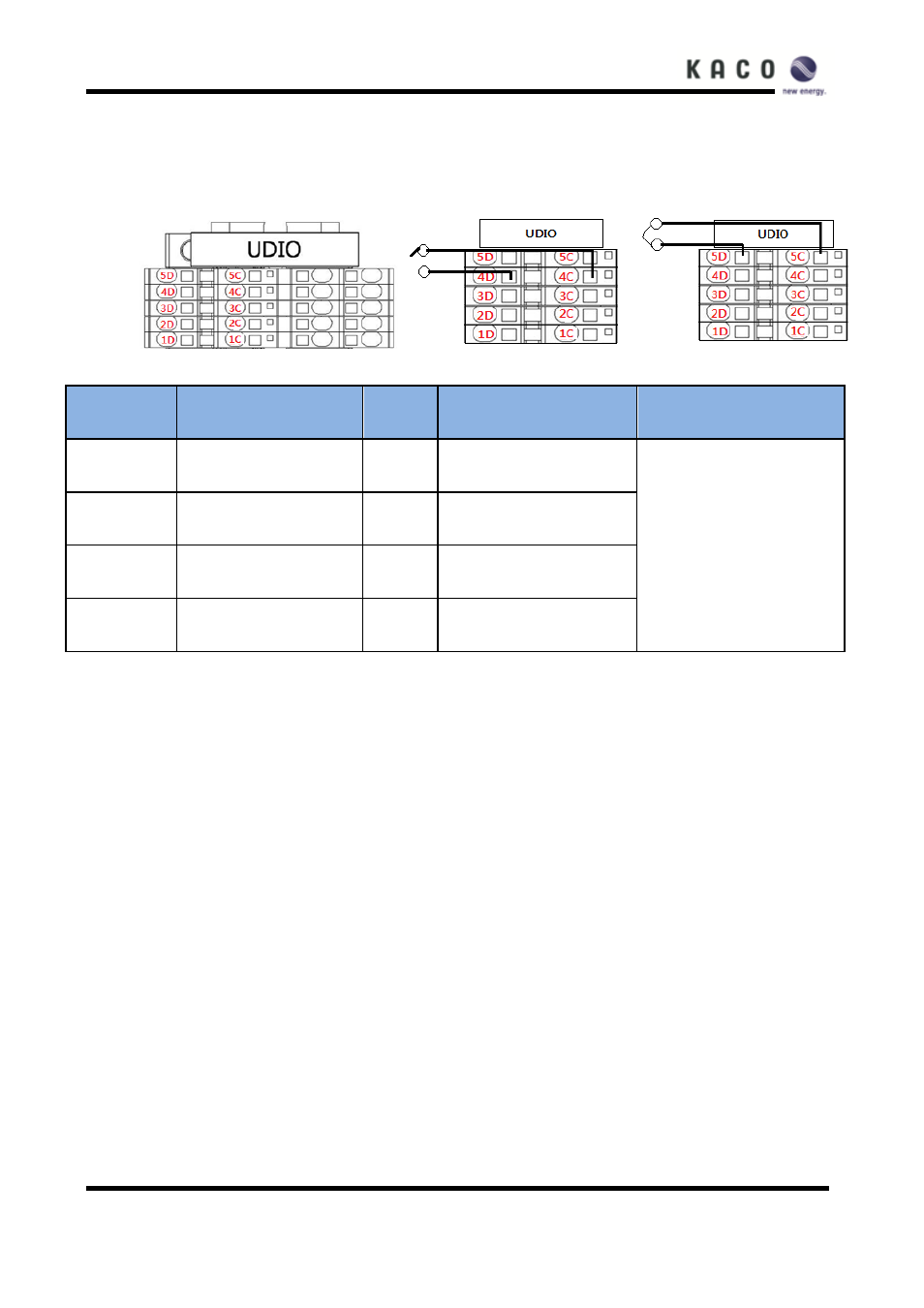

UDIO – User digital output (relay contacts)
Target port figure
Connect the wires
Normally Open
Normally Closed
Port num.
Port name
Wire #
Specification
Wire size
4C
UDO1A
C305
External output N/O
18-24 AWG
(0.82-0.20㎟)
4D
UDO1C
C306
External output common
5C
UDO1B
C307
External output N/C
5D
UDO1C
C308
External output common
