KACO blueplanet 5.0 - 9.0 TL3 - Manual (Page 46)

EN EN
Maintenance/Troubleshooting
Page 46 Operating Manual KACO blueplanet 5.0TL3 - 9.0TL3
A
B
B

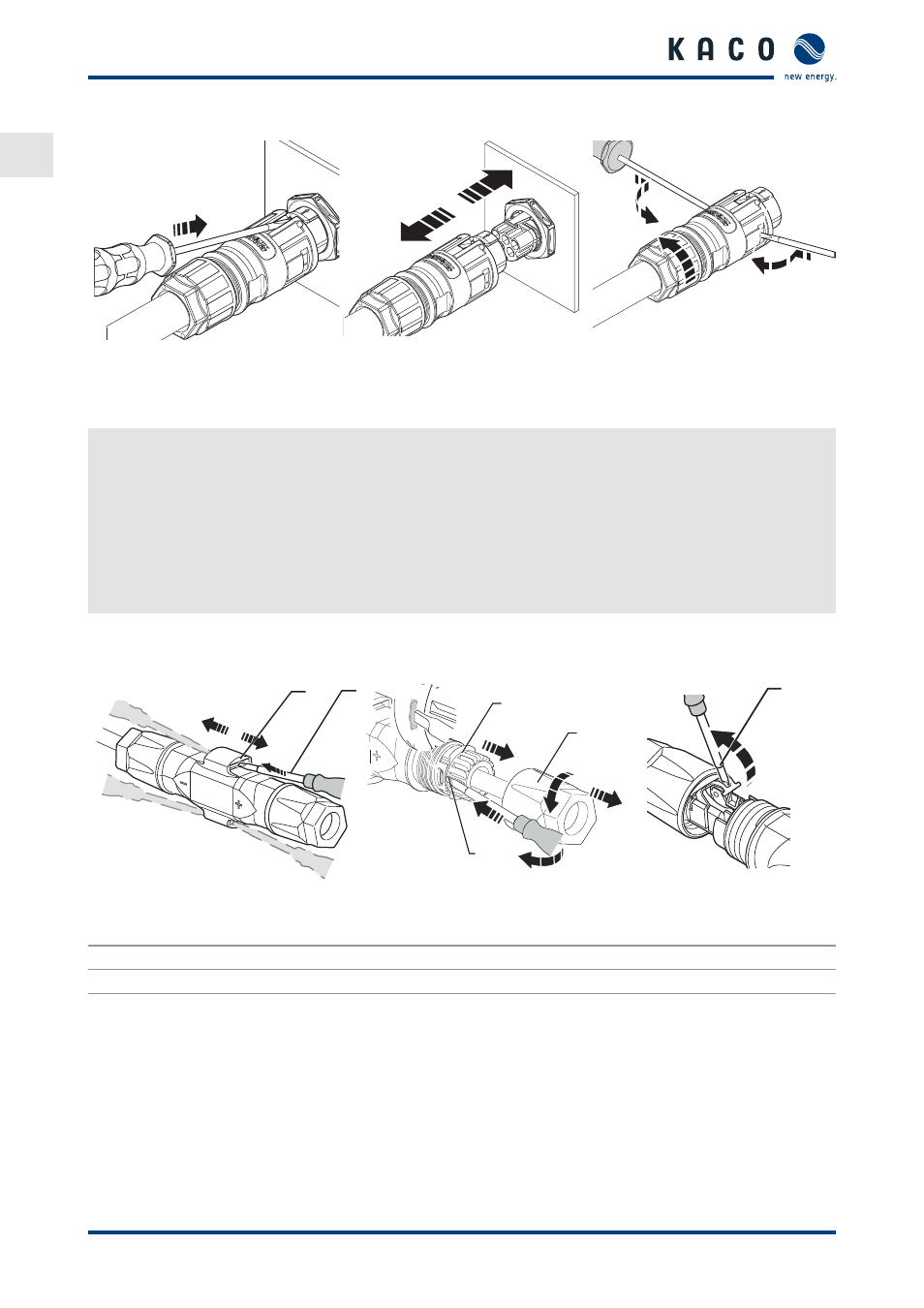

Figure 36: Disconnect the AC connec-
tion plug from the device
connector
Figure 37: Disconnect AC connection
plug
Figure 38: Unfasten the cable
Disconnect AC connection plug
↻ Ensure there is no AC/DC voltage present.
1.
Use a screwdriver (blade with 3.5mm) to press the tab on the housing downwards.
2. Unlock the plug connection.
3. Unscrew the cable fi tting.
4. Use a screwdriver to unlock the contact carrier on both sides.
5. Remove the contact carrier from the housing.
6. Unfasten and remove the screws on the contact carrier.
9.5.2 Disconnect DC connector
1
2
2 1
3
1
2
1
4
3
4
1
Figure 39: Disconnect connector Figure 40: Unfasten DC cable
Key
1 Screwdriver 3 Insert
2 Latch 4 Sleeve
