8 main circuit wiring, Factory recommended branch circuit protection, Main circuit terminal functions – Yaskawa AC Drive Z1000 User Manual

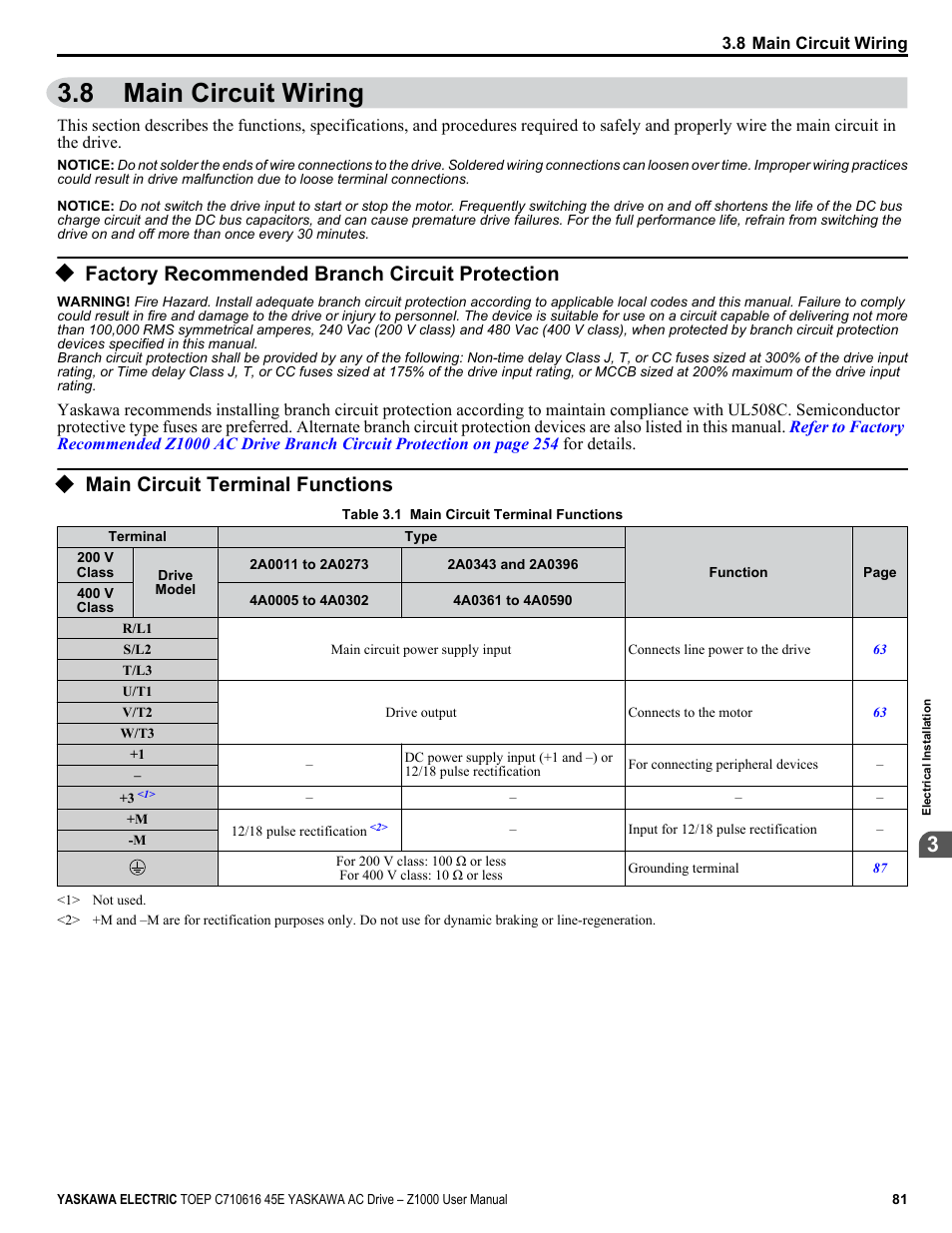

Page 81: Main circuit wiring
