SMA POWER PLANT CONTROLLER - Manual (Page 19)

SMA Solar Technology AG 5 Mounting
Operating Manual PPC-BE-P7-en-13 19

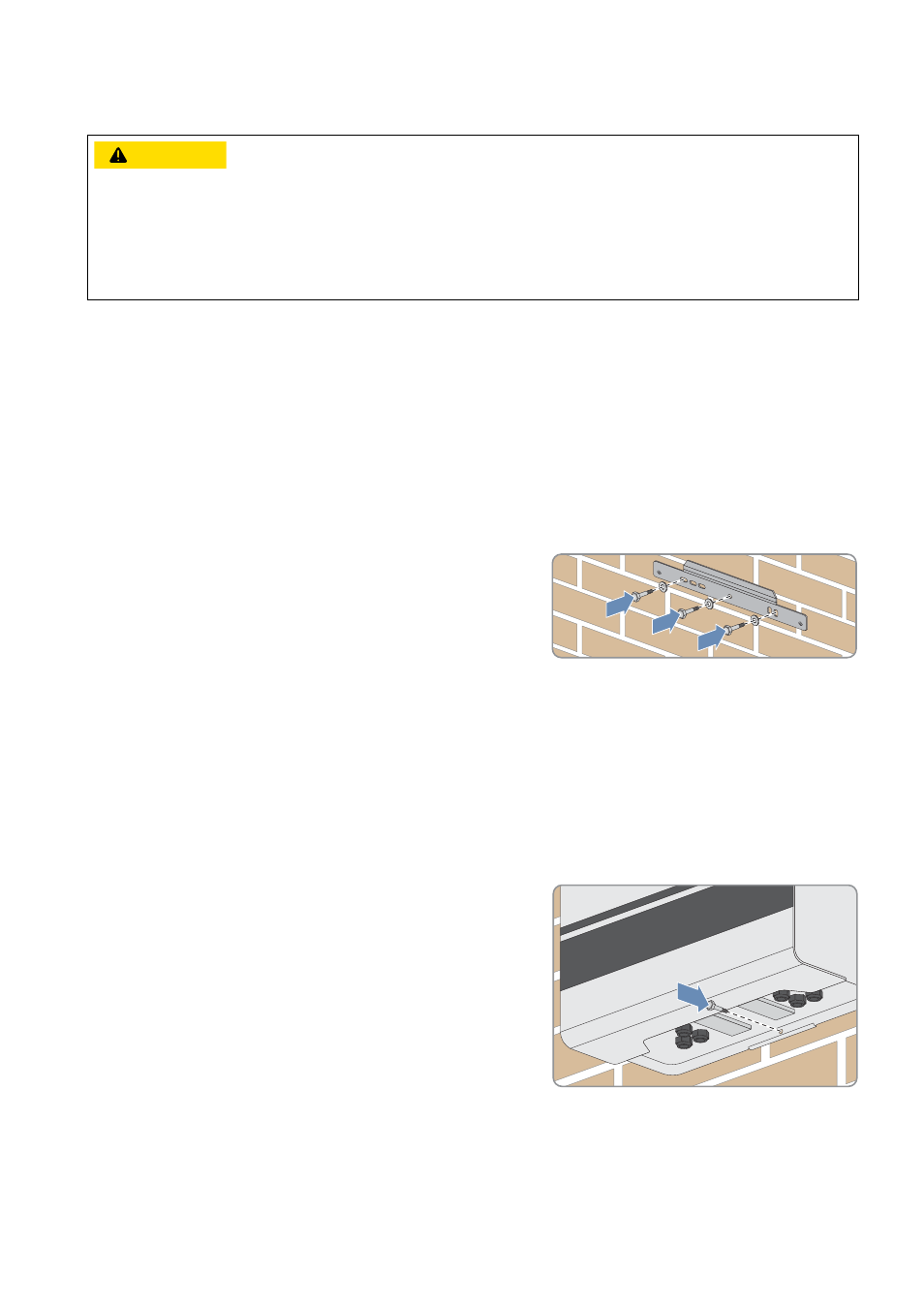

5.2 Mounting the Power Plant Controller
Additionally required mounting material (not included in the scope of delivery):
☐ At least four screws suitable for the support surface and the weight of the Power Plant Controller
☐ At least four washers
☐ If required, at least four screw anchors suitable for the support surface
Procedure:
1. Align the wall mounting bracket horizontally on the wall and use it to mark the position of the drill holes. Use at least
three holes in the wall mounting bracket.
2. Drill holes at the marked positions.
3. Insert screw anchors, if necessary.
4. Attach the wall mounting bracket using appropriate screws and
washers.
5. Hook the Power Plant Controller into the wall mounting bracket.
6. Make sure that the Power Plant Controller is correctly positioned on the wall mounting bracket and can be secured
with two screws in the inside.
7. Mark the drill hole on the bottom side of the Power Plant Controller.
8. Lift the Power Plant Controller vertically out of the wall mounting bracket and place it on a suitable support surface.
9. Drill the hole at the marked position.
10. If necessary, insert the screw anchor.
11. Hook the Power Plant Controller into the wall mounting bracket.
12. Attach the Power Plant Controller to the wall using suitable screws
and washers.
&$87,21
Danger of crushing from falling Power Plant Controller if mounted incorrectly
The Power Plant Controller is very heavy. If inappropriately transported or mounted, the Power Plant Controller can fall
down. This can result in crushing.
• Two people are needed to transport and mount the Power Plant Controller.
• Use mounting material suitable for the support surface when mounting the Power Plant Controller.
