HEIDENHAIN iTNC 530 319
8.6 SL Cy
cles

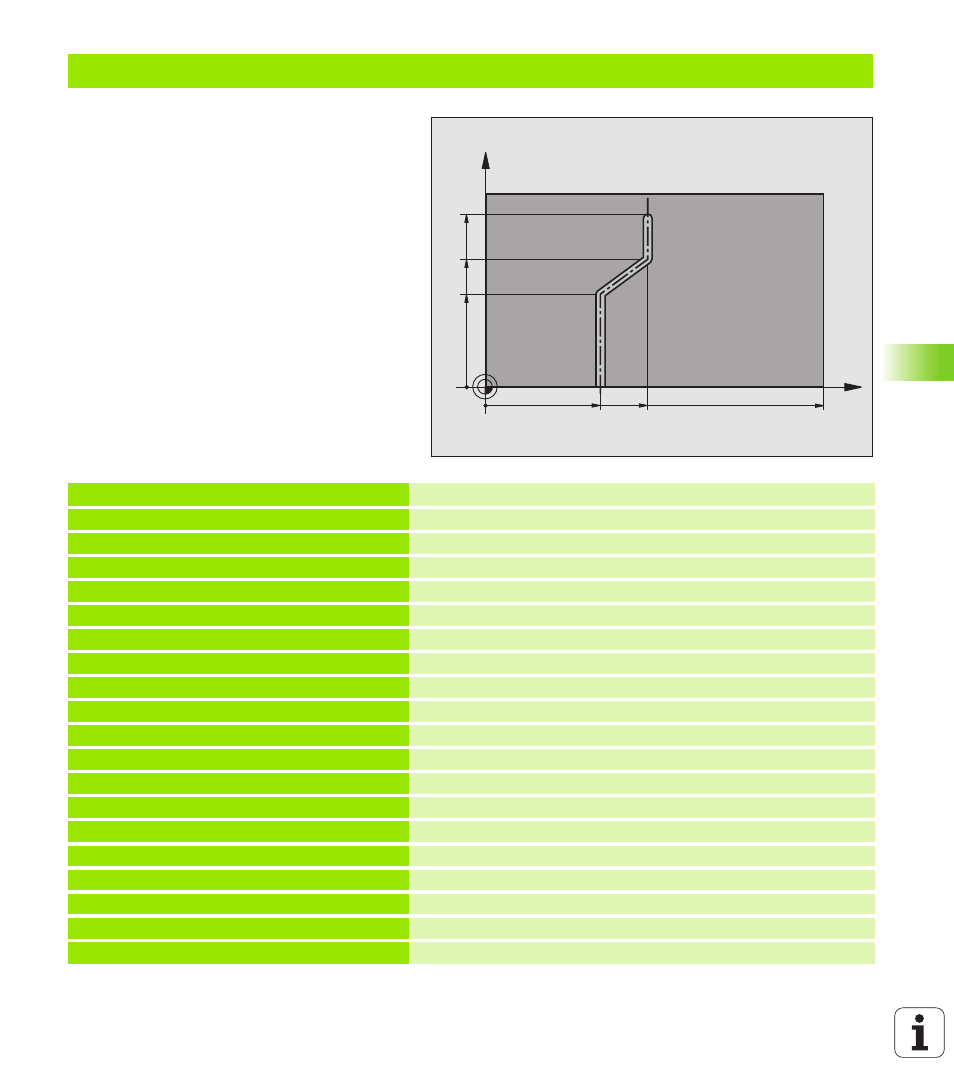

Example: Cylinder surface with Cycle 28
Notes:
n Cylinder centered on rotary table
n Datum at center of rotary table
n Description of the midpoint path in the
contour subprogram
0 BEGIN PGM C28 MM
1 TOOL DEF 1 L+0 R+3.5 Define the tool
2 TOOL CALL 1 Y S2000 Call tool, tool axis is Y
3 L Y+250 RO FMAX Retract the tool
4 L X+0 R0 FMAX Position tool on rotary table center
5 CYCL DEF 14.0 CONTOUR GEOMETRY Define contour subprogram
6 CYCL DEF 14.1 CONTOUR LABEL 1
7 CYCL DEF 28.0 CYLINDER SURFACE Define machining parameters
Q1=-7 ;MILLING DEPTH
Q3=+0 ;ALLOWANCE FOR SIDE
Q6=2 ;SAFETY CLEARANCE
Q10=-4 ;INFEED DEPTH
Q11=100 ;FEED RATE FOR PLUNGING
Q12=250 ;FEEED RATE FOR MILLING
Q16=25 ;RADIUS
Q17=1 ;DIMENSION TYPE
Q20=10 ;SLOT WIDTH
8 L C+0 R0 FMAX M3 Pre-position rotary table
9 CYCL CALL Call the cycle
10 L Y+250 R0 FMAX M2 Retract in the tool axis, end program
C
Z
157
52.5
40
35
60
70
