HEIDENHAIN iTNC 530 285
8.4 Cy
cles f
o
r Milling P
o
c
k
ets, St
uds and Slots

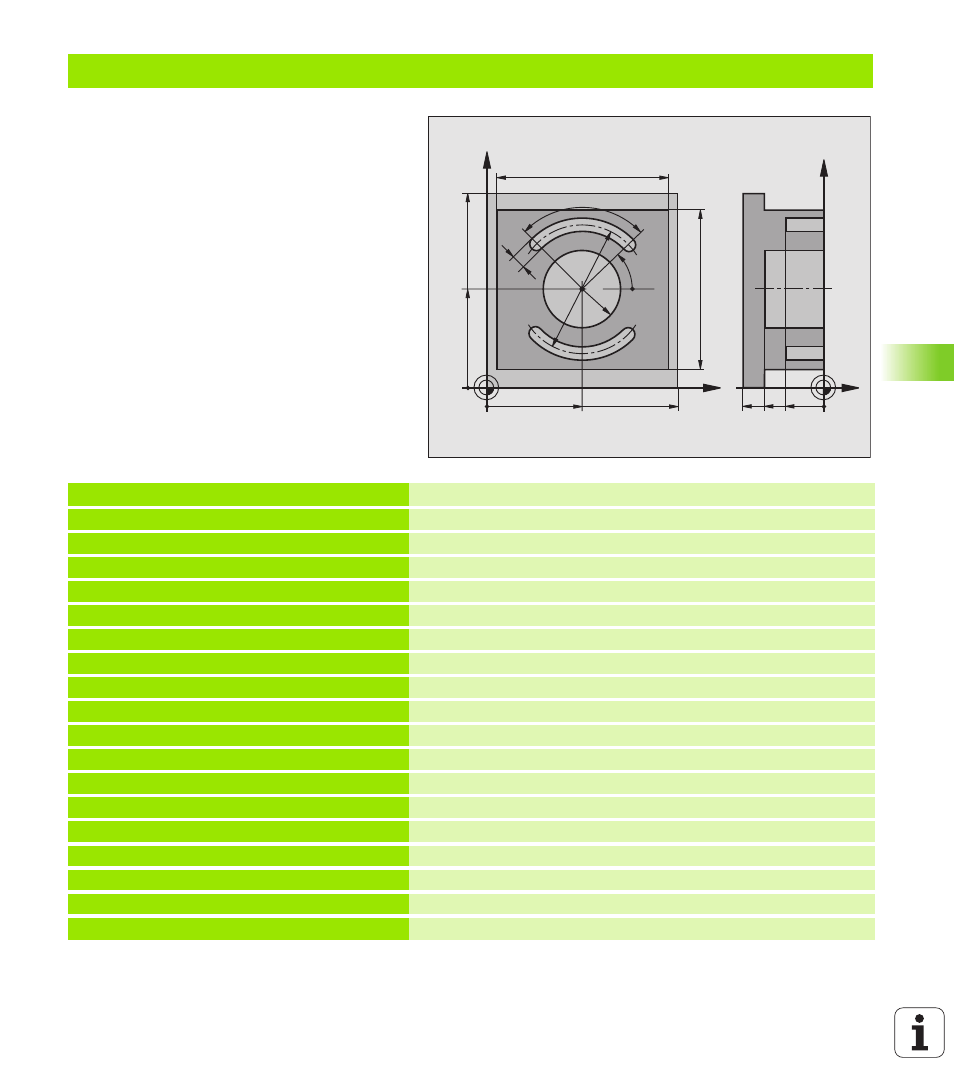

Example: Milling pockets, studs and slots
0 BEGIN PGM C210 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40 Define the workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+6 Define the tool for roughing/finishing
4 TOOL DEF 2 L+0 R+3 Define slotting mill
5 TOOL CALL 1 Z S3500 Call the tool for roughing/finishing
6 L Z+250 R0 FMAX Retract the tool
7 CYCL DEF 213 STUD FINISHING Define cycle for machining the contour outside
Q200=2 ;SAFETY CLEARANCE
Q201=-30 ;DEPTH
Q206=250 ;F FEED RATE FOR PLUNGING
Q202=5 ;INFEED DEPTH
Q207=250 ;FEED RATE FOR MILLING
Q203=+0 ;SURFACE COORDINATE
Q204=20 ;SECOND SET-UP CLEARANCE
Q216=+50 ;CENTER IN 1ST AXIS
Q217=+50 ;CENTER IN 2ND AXIS
Q218=90 ;FIRST SIDE LENGTH
Q219=80 ;SECOND SIDE LENGTH
X
Y
50
50
100
100
80
90
8
90°
45°
R25
70
Z
Y
-40 -20 -30
