80 4 Fundamentals of NC, File Management, Programming Aids, Pallet Management
4.1
0
Int
e
gr
at
ed P
o
c
k
et Calculat
or

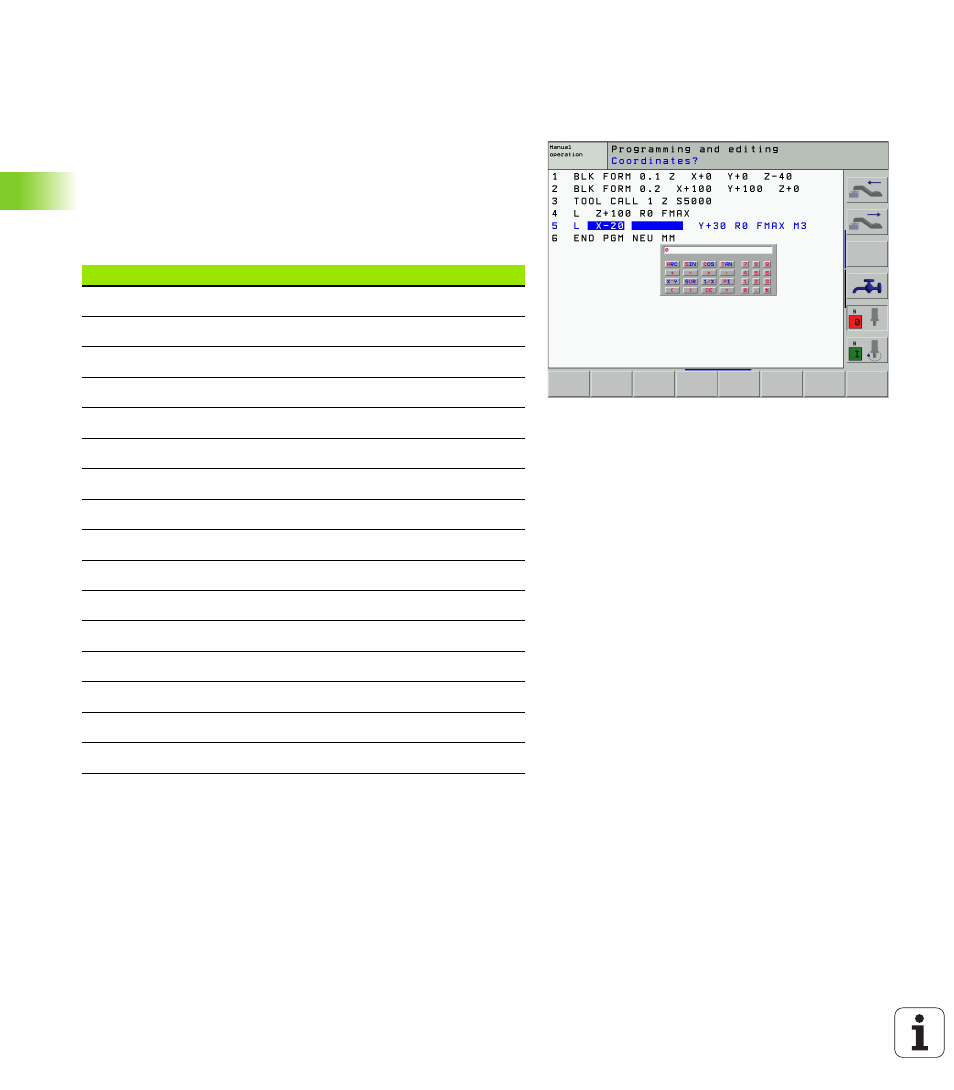

4.10 Integrated Pocket Calculator
Operation
The TNC features an integrated pocket calculator with the basic
mathematical functions.
U U U U Use the CALC key to show and hide the on-line pocket calculator.
U U U U The calculator is operated with short commands through the
alphabetic keyboard. The commands are shown in a special color in
the calculator window:
To transfer the calculated value into the program,
U U U U Select the word into which the calculated value is to be transferred
by using the arrow keys.
U U U U Superimpose the on-line calculator by using the CALC key and
perform the desired calculation.
U U U U Press the actual position capture key for the TNC to superimpose a
soft-key row.
U U U U Press the CALC soft key for the TNC to transfer the value into the
active input box and to close the calculator.
Mathematical function Command (key)
Addition +
Subtraction –
Multiplication *
Division :
Sine S
Cosine C
Tangent T
Arc sine AS
Arc cosine AC
Arc tangent AT
Powers ^
Square root Q
Inversion /
Parenthetic calculations ( )
p (3.14159265359) P
Display result =
