12 3-D Touch Probes 202
12.1 Touch Probe Cycles in the Manual
Operation Mode
The TNC must be specially prepared by the machine tool
builder for the use of a 3-D touch probe.

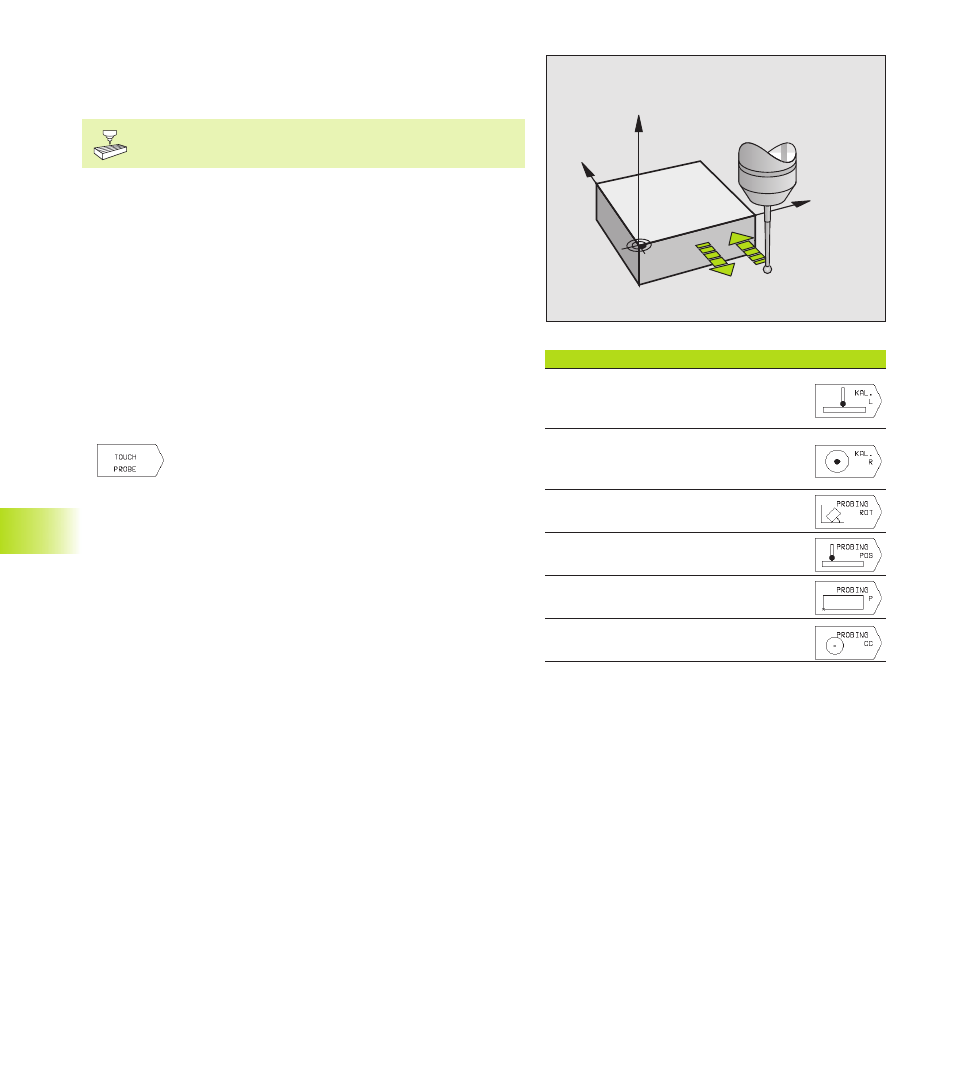

After you press the NC START button, the touch probe approaches
the workpiece in a paraxial movement in the selected probe
function. The machine tool builder sets the probe feed rate (see
figure at right). When the probe contacts the workpiece, it
■ transmits a signal to the TNC: the coordinates of the probed
position are stored,
■ stops moving, and
■ returns to its starting position in rapid traverse.
If the stylus is not deflected within a defined distance, the TNC
displays an error message (MP 6130).
Select the touch probe function
ú Select the Manual Operation mode.
ú To choose the touch probe functions, press the
TOUCH PROBE
soft key (2nd soft-key row). The TNC displays
additional soft keys — see table at right.
Function Soft key
Calibrate the effective length
(2nd soft-key row)
Calibrate the effective radius
(2nd soft-key row)
Basic rotation
Datum setting
Set the datum at a corner
Set the datum at a circle center
12.1 T
o
u
c
h
P
robe Cy
cles in the Manual Oper
ation Mode
Y
X
Z
F
F MAX
