Configuring the SMS-6000 Router
MiniXY Panel
The Mini XY Panel has 16 SELECT buttons to choose from the 16 sources
(inputs) and 16 destinations (outputs). They are shared between source
and destination selection. Here the appearance of the panel has been
modified for the SMS-6000 Configuration Editor to show two separate sets
of 16 buttons each, for sources and destinations.
The MiniXY Panel has limited functionality; it can only control the first 16
sources, the first 16 destinations, and the first 4 levels. To toggle control of
any of these items, click on the button representing it.
1. Enter Panel name if desired.
2. Default address appears, change if desired.
3. Click on Destinations or Sources to enable/disable for a total of 16
Destinations and Sources.
Destinations, Sources, and Levels are set by the configuration done in
the Level, Source, and Dest menus.
4. Use drop-down combobox to assign
NOTE:
Joystick Information can be entered at this point. The Joystick window is
the same for several panels. Please refer to the
this document.
5. Select
OK
or
CANCEL
to Continue.

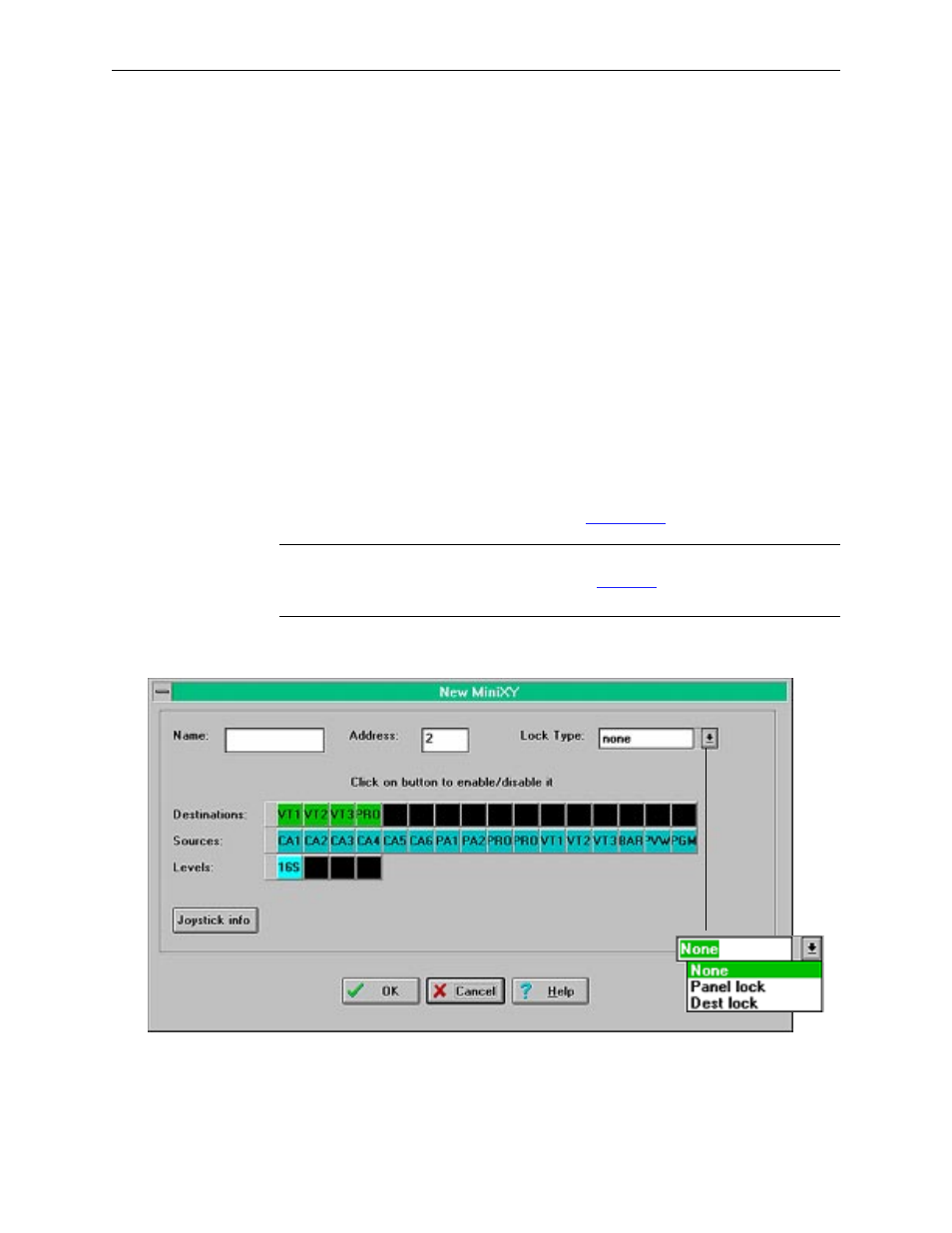

Figure 3-14. Mini XY Panel Window
