English-29

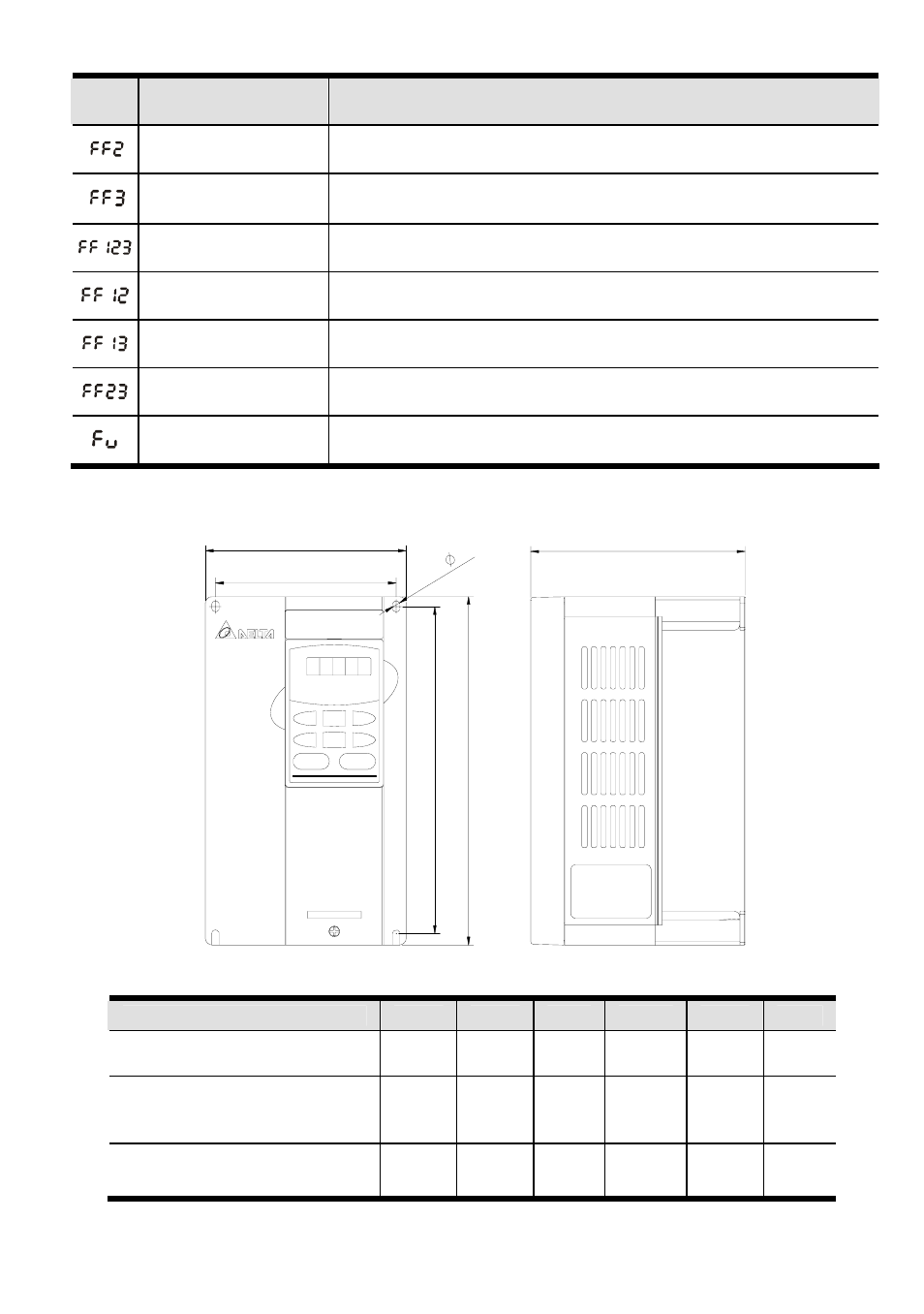

Fault
Name
Fault Descriptions Corrective Actions
Fan 2 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Fan 3 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Fan 1, 2, 3 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Fan 1, 2 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Fan 1, 3 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Fan 2, 3 fault
(150~300HP) Remove any foreign objects on the heatsinks and check for
possible dirty heat sink fins.
Gate drive low
voltage protect
Return to the factory.
Dimensions are in mm [inch]
B
D
C
E
A
F
Model Name A B C D E F
007F23A/43A, 015F23A/43A,
022F23A/43A, 037F23A/43A 150.0
[5.91]
260.0
[10.24]
160.2
[6.31] 135.0
[5.32] 244.3
[9.63] 6.5
[0.26]
055F23A/43B, 075F23A/43B,
110F23A/43A, 150F43A 200.0
[7.88] 323.0
[12.72]
183.2
[7.22] 185.6
[7.31] 303.0
[11.93]
7.0
[0.28]
150F23A, 185F23A/43A,
220F23A/43A, 300F43A 250.0
[9.84] 403.8
[15.90]
205.4
[8.08] 226.0
[8.90] 384.0
[15.12]
10.0
[0.39]
