Unit:mm – Delta Electronics AC Drive VFD-F Series User Manual
Page 10
English-10
150HP (VFD1100F43A)
P OWER
IM
3
MOTOR
V/T2
S/L2
R/L1
+2
+1
T/L3
U/T1
W/T3
150 HP to 215 HP
(VFD1100F43C, VFD1320F43A, VFD1600F43A)
POWER
DC(+)
IM
MOTOR
DC(-)
3
V/T2
S/L2
R/L1
+2
T/L3
+1
U/T1
W/T3

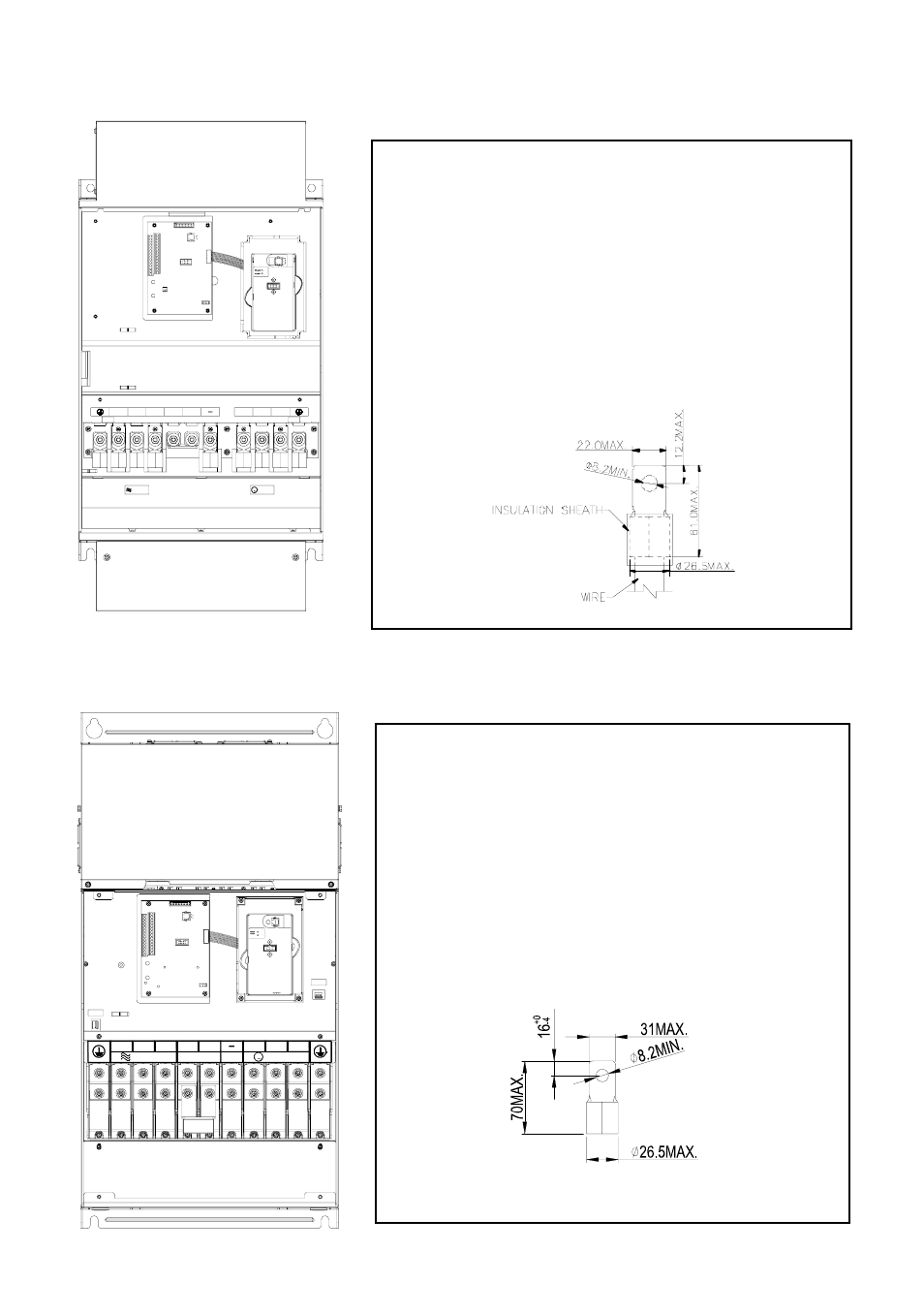

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 80kgf-cm (69 in-lbf)
Wire Gauge: 300 MCM
Wire Type: Stranded copper only, 75°C
NOTE: It needs following additional terminal when
wiring, and add insulation sheath on position where
following figure shows.
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 300kgf-cm (260 in-lbf)
Wire Gauge: 1/0 AWG*2-300 MCM*2
Wire Type: Stranded copper only, 75°C
NOTE: It needs following additional terminal when
wiring. The additional terminal dimension should
comply with the following figure.
UNIT:mm
