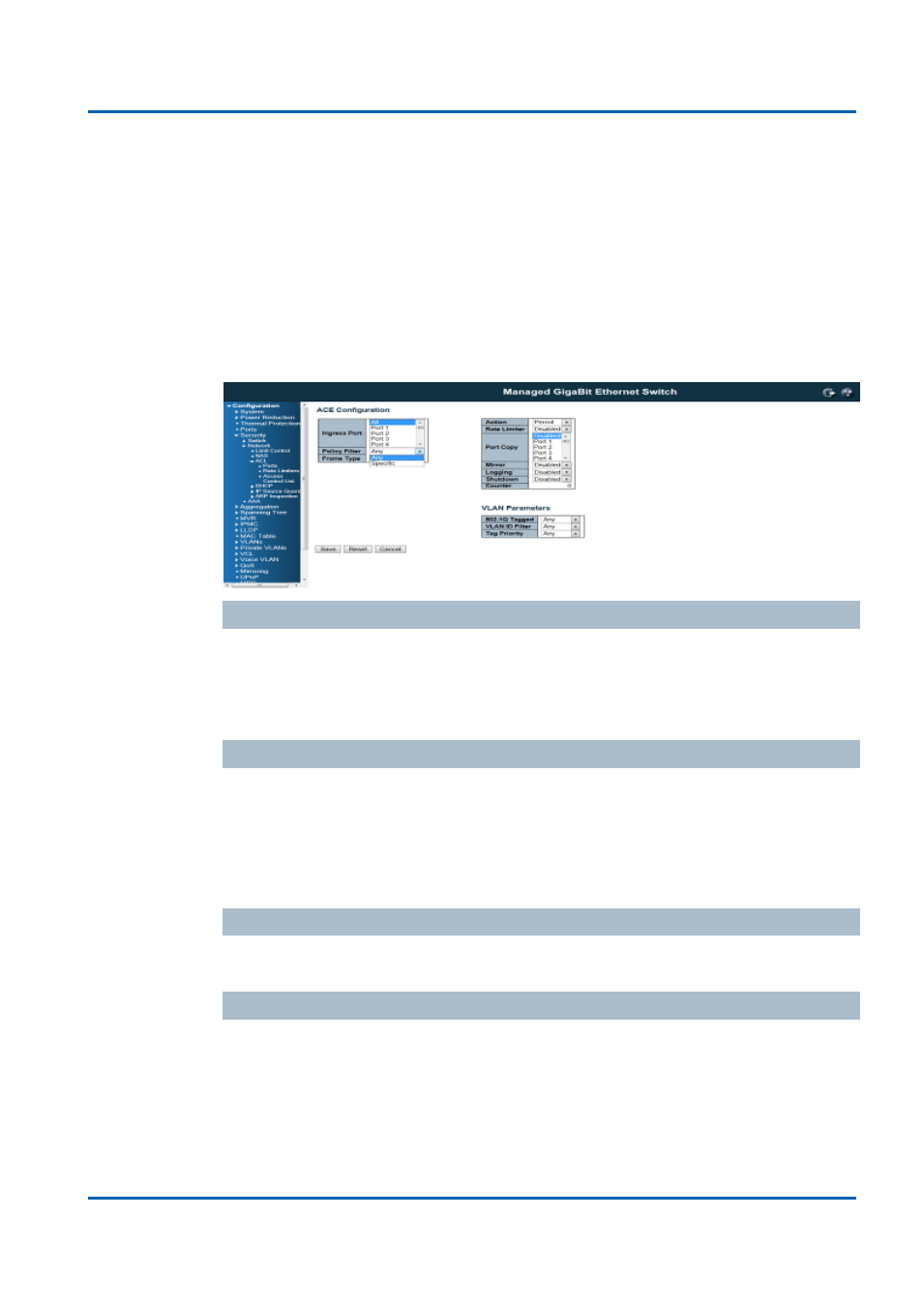

ACE Configuration
Configure an ACE (Access Control Entry) on this page.
An ACE consists of several parameters. These parameters vary according to the
frame type that you select. First select the ingress port for the ACE, and then select
the frame type. Different parameter options are displayed depending on the frame
type selected.
A frame that hits this ACE matches the configuration that is defined here.
Ingress Port
Select the ingress port for which this ACE applies.
All: The ACE applies to all port.
Port n: The ACE applies to this port number, where n is the number of the switch
port. You can select one port or select multiple ports for the entry.
Policy Filter
Specify the policy number filter for this ACE. The policy ID should be the same when
you want apply it to the ACL or Port.
Any: No policy filter is specified. (policy filter status is "don't-care".)
Specific: If you want to filter a specific policy with this ACE, choose this value. Two
field for entering an policy value and bitmask appears.
Policy Value
When "Specific" is selected for the policy filter, you can enter a specific policy value.
The allowed range is 0 to 255.
Policy Bitmask
When "Specific" is selected for the policy filter, you can enter a specific policy
bitmask. The allowed range is 0x0 to 0xff.
Select the switch to which this ACE applies. This parameter is reserved to the
Stacking model. If the switch doesn't support stacking, the parameter will not display
here.
