Chapter 3: Featuring Configuration – Web UI
Featuring Configuration – Web UI
NGSME16T2H User Manual | 171

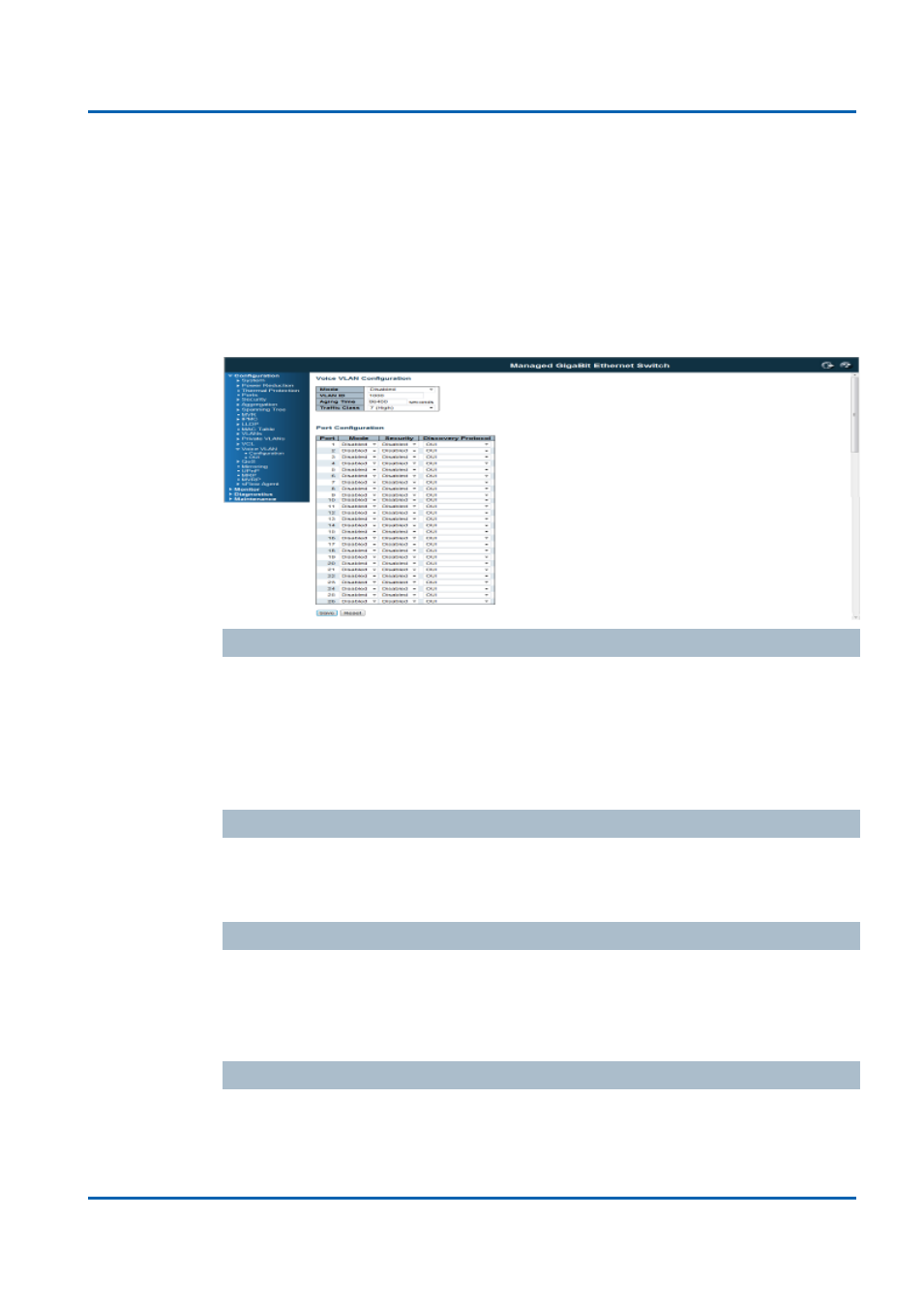

Voice VLAN Configuration
Voice VLAN / Configuration
The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then
the switch can classify and schedule network traffic. It is recommended that there be
two VLANs on a port - one for voice, one for data. Before connecting the IP device to
the switch, the IP phone should configure the voice VLAND ID correctly. It should be
configured through its own GUI.
Mode
Indicates the Voice VLAN mode operation. We must disable MSTP feature before
we enable Voice VLAN. It can avoid the conflict of ingress filtering. Possible modes
are:
Enabled: Enable Voice VLAN mode operation.
Disabled: Disable Voice VLAN mode operation.
VLAN ID
Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and
cannot equal each port PVID. It is a conflict in configuration if the value equals
management VID, MVR VID, PVID etc. The allowed range is 1 to 4095.
Aging Time
Indicates the Voice VLAN secure learning aging time. The allowed range is 10 to
1000000 seconds. It is used when security mode or auto detect mode is enabled. In
other cases, it will be based on hardware aging time. The actual aging time will be
situated between the [age time; 2 * age time] interval.
Traffic Class
Indicates the Voice VLAN traffic class. All traffic on the Voice VLAN will apply this
class.
