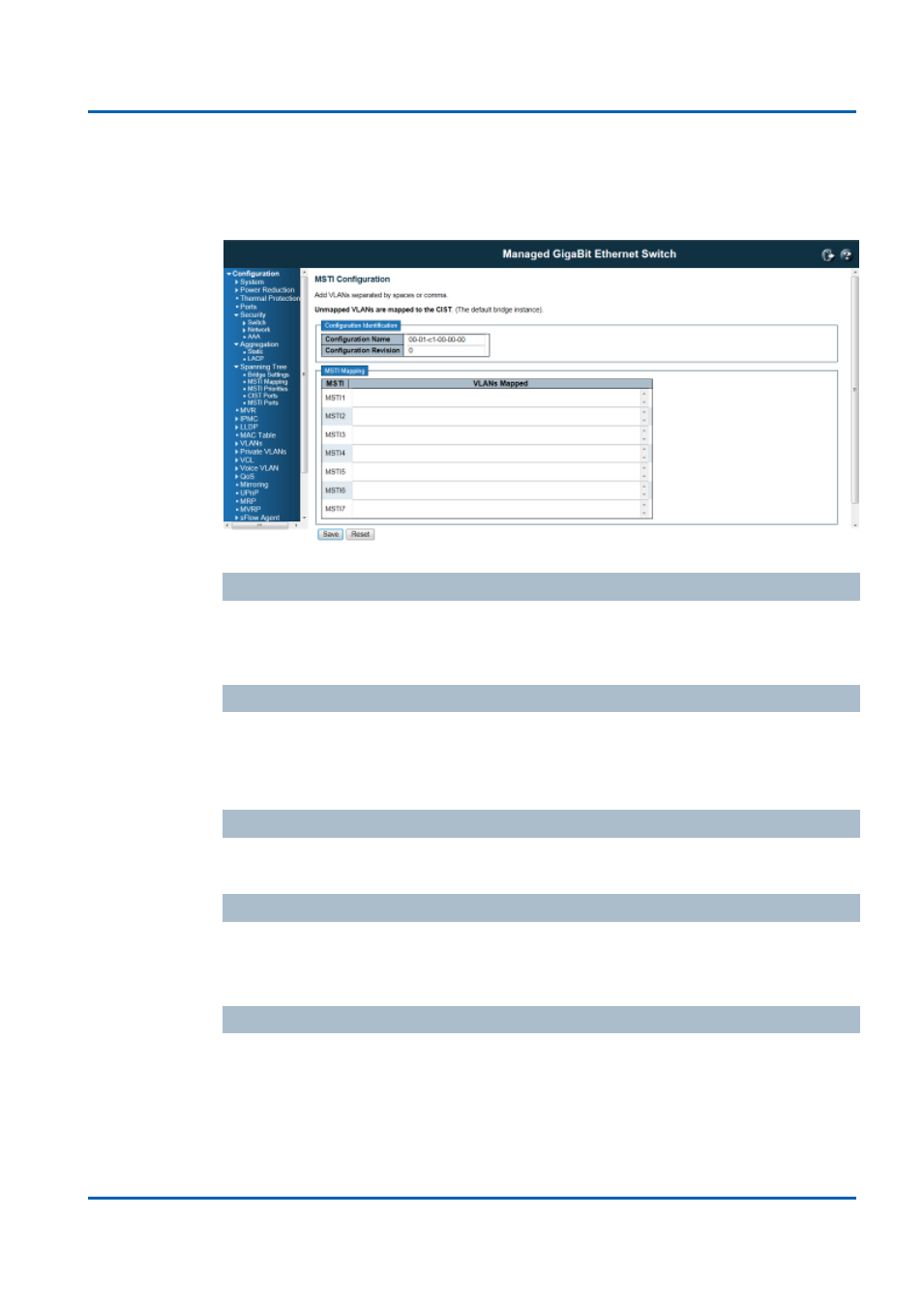

Spanning Tree / MSTI Mapping
This page allows the user to inspect the current STP MSTI bridge instance priority
configurations, and possibly change them as well.
Configuration Identification
Configuration Name
The name identifying the VLAN to MSTI mapping. Bridges must share the name and
revision (see below), as well as the VLAN-to-MSTI mapping configuration in order to
share spanning trees for MSTI's (Intra-region). The name is at most 32 characters.
Configuration Revision
The revision of the MSTI configuration named above. This must be an integer
between 0 and 65535.
MSTI Mapping
MSTI
The bridge instance. The CIST is not available for explicit mapping, as it will receive
the VLANs not explicitly mapped.
VLANs Mapped
The list of VLANs mapped to the MSTI. The VLANs must be separated with comma
and/or space. A VLAN can only be mapped to oneMSTI. An unused MSTI should
just be left empty. (I.e. not having any VLANs mapped to it.)
Buttons
Save: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved
values.
