Chapter 5: Monitor, Diagnostic, Maintenance
Monitor, Diagnostic, Maintenance
NGSME16T2H User Manual | 351

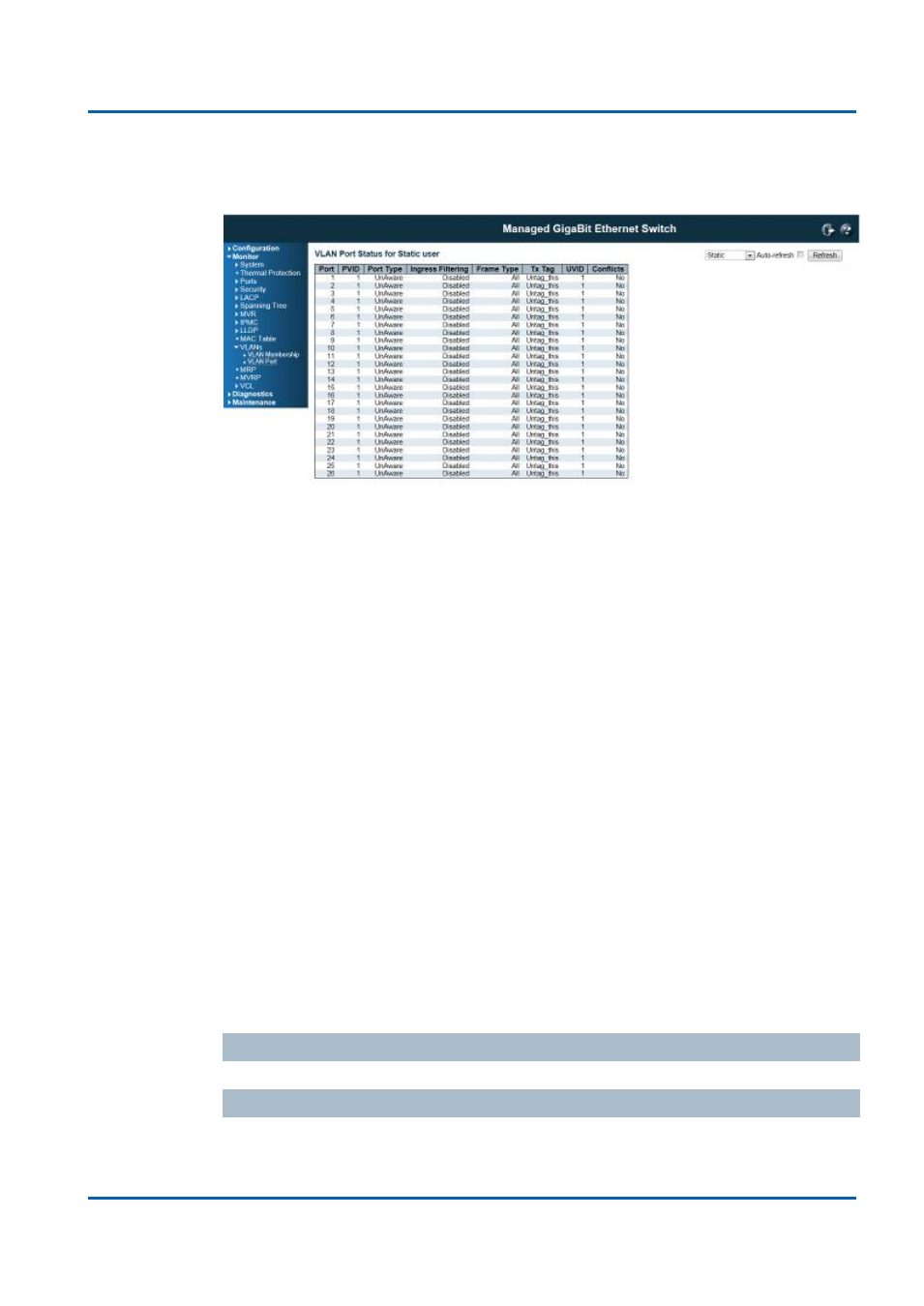

VLAN Port Status
This page provides VLAN Port Status.
VLAN USER
VLAN User module uses services of the VLAN management functionality to
configure VLAN memberships and VLAN port configuration such as PVID, UVID.
Currently we support following VLAN User types:
CLI/Web/SNMP: These are referred to as static.
NAS: NAS provides port-based authentication, which involves communications
between a Supplicant, Authenticator, and an Authentication Server.
MVRP: Multiple VLAN Registration Protocol (MVRP) allows dynamic registration
and deregistration of VLANs on ports on a VLAN bridged network.
Voice VLAN : Voice VLAN is a VLAN configured specially for voice traffic typically
originating from IP phones.
MVR: MVR is used to eliminate the need to duplicate multicast traffic for subscribers
in each VLAN. Multicast traffic for all channels is sent only on a single (multicast)
VLAN.
MSTP: The 802.1s Multiple Spanning Tree protocol (MSTP) uses VLANs to create
multiple spanning trees in a network, which significantly improves network resource
utilization while maintaining a loop-free environment.
Port
The logical port for the settings contained in the same row.
PVID
Shows the VLAN identifier for that port. The allowed values are 1 through 4095. The
default value is 1.
