MVR Group Table

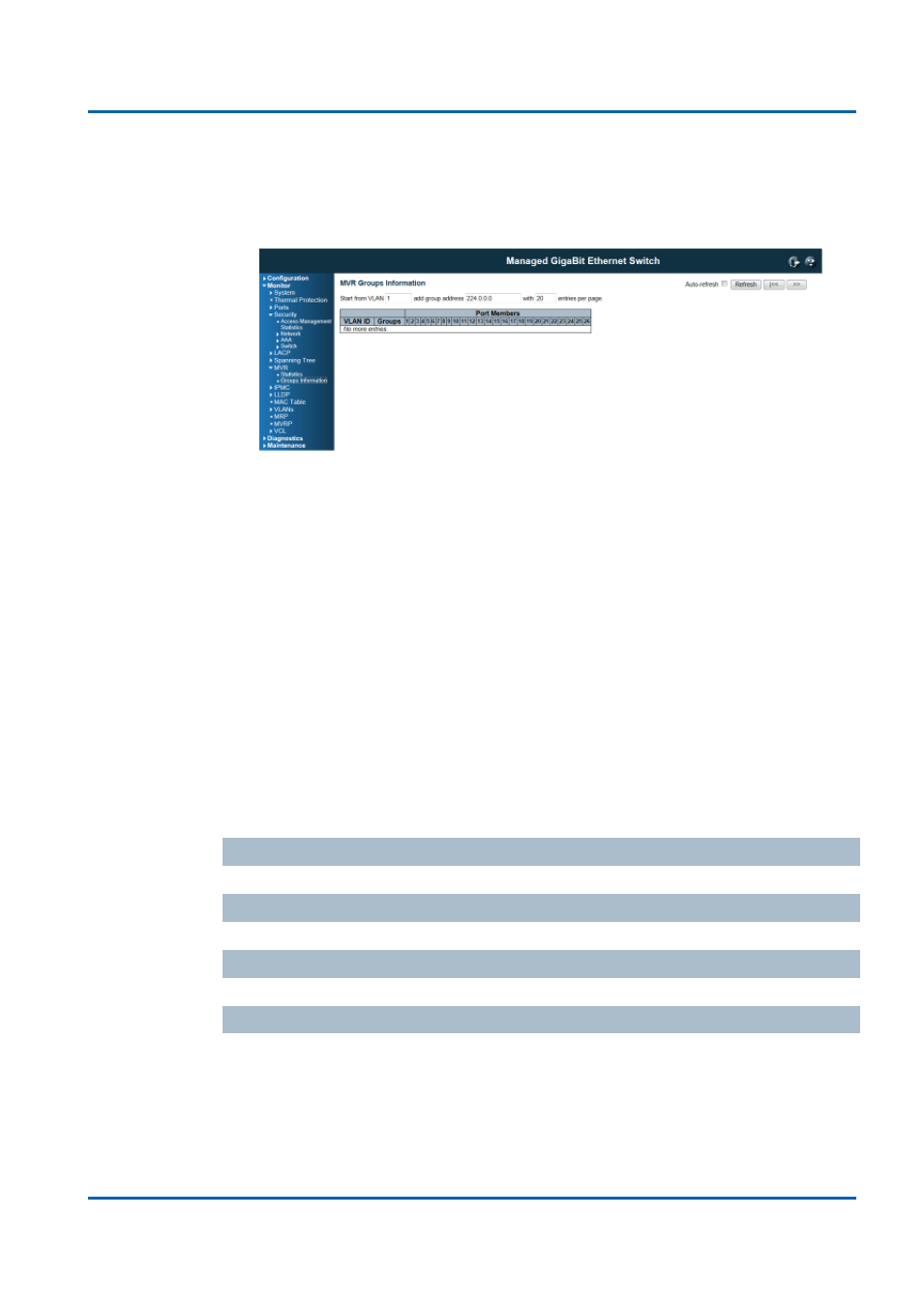

Entries in the MVR Group Table are shown on this page. The MVR Group Table is
sorted first by VLAN ID, and then by group.
Navigating the MVR Group Table
Each page shows up to 99 entries from the MVR Group table, default being 20,
selected through the "entries per page" input field. When first visited, the web page
will show the first 20 entries from the beginning of the MVR Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting
point in the MVR Group Table. Clicking the Refresh button will update the displayed
table starting from that or the closest next MVR Group Table match. In addition, the
two input fields will - upon a Refresh button click - assume the value of the first
displayed entry, allowing for continuous refresh with the same start address.
The >> will use the last entry of the currently displayed table as a basis for the next
lookup. When the end is reached the text "No more entries" is shown in the
displayed table. Use the |<< button to start over.
MVR Group Table Columns
VLAN ID
VLAN ID of the group.
Groups
Group ID of the group displayed.
Port Members
Ports under this group.
Buttons
Auto-refresh: Check this box to enable an automatic refresh of the page at regular
intervals.
Refresh: Refreshes the displayed table starting from the input fields.
|<<: Updates the table starting from the first entry in the MVR Group Table.
>>: Updates the table, starting with the entry after the last entry currently displayed.
