NOTE:
If the air filter tray is difficult to remove, you can use the M3 retention screw
at the bottom of the fan unit as a gripping point.
3. The air filter is a black, washable fabric that adheres to the outer grill. Carefully peel
the air filter away from the outer grill.
4. Wash the filter in a solution of warm water and mild detergent.
5. Rinse thoroughly in water and allow to dry completely before replacing the filter
in the fan unit.
WARNING: To prevent electrical shock and damage to the unit,
do not install a wet air filter into the SDM-9600 chassis.
6. When the air filter is dry, press it back into place on the outer grill of the air filter tray.
7. Slide the air filter tray into the SDM-9600 chassis, along the guide rail provided.
8. Push the air filter tray all the way back into place, so that its front face is flush with
the right rack bracket of the SDM-9600 chassis.

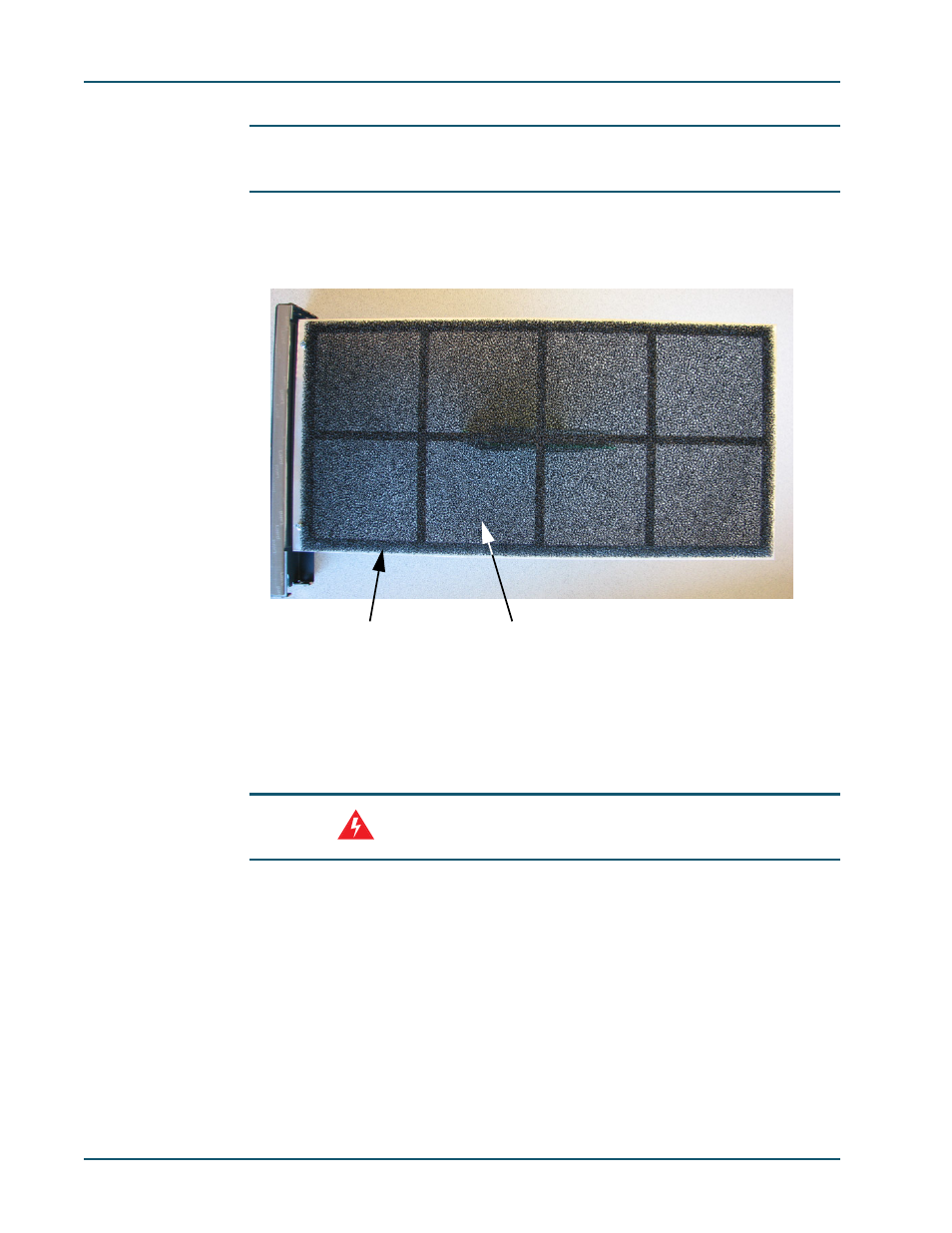

Figure 4-9: Air Filter and Outer Grill
Air filter Outer grill
