- 31 -
PS-8810
DIGITAL SIGNAL PROCESSOR

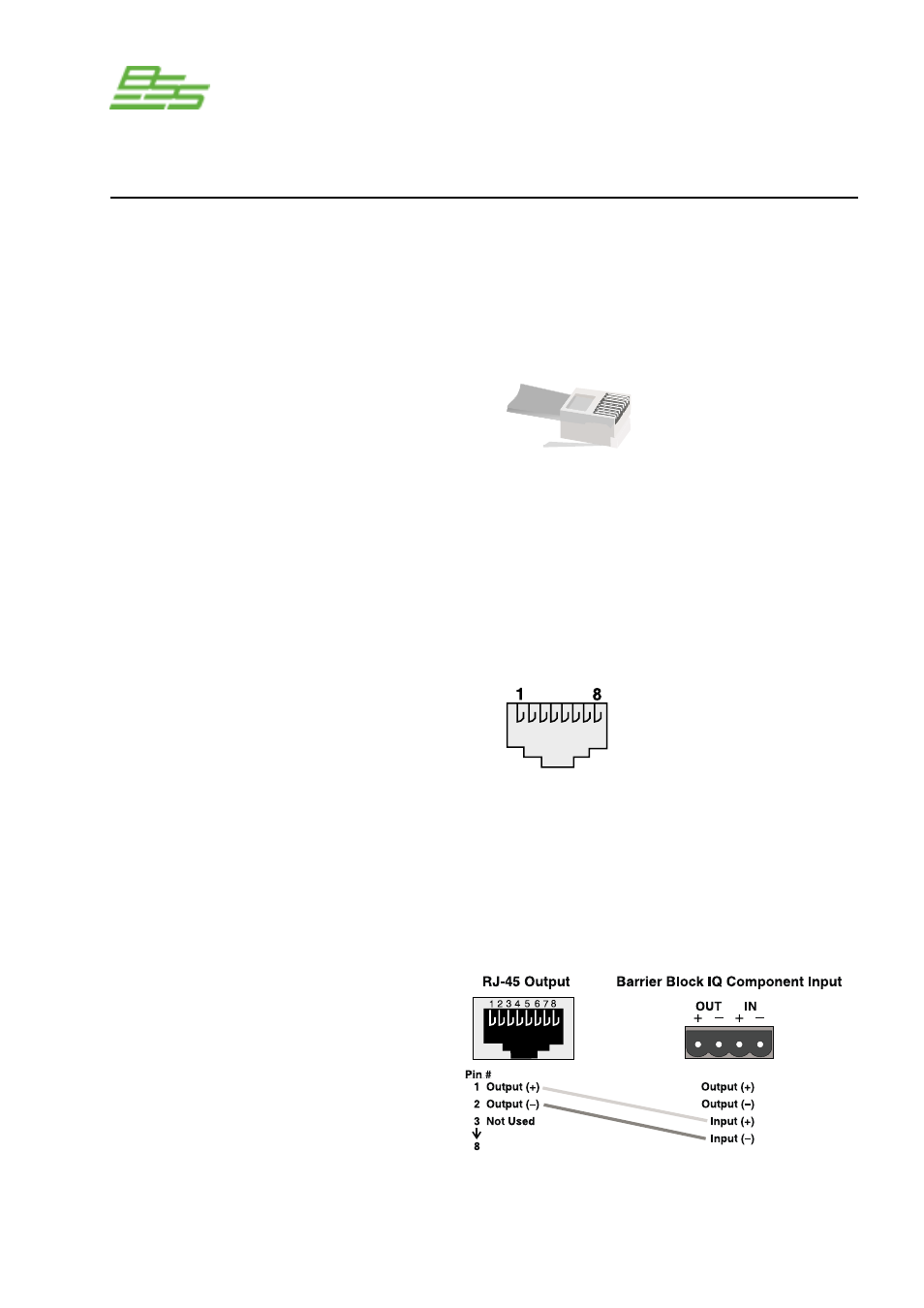

Three different types of connectors are used for IQ Loop wiring on
IQ components. These include DIN connectors, RJ-45 connectors,
and removable barrier strip plugs. Connection details for these
differing types of connectors are found in the following pages.
The BSS PS-8810 uses RJ-45 connectors that accept plugs like the
one shown below.
RJ-45 Plug
When wiring RJ-45 connectors, it is good practice to follow the
EIA/TIA 568B protocol for RJ-45 connector cable. This protocol
assigns wire colours as follows:
1 white-orange 5 white-blue
2 orange
6 green
3 white-green 7 white-brown
4 blue 8 brown
RJ-45 Pin Numbers
When attaching RJ-45 connectors to cable, be sure to use the
appropriate crimping tool and verify that the connector is
properly seated into the tool or damage will result.
The following examples show how to connect the BSS PS-8810
to other IQ components on the IQ Loop:
RJ-45 Output to Barrier Block Input
Connections IQ Loop
IQ Component
Connections
