One of the units must be set as the ‘Master’ for the IQ Loop, this is
done by setting its ‘IQ interface’ LED to light using the IQWin
software.
In order to use more than one PC with the IQ loop the IQNET
server software must be used, please refer to the IQNET Server help
for more information.
The IQ components in a IQ Loop are wired sequentially. The loop
begins and ends with the IQ interface. The output of one IQ
component 'loops' to the input of the next and so on as shown
below.

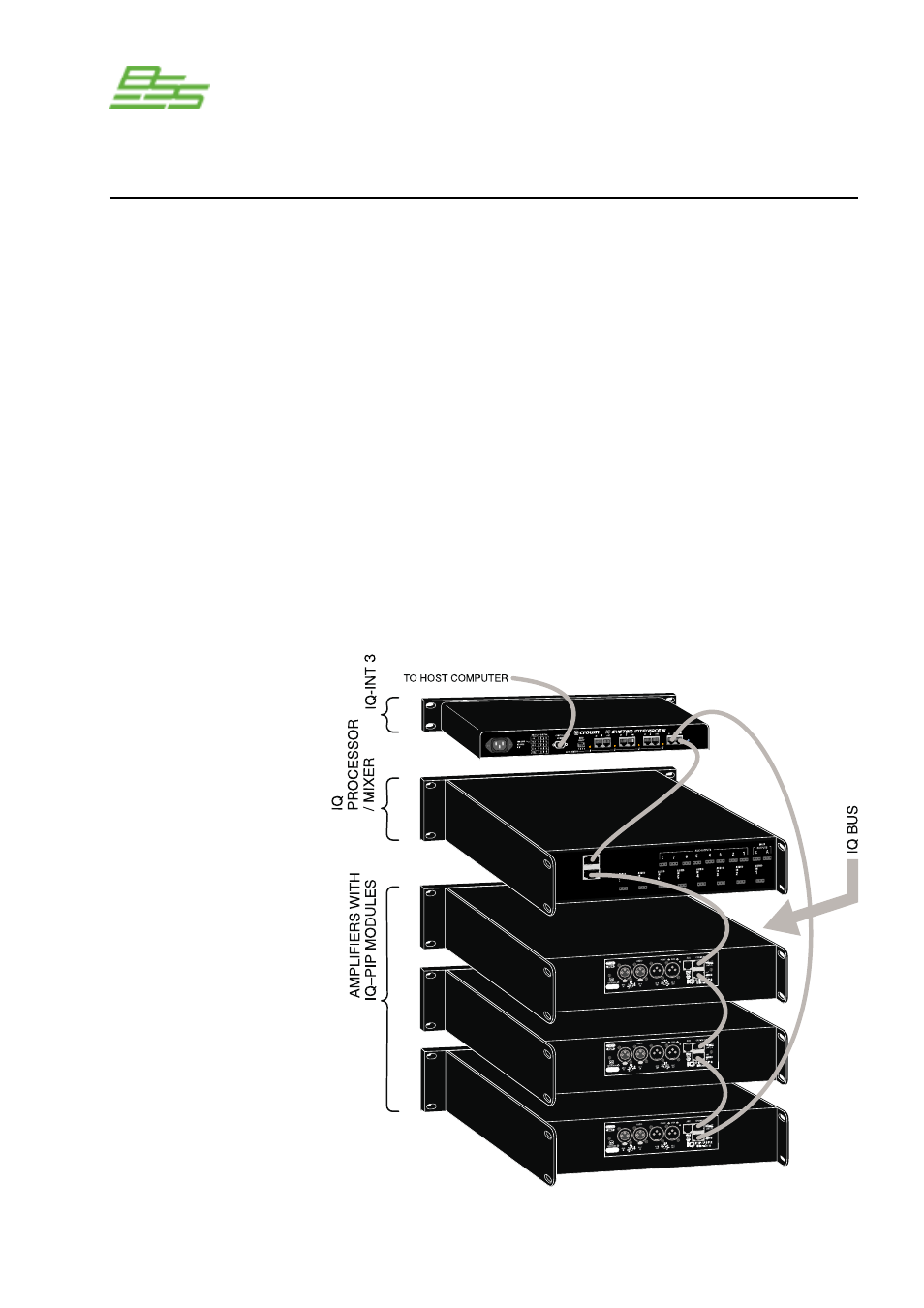

IQ Loop wiring ‘Loop’ from Output to Input of each IQ component
Connections IQ Loop
PS-8810 in an IQ
Loop system
