- 19 -
PS-8810
DIGITAL SIGNAL PROCESSOR
Three-terminal removable barrier block connectors are provided
on the rear panel for balanced analogue audio input.
Input Selector
Each input has a three-position “M L P” selector switch for mic
level, line level, or mic level with phantom power.
• Select the M position for microphone signal levels up to
+7dBu (0dbu=0.775 volts).
• Select the L position for line level signals up to +32dBu
• Select the P position for mic inputs that require +24VDC
‘phantom’ power.
Audio Input Gain Control
Each analogue audio input channel has a screwdriver-set,
calibrated gain potentiometer for adjusting the input gain to the
input signal level. These can be used to compensate for different
microphone sensitivities. Control range is from –12dB to +20dB.
Main and AUX Audio Outputs
A 3-pin removable barrier block plug is provided on the rear
panel for each of the 10 analogue audio outputs (Main Outs 1 & 2
and Aux Outs 1-8).

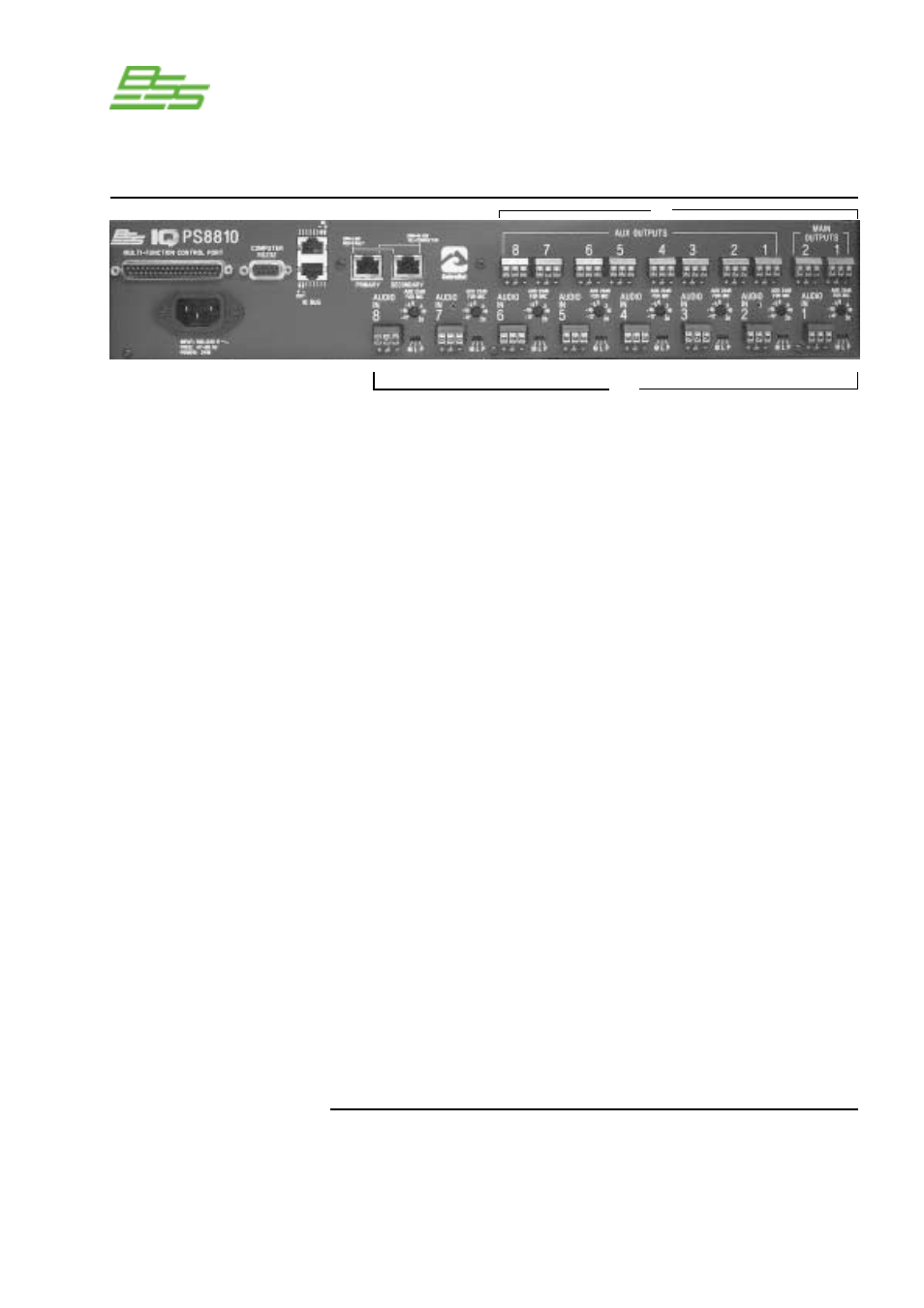

7.0 Rear panel
A: Audio Inputs
B: Audio Outputs
A
B C D E F
G
