14. OIL DRAIN INSTALLATION (OIL-FED UNITS
ONLy), cont'd
H.
Locate the oil drain hose previously attached to
the barb fitting on the bottom of the supercharger.
Trim the hose to length and secure to the barbed
drain fitting on the front of the oil pan with an
included worm gear clamp.
I.
Resecure the wiring harness running in front of
the oil pan, using the included brass spacers to
relocate the harness downward for drain hose
clearance. (See Fig. 14I)

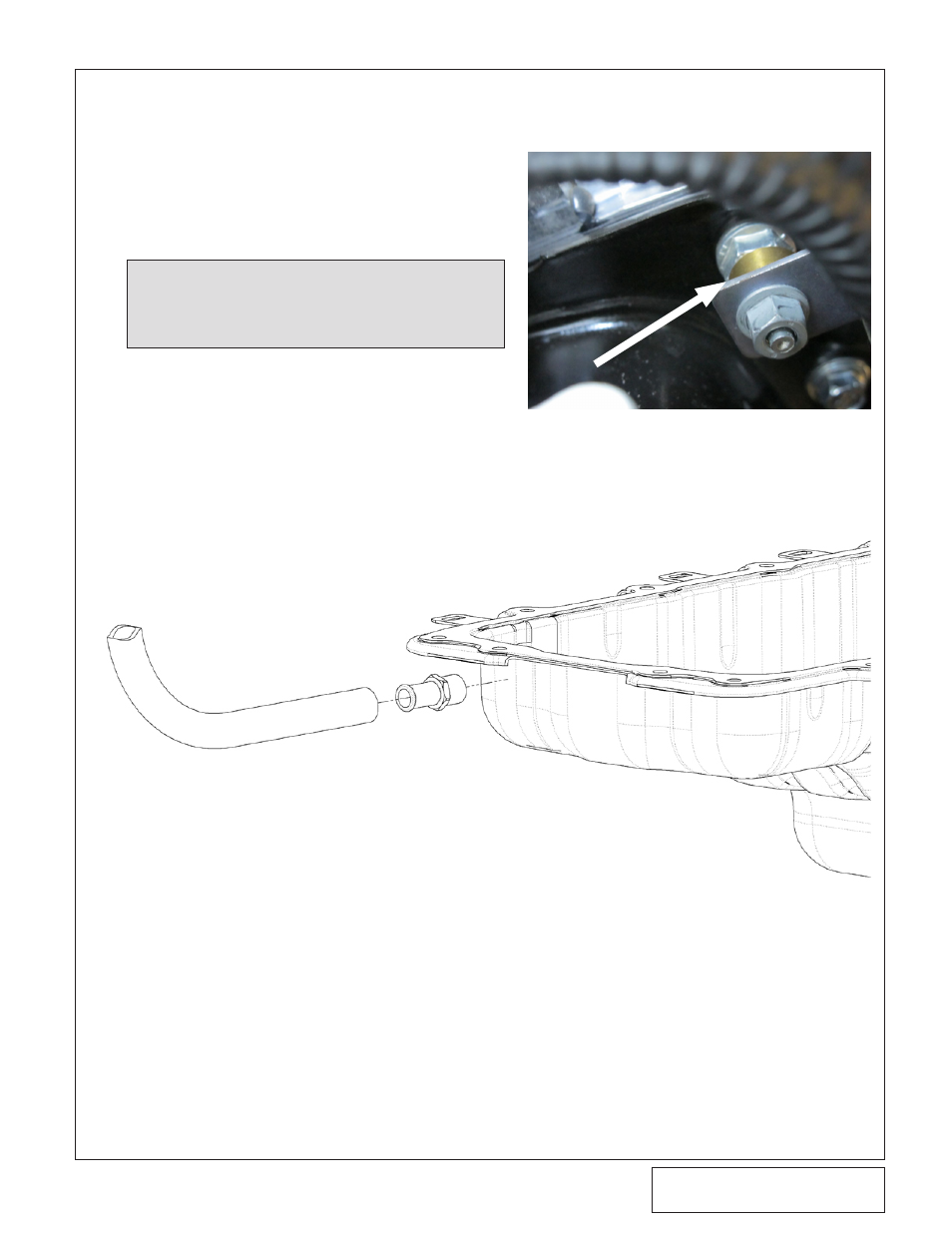

Fig. 14I: Wiring Harness Spacer
NOTE: Use extra care to secure the drain hose away
from moving parts and sharp edges. It is impor-
tant that the hose travels downhill for its entire
length.
Fig. 14-1: Oil Drain Fitting Placement
