Once all trimming is complete, reinstall the front

bumper cover:

Hang the bumper cover from the mounting

tabs just inboard of the headlights, making

sure it rests on top of the black plastic cover

above the grille and radiator.
Reconnect the driving lights.

Reconnect the parking lights.

Spread the sides of the bumper apart and

around the support structure in front of the

front wheels, sandwiching the splash shields

between the cover and the structure.
Reconnect the bumper cover to the bottom

edges of the front fenders by pressing inward

until each of the clips (3 per side) snaps into

place.
Reinstall the four (4) OEM 7mm-headed fas-

teners forward of the front wheels (2 per side).

(See Fig. 12D-1)
Reinstall the two(2) 10mm-headed fasteners

near the bumper cover upper mounting tabs,

just inboard of each headlight (1 per side).

(See Fig. 12D-2)
Reinstall the remaining four (4) plastic pins

securing the black plastic cover above the

grille and radiator.

12. BUMPER COVER/FRONT FASCIA MODIFICATION

AND REINSTALLATION, cont'd

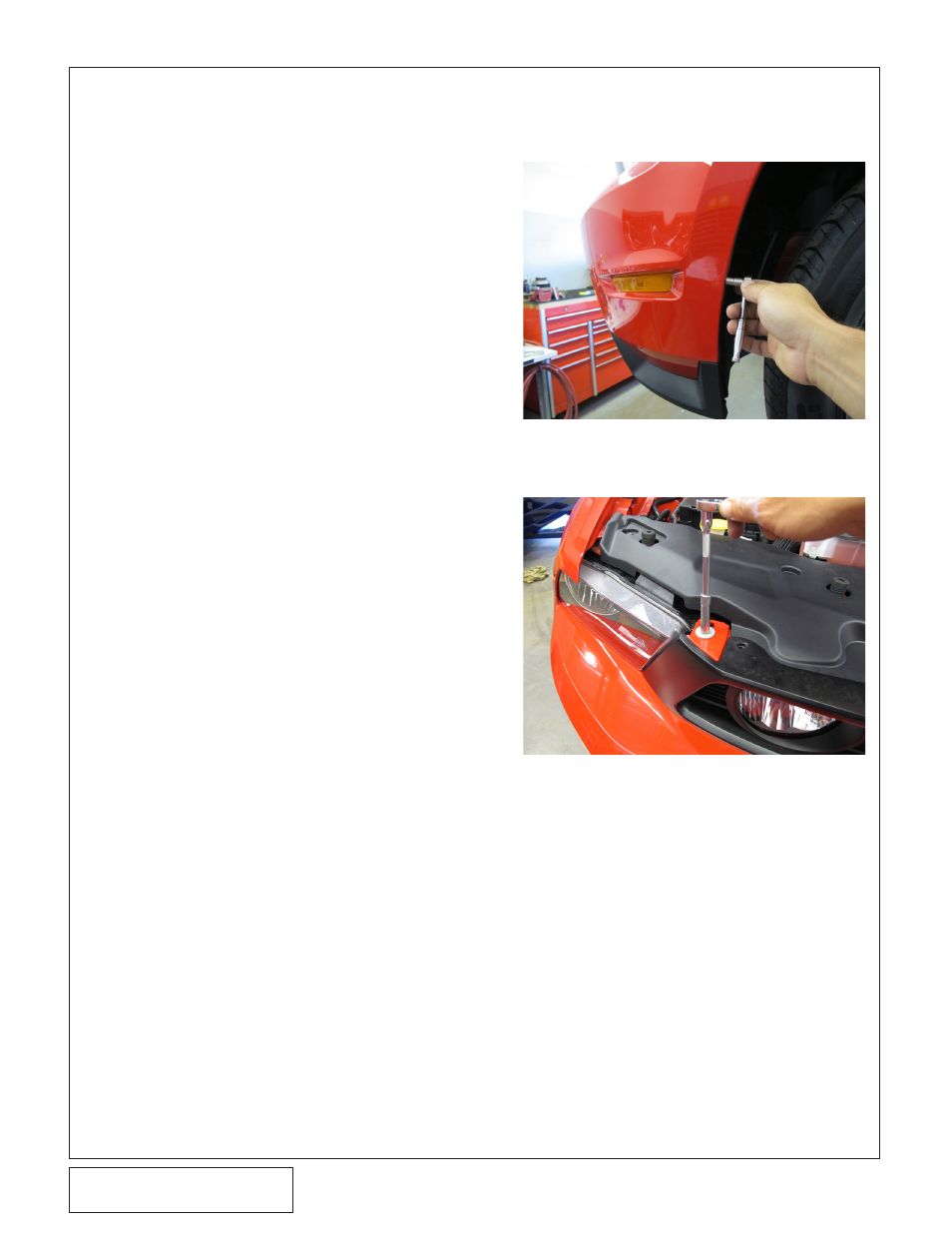

Fig. 12D-1: Splash Shields

Fig. 12D-2: Top Edge Fasteners
