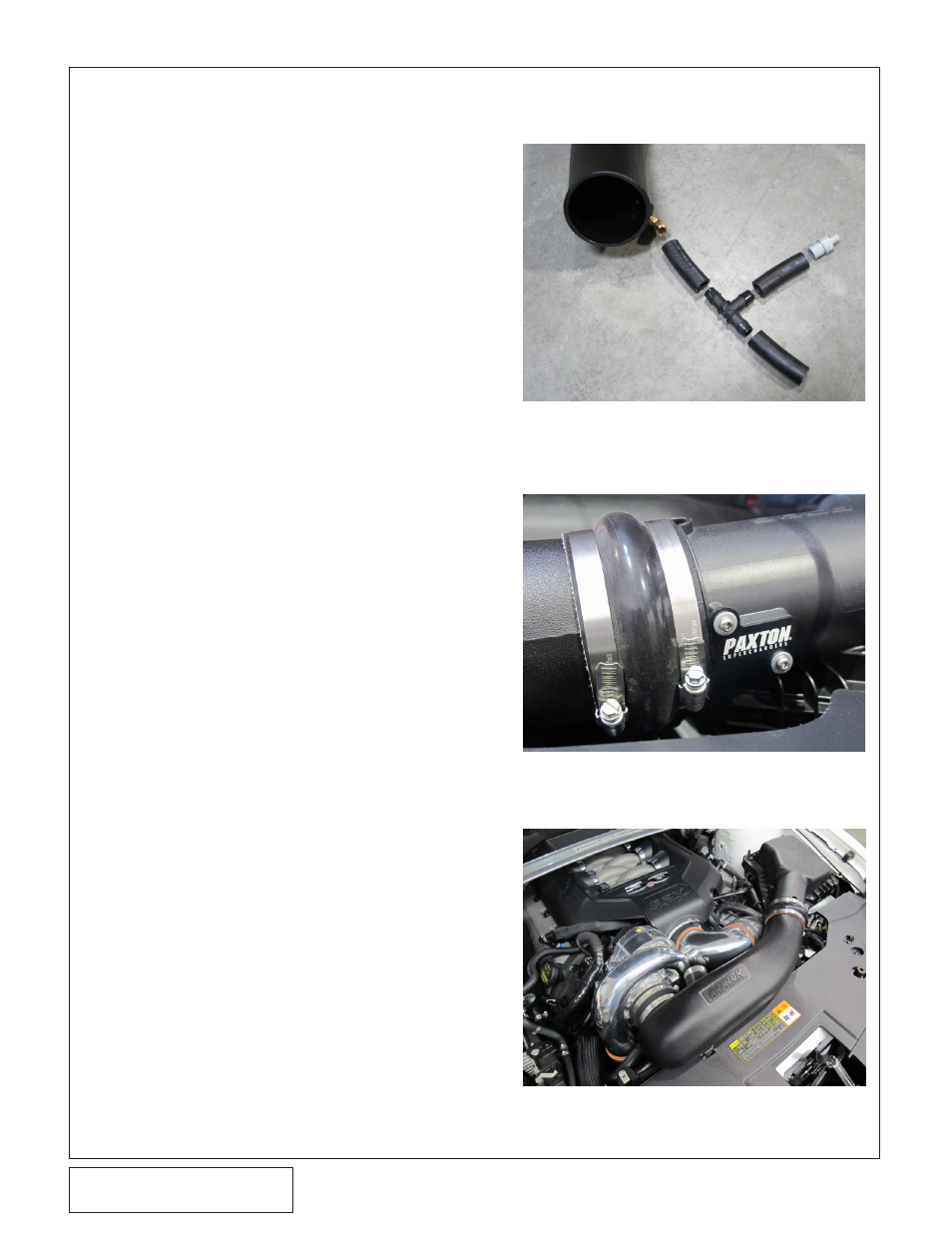

Fig. 11K: Complete Air Inlet Assembly

Automatic Transmission Only: Locate the sup-

plied grey PCV valve (same as the one used for

the passenger side PCV hose). Insert the large

end into a section of the supplied 5/8" PCV hose.

Insert the small end into the 3/8" vacuum hose

from which the quick-release fitting was previously

cut. Cut the open end of the new 5/8" PCV hose

to length and connect it to the open leg of the 5/8

hose barb TEE fitting in the new driver side PCV

hose. (See Fig. 11F)

Remove the lid from the OEM airbox and replace

the OEM paper filter element with the included

high-flow panel filter element. Replace the lid.

Reinstall the OEM airbox snorkel and airbox

assembly, securing the snorkel to the fan shroud

stud screw with the OEM 10mm nut and the air-

box to the inner fender with the OEM 10mm-head-

ed fastener.

Connect the inlet duct to the OEM airbox with the

Ø4" bump hose. Use the included Ø3.75" x 1"

long silicone ring to adapt the airbox fitting up to

Ø4" to fit inside the bump hose. Secure with two

#64 worm gear clamps. (See Fig. 11I)

Seal the OEM MAF element port on the airbox

with the black anodized MAF port cover and

secure with the OEM MAF retaining screws and

the included washers. (See Fig. 11I)

The completed assembly is shown in Figure 11K.

11. AIR INLET ASSEMBLy INSTALLATION, cont'd

Fig. 11I: Air Inlet to Airbox Connection; MAF

Port Cover

Fig. 11F: (Automatic Transmission Only) Driver

Side PCV Hose Modification (Hose Segments

Cut for Illustration Only)
