8. ByPASS VALVE CONNECTION

Manual Transmission Only:

Connect the included length of 3/16" vacuum

hose to the fitting on the bypass valve. Route

the hose away from moving parts and sharp

edges along the driver side fuel rail toward the

back of the engine.
Locate the OEM 3/8" vacuum hose running to

the vacuum brake booster. Remove the split

loom from the hose and cut the hose in the

approximate location shown behind the driver

side fuel rail. (See Fig. 8A-1)
Place the larger ends of the included 3/8" x

3/8" x 1/4" TEE fitting into the cut ends of the

vacuum booster hose. Point the smaller fitting

forward. (See Fig. 8A-2)
Trim the 3/16" hose from the bypass valve to

length and insert it onto the open fitting on the

TEE. The hose may be a tight fit. (See Fig.

8A-3)
Reinstall the OEM split loom in its approxi-

mate original location. (See Fig. 8A-4)

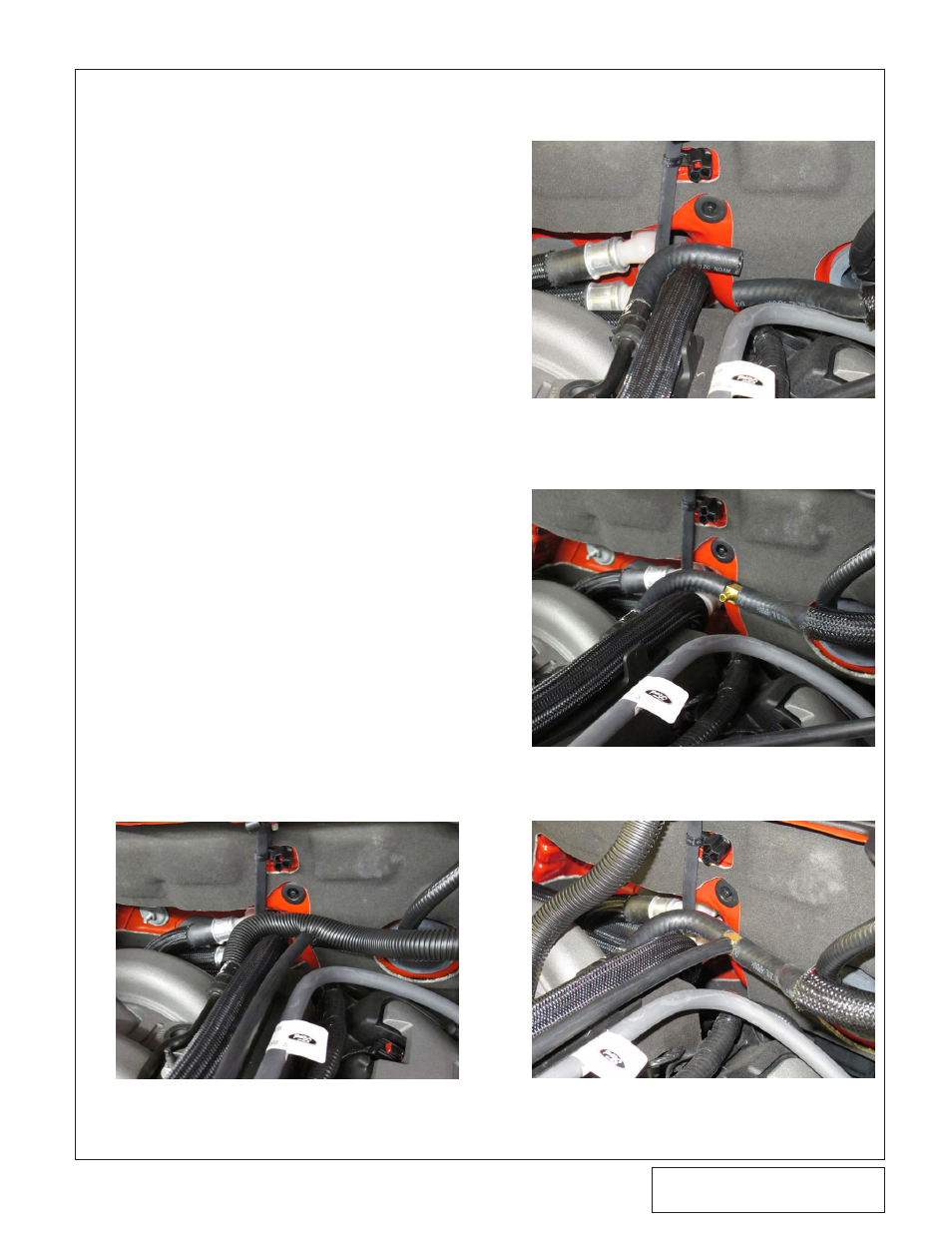

Fig. 8A-1: Vacuum Hose Cut

Fig. 8A-2: Vacuum TEE

Fig. 8A-3: Bypass Vacuum Hose

Fig. 8A-4: Vacuum Hose, Complete
