40
5. PCV SySTEM MODIFICATION, cont'd

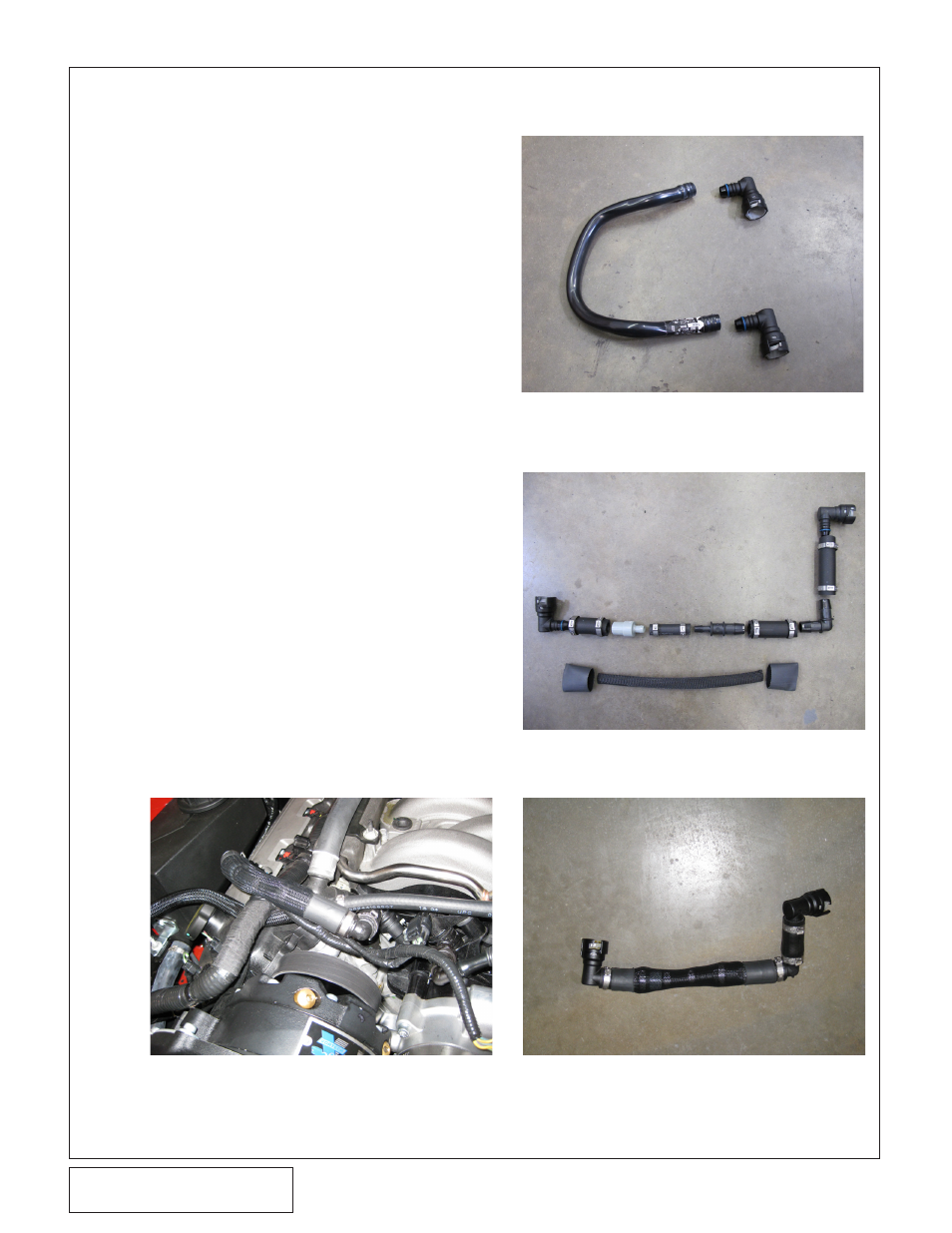

Fig. 5D-1: OEM Passenger Side PCV Hose
with fittings removed
D. Modify and reinstall the passenger side PCV hose
as follows:
Use a razor blade to carefully slit each end of a.
the plastic tube until it can be split away from
the barbed fittings inside. Take care not to
damage the fittings. (See Fig. 5D-1)
Locate the supplied pre-assembled 90° PCV b.
hose assembly.
Slide a #25.6 stepless clamp over each open c.
end of the 90° PCV hose assembly and insert
one of the previously-removed OEM 90°
quick-release fittings into each open end. Do
not secure the clamps at this time.
Orient the hoses and fittings as shown, test fit d.
to the engine to confirm end fitting clocking for
best fit, and secure the clamps. (See Fig.
5D-3)
Install the assembly as shown, routed under e.
the previously-installed small coolant hose,
with the end closest to the 90° plastic elbow
connecting to the intake manifold. Secure as
needed for clearance to the supercharger pul-
ley. (See Fig. 5D-4)
Fig. 5D-3: Modified Passenger Side PCV Hose Fig. 5D-4: Modified Passenger Side PCV Hose,
Installed
Fig. 5D-2
