3. ENGINE COOLING SySTEM MODIFICATION, cont'd
AK. Temporarily position the supplied fan module relo-
cation bracket in the location shown and mark the
position of the mounting hole. Remove the brack-
et and drill a 1/4" hole in the marked position.
(See Fig. 3AJ)
AL. Using a ¼” or 17/64” drill bit, enlarge the hole in
the fan shroud boss as shown in Fig. 3AK.
AM. Insert the fan module down into its approximate
mounting location as shown in Fig. 3AL. Slide the
relocation bracket into the position shown and
then rotate it up into its final position relative to
the module.

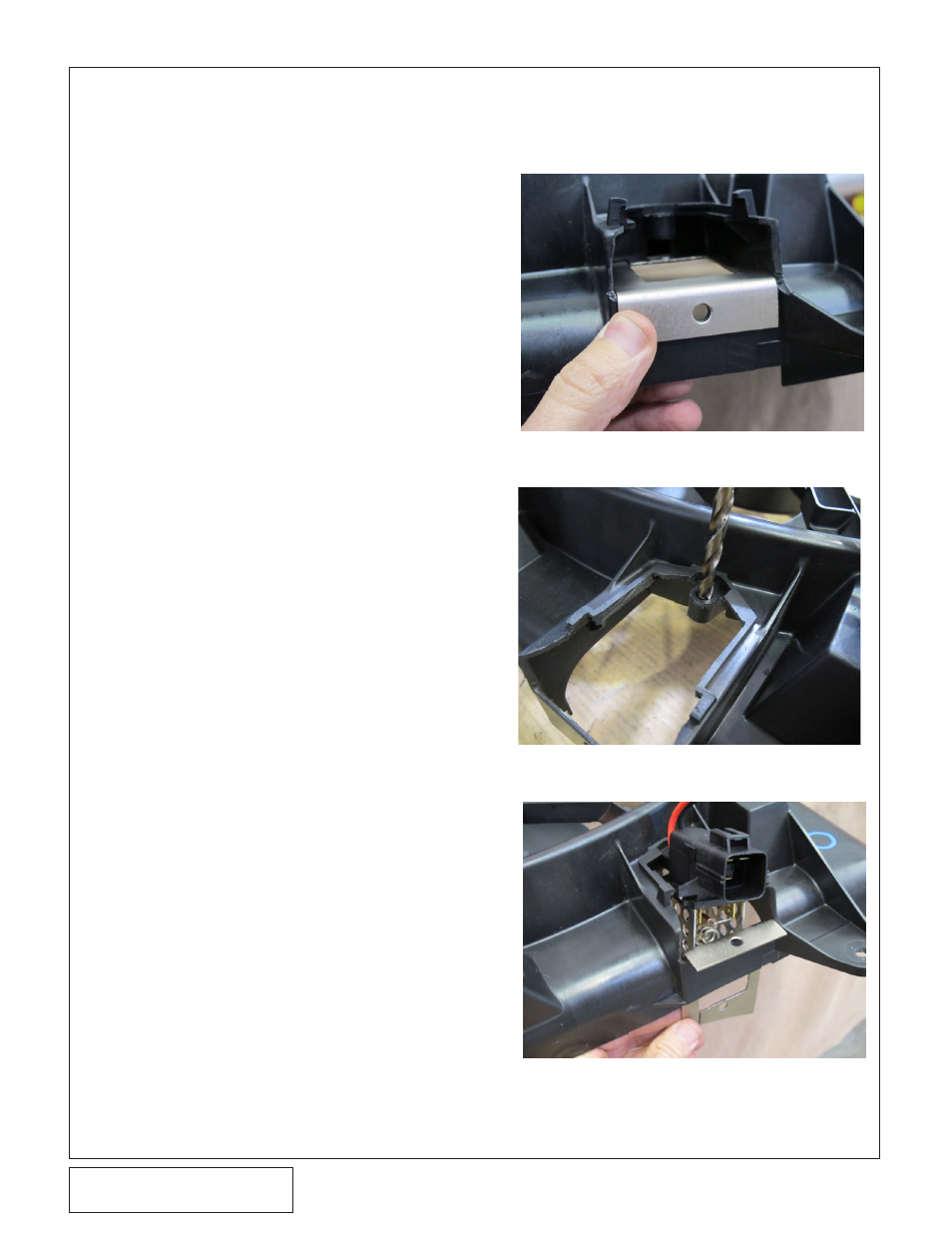

Fig. 3AJ: Fan Module Bracket Mounting Hole
Fig. 3AL: Fan Module Bracket Installation
Fig. 3AK
