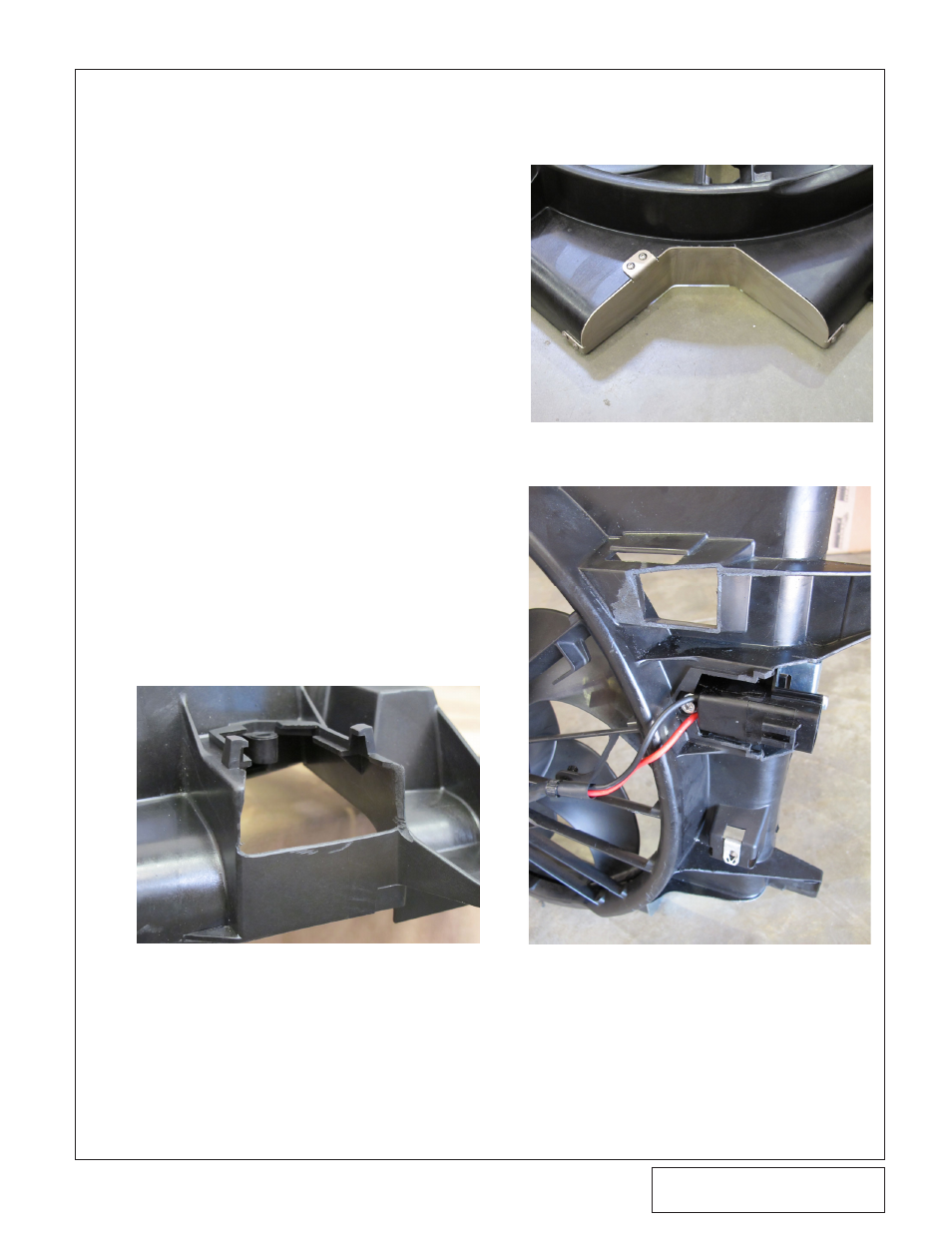

AG. Fasten the air dams to the fan shroud using the

included #6-32 button head screws and nylock

nuts, with the fastener heads to the outside. (See

Fig. 3AF)

AH. Cut away the boss just above the fan connector

as shown. Clearance cut the two ribs toward the

bottom of the shroud. (See Fig. 3AG)

AI.

Depress the two (2) tabs securing the electronic

module near the passenger side top corner of the

fan shroud. Slide the module to the passenger

side and pull it out of the shroud.

AJ. Trim the fan shroud in the fan module mounting

location as shown. (See Fig. 3AI)

Fig. 3AG

Fig. 3AI: Fan Module Mounting Location

Trimming

Fig. 3AF: Air Dam Installation

3. ENGINE COOLING SySTEM MODIFICATION, cont'd
