1. BASIC COMPONENT REMOVAL, cont’d

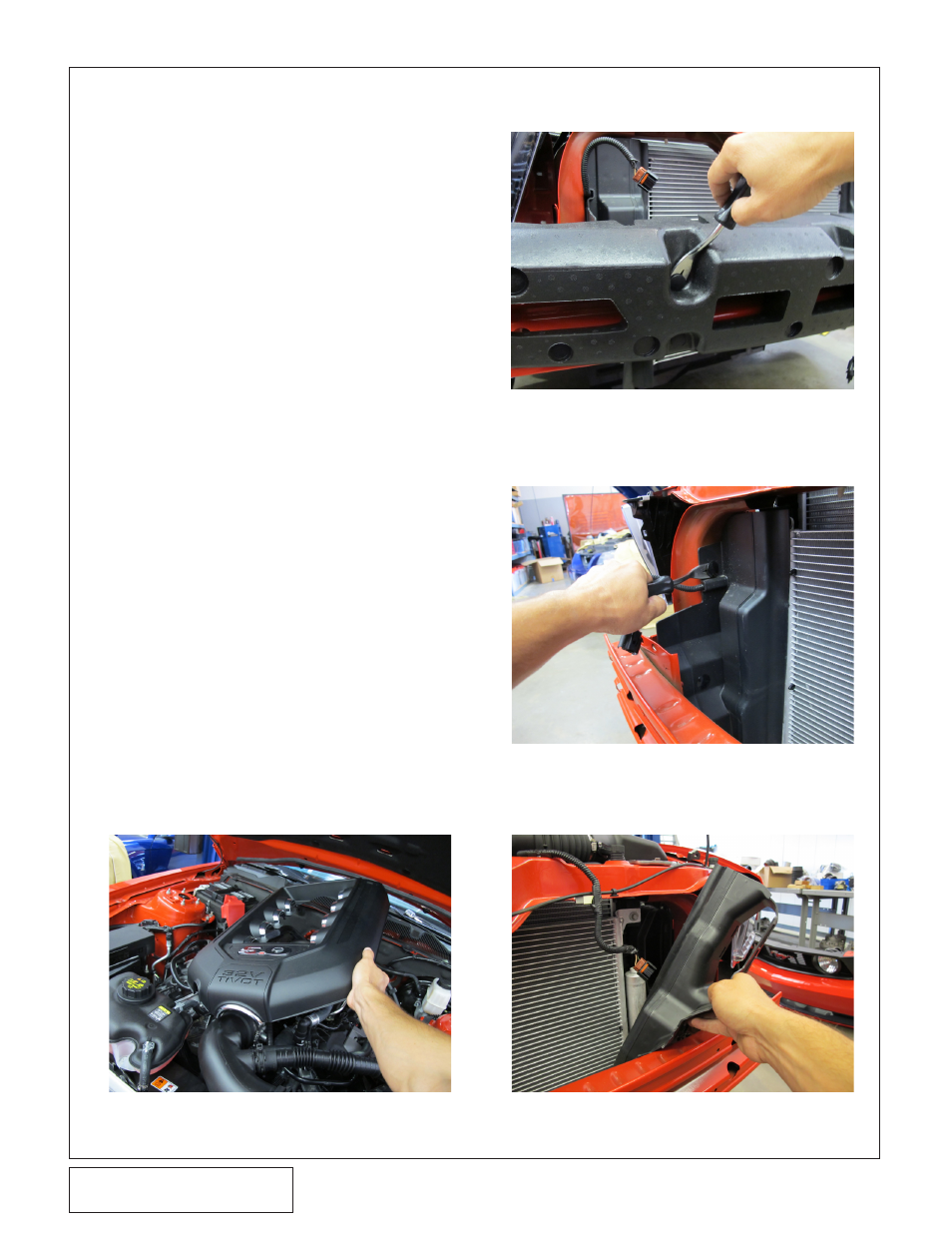

Fig. 1K: Front Bumper Cushion Pins

Remove the four (4) plastic pins securing the

Styrofoam front bumper cushion and set the pins

and cushion aside for later reinstallation. (See Fig.

1K)

Remove the two (2) plastic pins securing the pas-

senger side radiator side shroud. Remove the

shroud and set it aside. (See Fig. 1L)

Remove the plastic pin securing the Ambient Air

Temperature sensor harness from the bottom of

the driver side radiator side shroud. Remove the

two (2) plastic pins securing the shroud itself,

snap the shroud free from the airbox snorkel, and

set it aside. (See Fig. 1M)

If equipped, remove the strut tower brace by

removing the four (4) 13mm nuts (2 per side).

Pop the engine cover free from its four (4) rubber

grommet mounts and set it aside. (See Fig. 1O)

Fig. 1L: Radiator Side Shroud, Passenger

Fig. 1M: Radiator Side Shroud, Driver

Fig. 1O: Engine Cover
