Trim the passenger side front corner of the engine

cover as shown. Start with a small cut and check

fitment, only trimming away as much as neces-

sary for clearance. (See Fig. 10D-1)

Locate the Ambient Air Temperature sensor previ-

ously removed from the front bumper cover. It is

located near the horn assembly. Secure it to the

wiring harness near the horn assembly, using the

supplied zip ties, where it will receive fresh air

flow.

Reinstall the black plastic cover above the grille

and radiator. Secure with the four (4) rearmost

plastic pins.

10. MISCELLANEOUS REASSEMBLy, cont'd

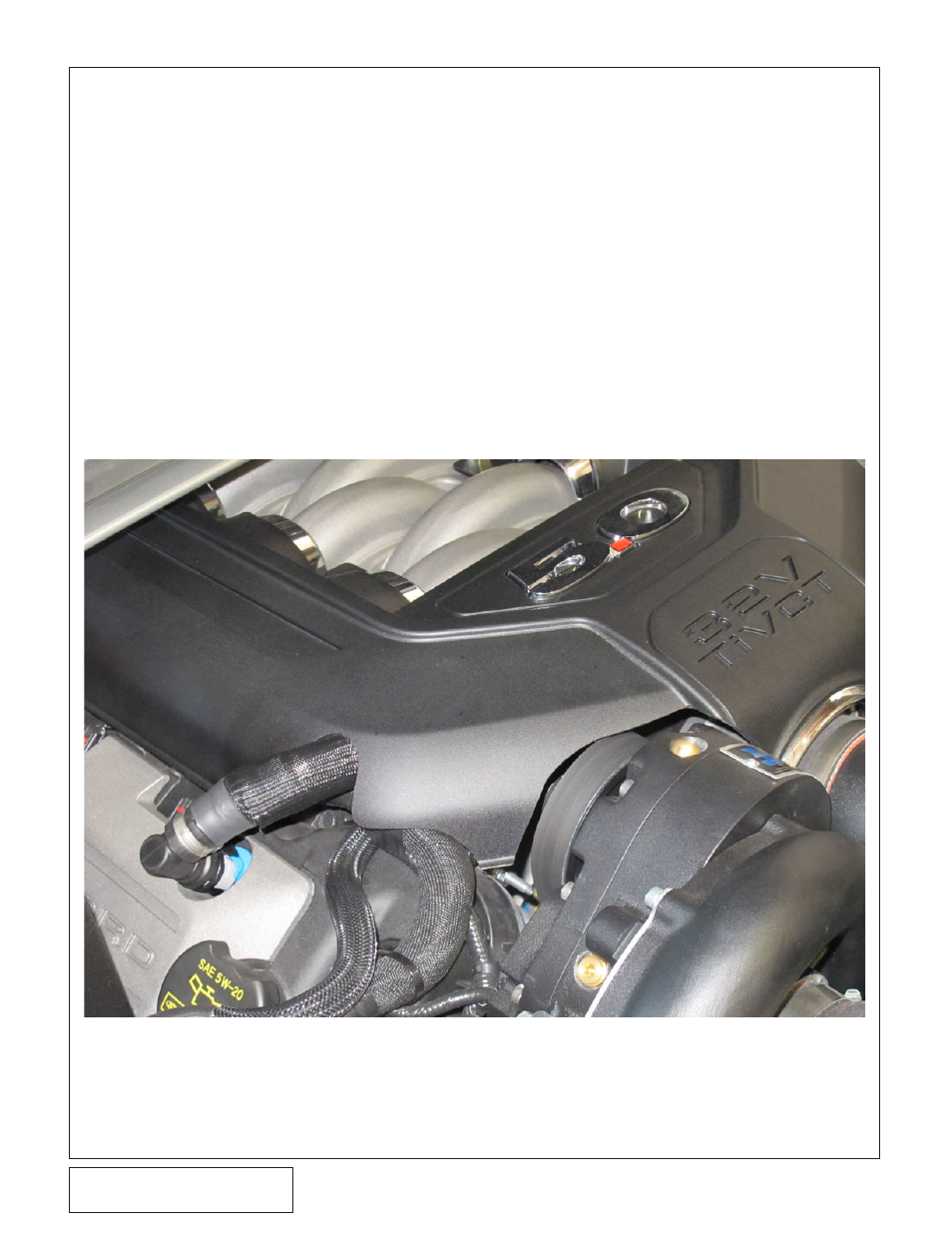

Fig. 10D-1: Engine Cover Cut Detail
