3. ENGINE COOLING SySTEM MODIFICATION, cont'd

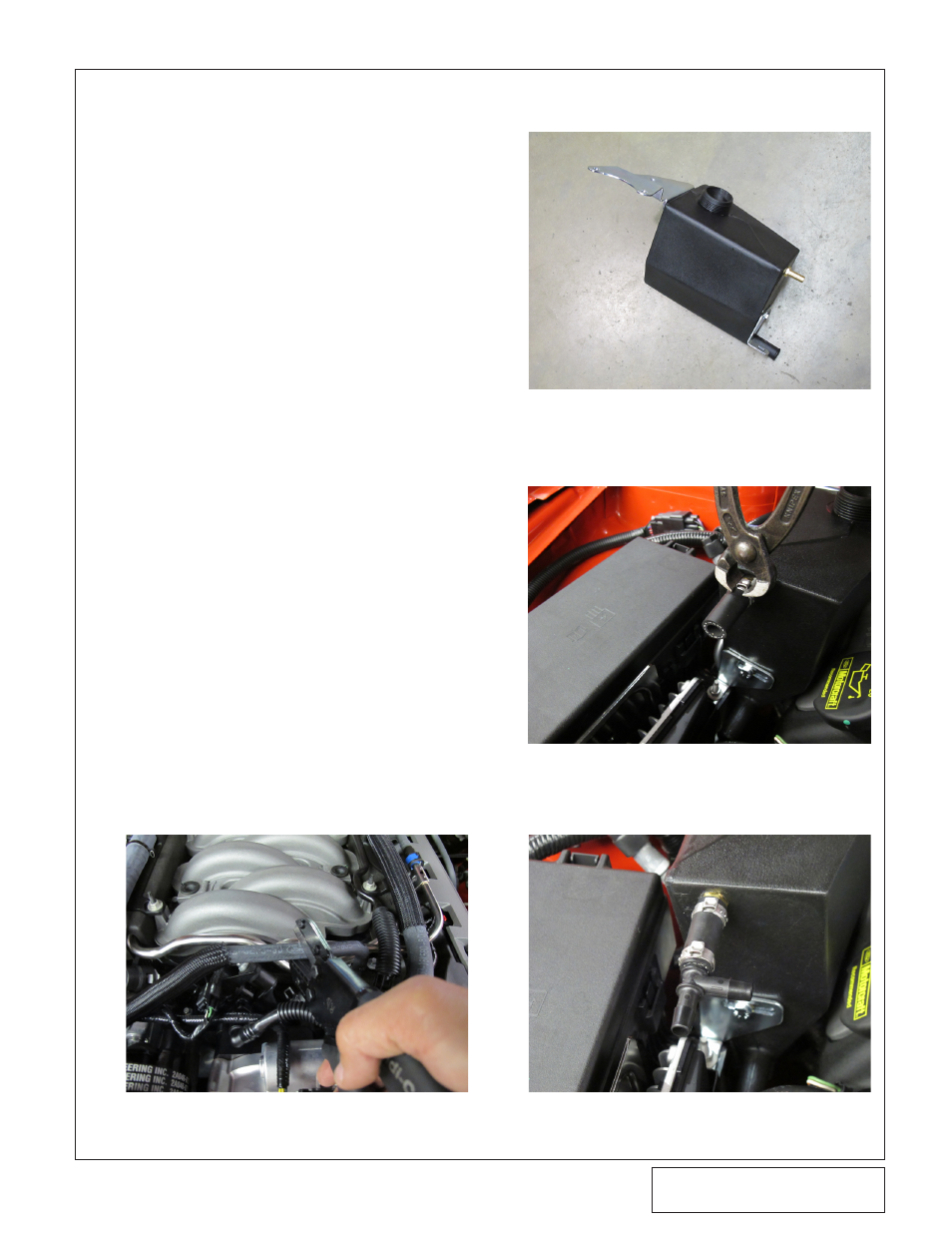

Fig. 3R: Coolant Reservoir

Loosely assemble the mounting brackets to the

replacement coolant reservoir as shown using the

included ¼-20 screws and washers. (See Fig. 3R)

Install the replacement coolant reservoir brackets

onto the two (2) studs on top of the passenger

side strut tower and the stud next to the power

distribution box. Loosely install the previously-

removed OEM 13mm hex nuts and 10mm hex

nut. Position the reservoir as close to the strut

tower as possible (away from the engine) and

tighten all fasteners. Slight adjustment of the A/C

line under the reservoir may be necessary. If

equipped, reattach the OEM ground wire to the

stud and secure with the OEM 10mm hex nut.

Locate the included 3/8” hose and cut a 2” piece.

Install the piece onto the hose barb on the

replacement coolant reservoir and secure with an

included #17 stepless clamp. (See Fig. 3T)

Slide another #17 stepless clamp onto the 2”

piece and then insert the black plastic TEE as

shown, so one leg points forward and one points

to the driver side. Secure with the #17 stepless

clamp. (See Fig. 3U)

Locate the small coolant hose running from the

driver side front of the engine previously discon-

nected from the OEM coolant reservoir. Cut the

hose in the approximate location shown. (See Fig.

3V)

Fig. 3T: Ø3/8" x 2" Hose

Fig. 3U: Black Plastic TEE

Fig. 3V: Small Coolant Hose
