Basic component removal – Paxton Superchargers Ford 5.0L Mustang GT User Manual

Page 10

P/N: 4809664 v3.1, 06/12/2012

Locate the Ambient Air Temperature sensor in the

lower grille opening on the driver side of the front

bumper cover. Free the plastic clip from its

attachment point. (See Fig. 1A)

Remove four (4) 7mm-headed fasteners under the

front bumper cover in front of the lip. (See Fig.

1B)

Remove five (5) 7mm-headed fasteners securing

the black plastic front undertray. Remove the

undertray by moving it back and down and set it

aside for later reinstallation. (See Fig. 1C)

Remove two (2) 7mm-headed fasteners from the

front edge of each front wheel well (four screws

total), which secure the splash shield to the front

fascia. (See Fig. 1D)

1. BASIC COMPONENT REMOVAL

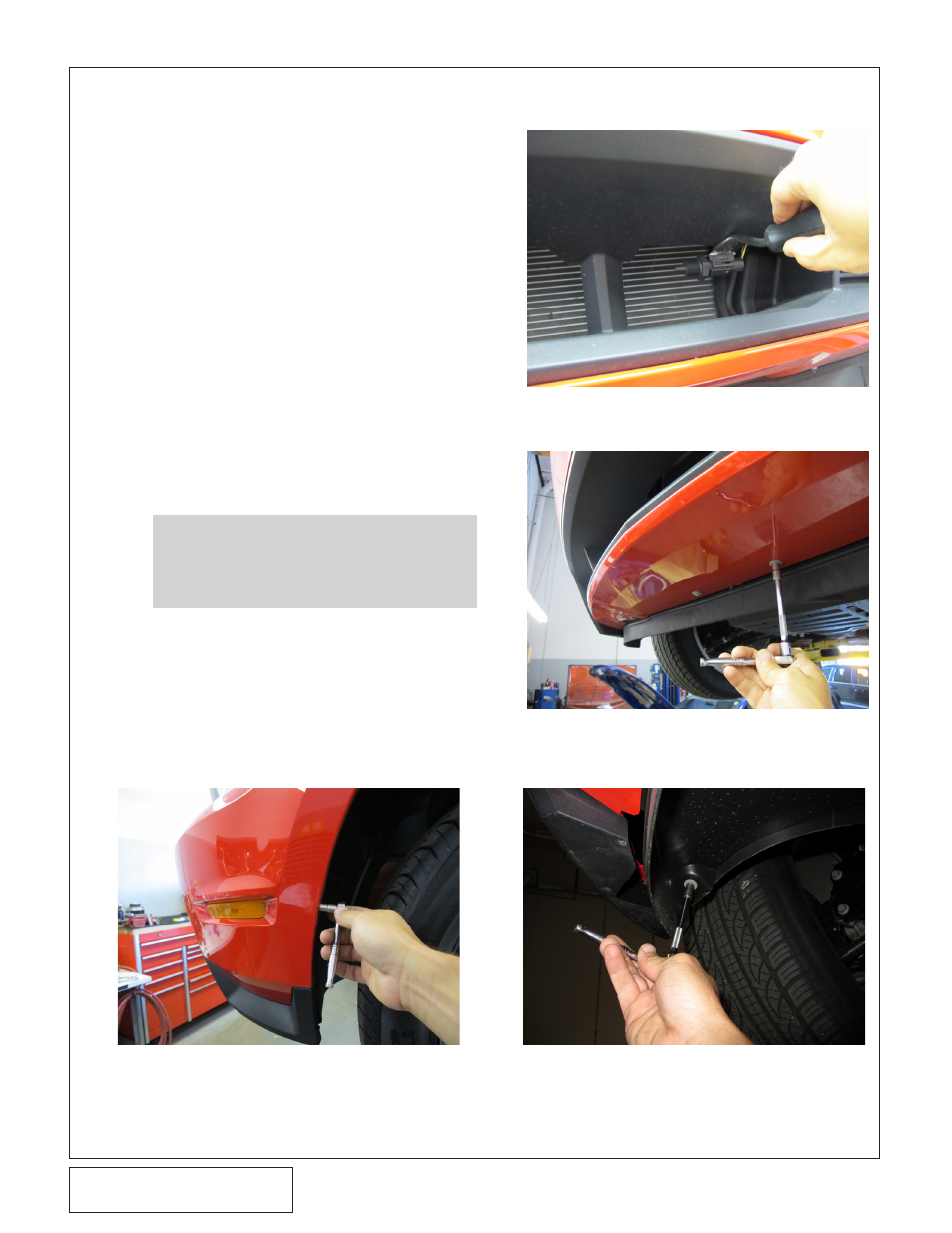

Fig. 1A: Ambient Air Temp Sensor

Fig. 1B: Front Bumper Cover Lip

Fig. 1D: Splash Shields

Fig. 1C: Front Undertray

NOTE: Retain all fasteners & note

the original location of each for

future re-use.
