31
Fig. 3AN
Fig. 3AM
3. ENGINE COOLING SySTEM MODIFICATION, cont'd

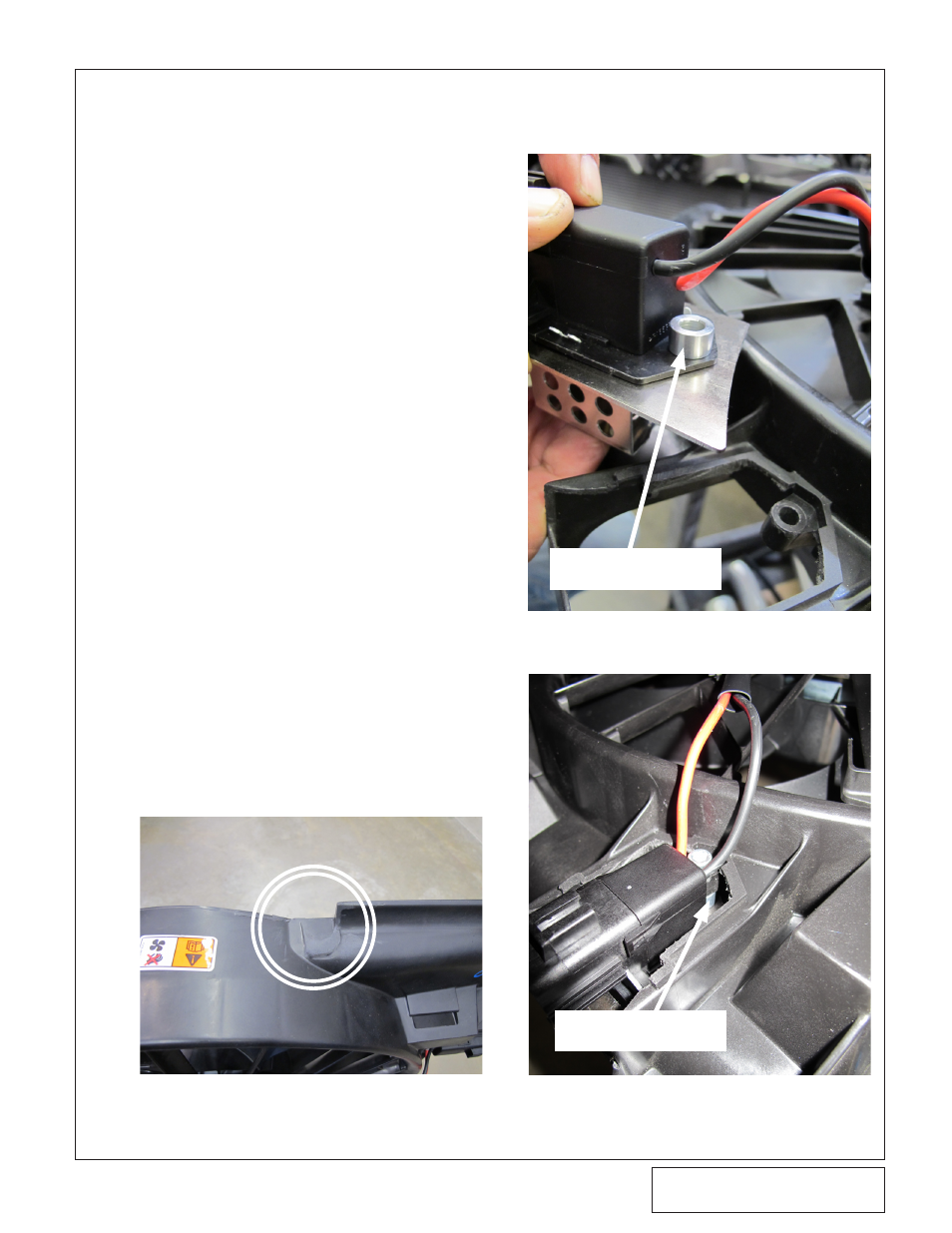

AN. Before securing the assembly, sandwich the
supplied ½” OD x .29” long spacer in-between
the top of the fan module and the bottom of
the fan shroud boss as shown in Figs. 3AM
and 3AN.
AO. Secure the bracket to the module, shroud and
spacer using the supplied ¼-20 x .75 screw
(side of shroud), ¼-20 x 1.25 screw (top of
shroud), nylock nuts and washers.
AP. Trim top portion of fan shroud as shown in Fig.
3AO.
.29" SPACER
.29" SPACER
Fig. 3AO
