AA. Remove the ¾” rubber OEM coolant hose from

the driver side heater tube located on the front of

the engine (see Fig. 3AB-3). The OEM hose will

not be re-used. Remove the nylon abrasion

sleeve from the OEM hose and slide it over the

supplied ¾” x 36” length of heater hose. Attach

one end of the hose to the nipple on the replace-

ment engine coolant reservoir and secure with the

supplied #28.6 stepless clamp (see Fig. 3AB-4).

The remaining open end of the ¾” hose will not

be connected at this time.

AB. Move the two spring clamps securing the lower

Radiator hose on the drivers side of the vehicle.

Remove the hose, place the end that was

attached to the Radiator to the outlet on the

engine secure the end of the hose that was on the

engine to the Radiator and reinstall the spring

clamps.

3. ENGINE COOLING SySTEM MODIFICATION, cont'd

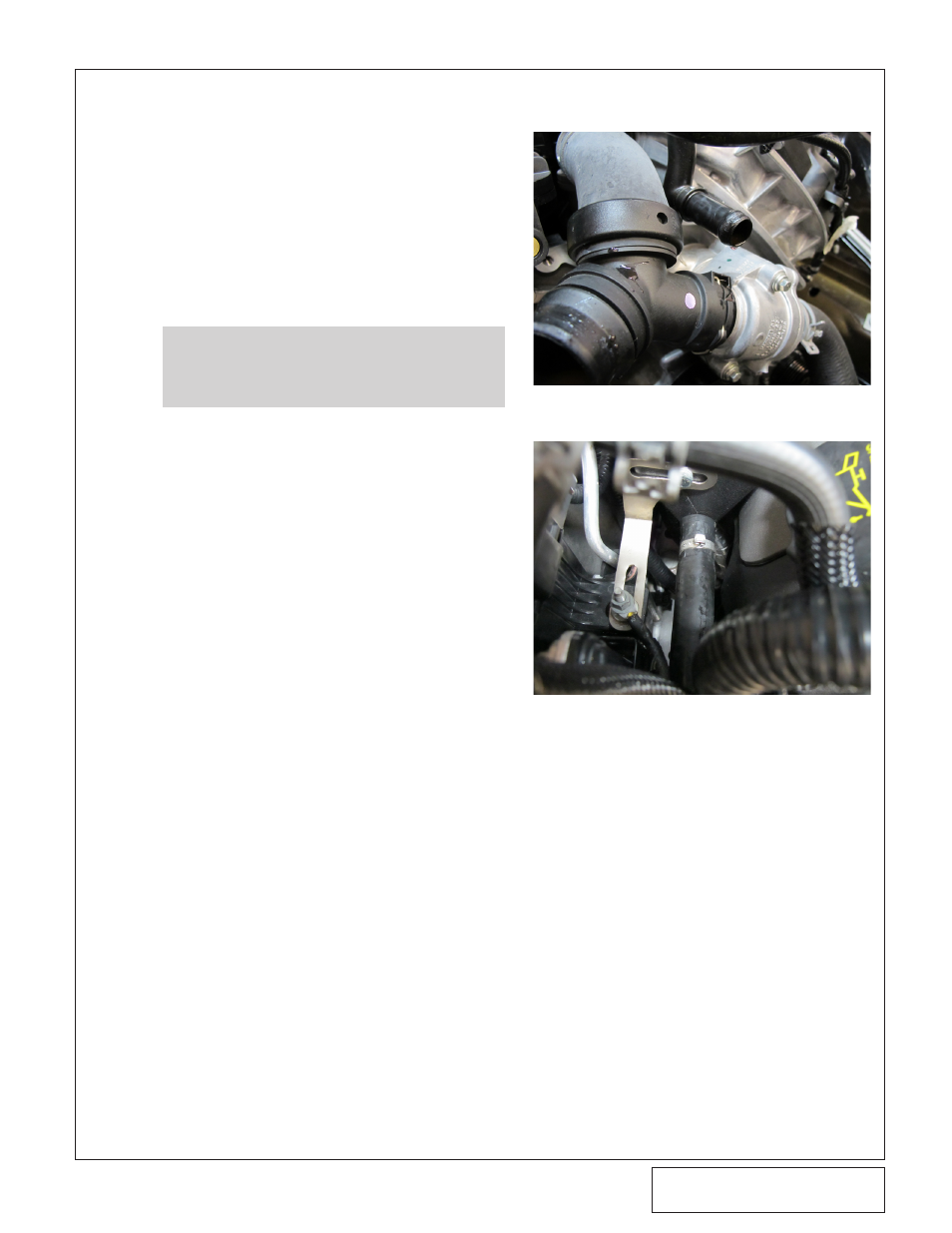

Fig. 3AB-4

Fig. 3AB-3

NOTE: This coolant hose will be recon-

nected in a later step after radiator fan

reinstallation.
