9. FUEL INJECTOR REPLACEMENT, cont'd

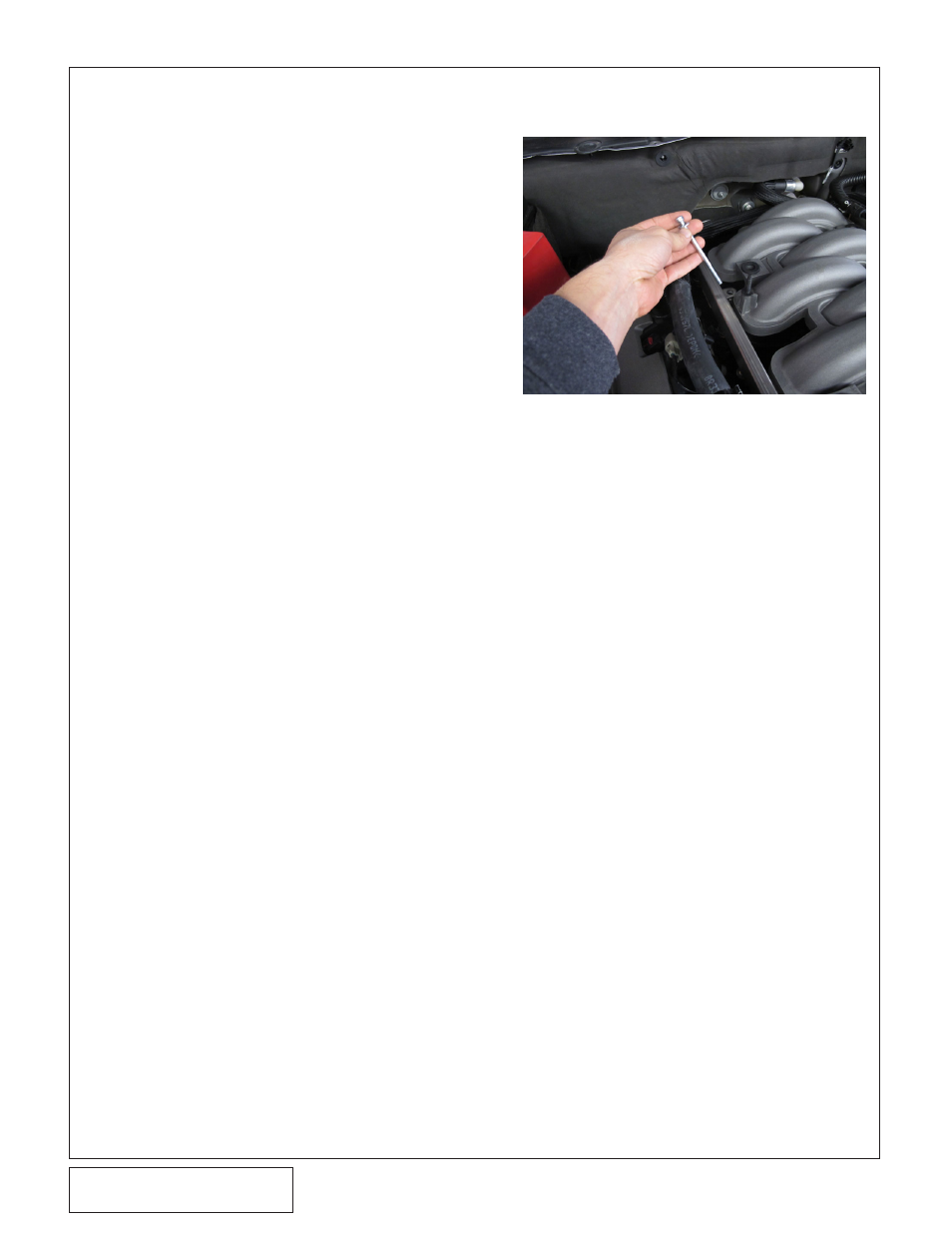

Fig. 9M: Re-securing Fuel Rails
L. Install the rail/injector assembly into the intake
manifold.
M. Secure the fuel rails with the four (4) included
M10 x 90mm socket head cap screws with wash-
ers. (See Fig. 9M)
N. Connect the fuel injector electrical connectors to
each of the eight (8) injectors.
O. Place the foam insulation back over each fuel rail.
P. Place the vacuum tube assembly back into posi-
tion on the studs near the driver side fuel rail.
Q. Reinstall the plastic heater hose guides and
secure with the OEM 10mm hex nuts. Route the
heater hoses over them in the OEM fashion.
R. Reconnect the fuel feed line to the fitting on the
fuel rail assembly. Make sure it is securely con-
nected in the OEM fashion.
