6. hORN ASSEMBLy RELOCATION

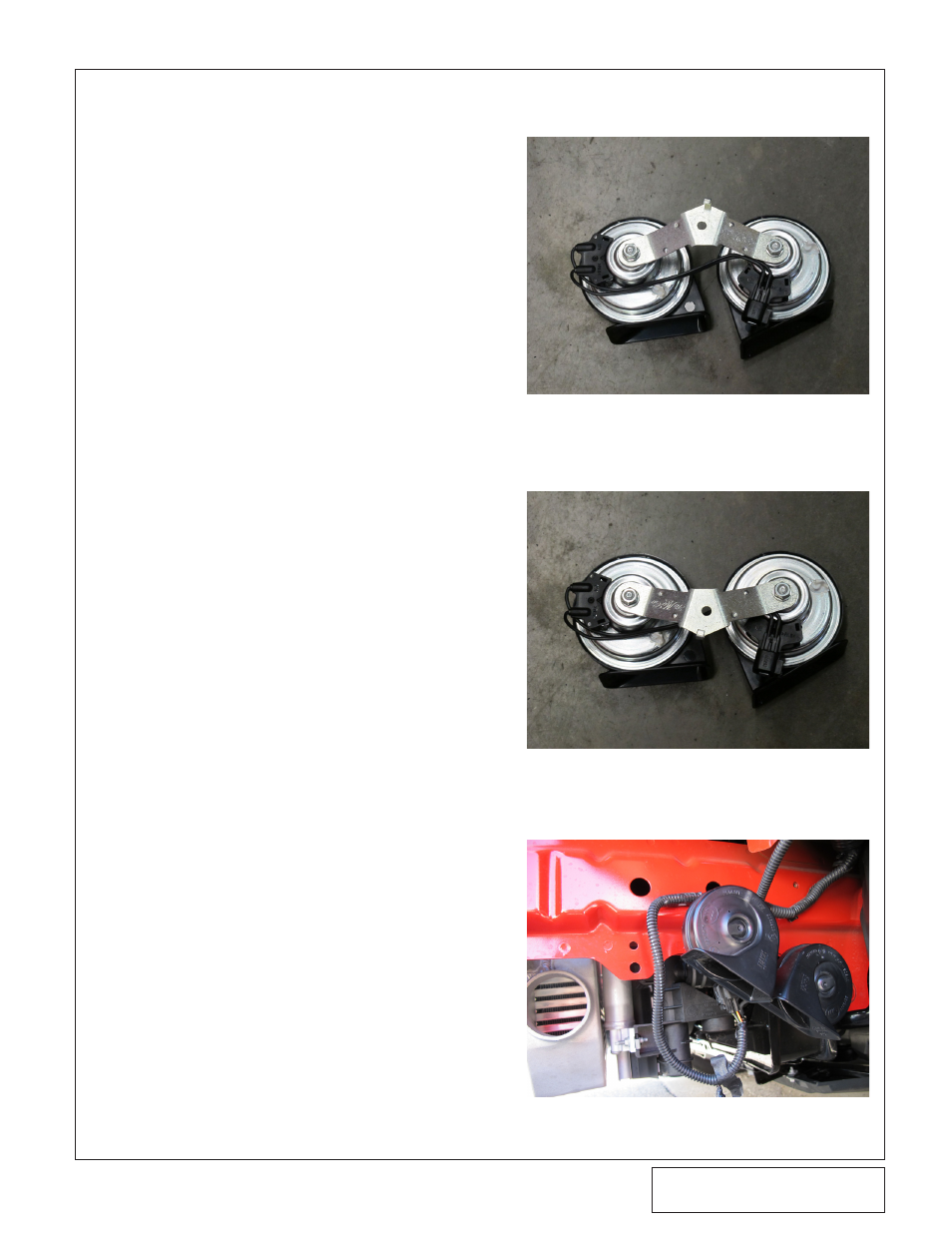

Fig. 6A: OEM Horn Bracket Orientation

Locate the horn assembly, located on the outside

of the front frame rail near the front of the car.

Unplug the electrical connector from the assem-

bly.

Remove the 8mm-headed fastener securing the

horn assembly to the car and remove the assem-

bly. (See Fig. 6A)

Remove the 10mm-headed fastener securing

each horn to the mounting bracket. Rotate the

bracket 180° and reattach it to the horns with the

OEM fasteners. (See Fig. 6B)

Reinstall the horn assembly in the original location

with the OEM 8mm-headed fastener, but with the

mounting bracket rotated approximately 180° from

its original orientation. The horns should now still

open downward but be mounted higher up than

originally. (See Fig. 6C)

Reconnect the electrical connector to the horn

assembly.

Fig. 6B: Modified Horn Bracket Orientation

Fig. 6C: New Horn Location
