Page 26

P/N: 4809664 v3.1, 06/12/2012

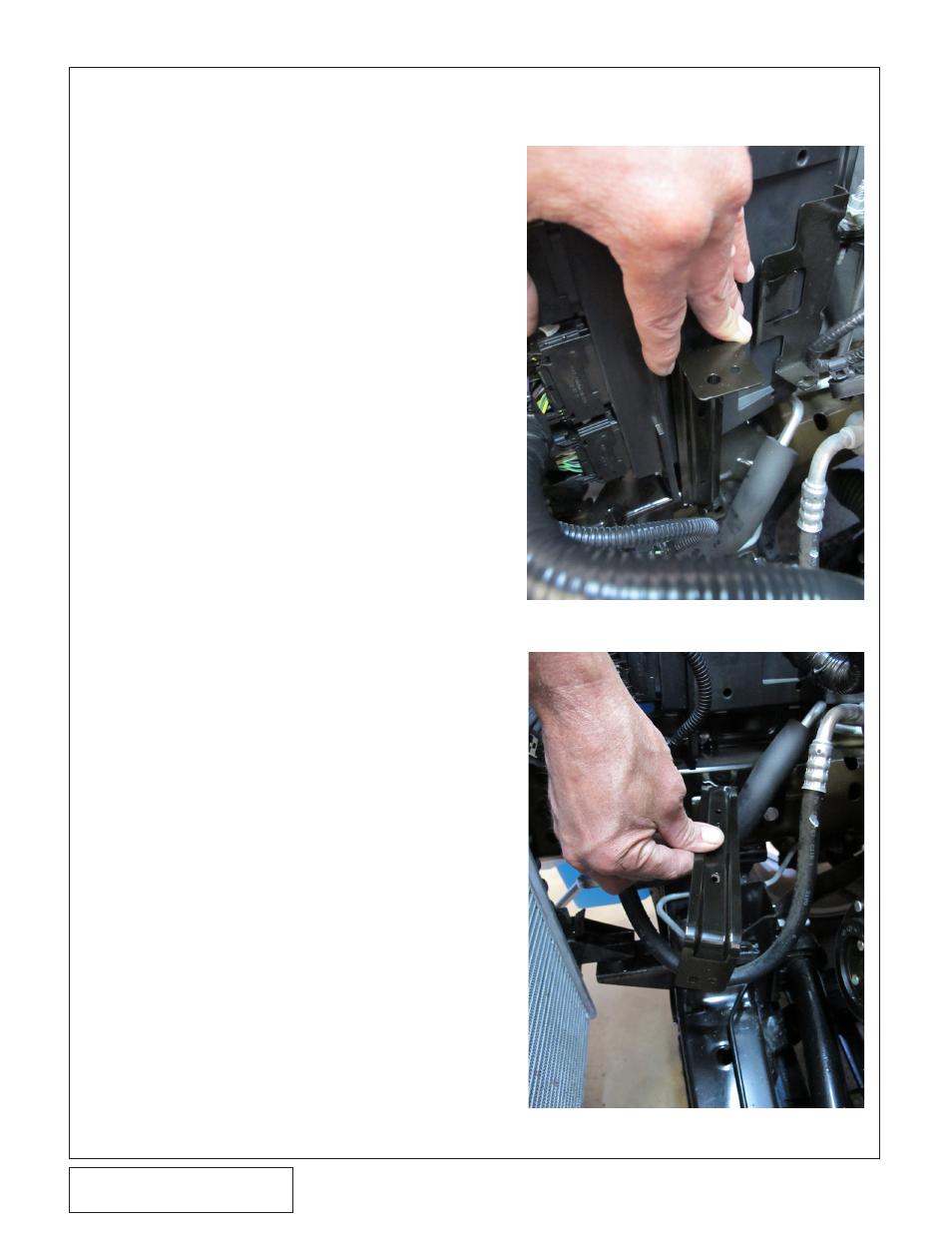

On the front, passenger side of the engine com-

partment, remove the metal OEM harness mount-

ing tab from the vehicle by bending it and break-

ing it off at the weld joint as shown. The tab will

separate from the frame after it has been bent

down and back up into its original position. If any

sharp metal edges of the tab remain on the frame

mount, gently tap the edges down against the

frame until they do not protrude. Discard the tab.

3. ENGINE COOLING SySTEM MODIFICATION, cont'd

Fig. 3AB-1

Fig. 3AB-2
