28
3. ENGINE COOLING SySTEM MODIFICATION, cont'd
AC. Place the supplied fan shroud air dams into posi-
tion in the inside bottom corners of the fan shroud
as shown. (See Fig. 3AC)
AD. Trace along the outside (toward the corner) edge
of the air dams to mark the cut lines on the fan
shroud. (See Fig. 3AD)
AE. Cut the lower corners of the fan shroud along the
cut lines. Trim until the air dams fit with minimal
gaps. (See Fig. 3AE)
AF. Place the air dams into position with the mounting
tabs on the outside surfaces of the fan shroud and
mark the locations of the mounting holes. Drill a
1/8" hole in each location.

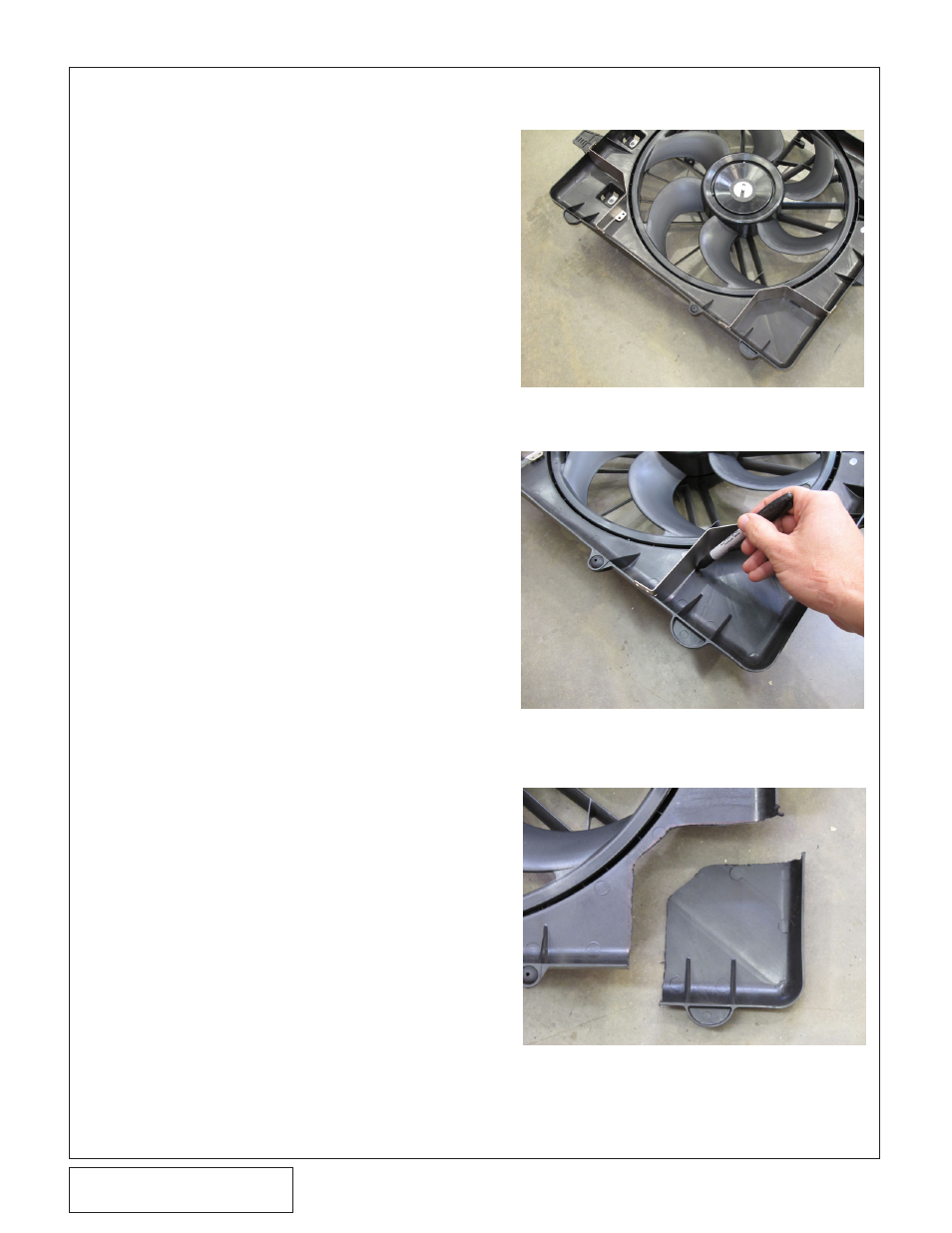

Fig. 3AC: Radiator Fan Shroud Air Dam
Placement
Fig. 3AD: Marking Air Dam Cut Lines
Fig. 3AE: Air Dam Location Cut
