2. MISCELLANEOUS PREPARATION, cont'd

Automatic Transmission Only: Locate the two

transmission cooler hoses and hard lines on the

passenger side of the engine compartment. (See

Fig. 2E)

Automatic Transmission Only: Clamp the rub-

ber hoses at either end of the hard line sections to

minimize fluid loss. Cut the forward rubber hose

segments as close to the hard lines as possible,

so the cut ends point directly rearward. (See Fig.

2F)

Automatic Transmission Only: Clamp and cut

the rubber hoses at the other end of the hard

lines. Cut these further back at a location that will

allow the extended hoses to travel along the pas-

senger side frame rail.

Automatic Transmission Only: Use the included

black nylon 1/2" hose unions, 1/2" braided hose,

and 13/16" stepless clamps to join the cut OEM

rubber hose ends together. Route the hoses

along the passenger side frame rail, leaving suffi-

cient slack to allow for engine movement. (See

Figs. 2H-1, 2H-2)

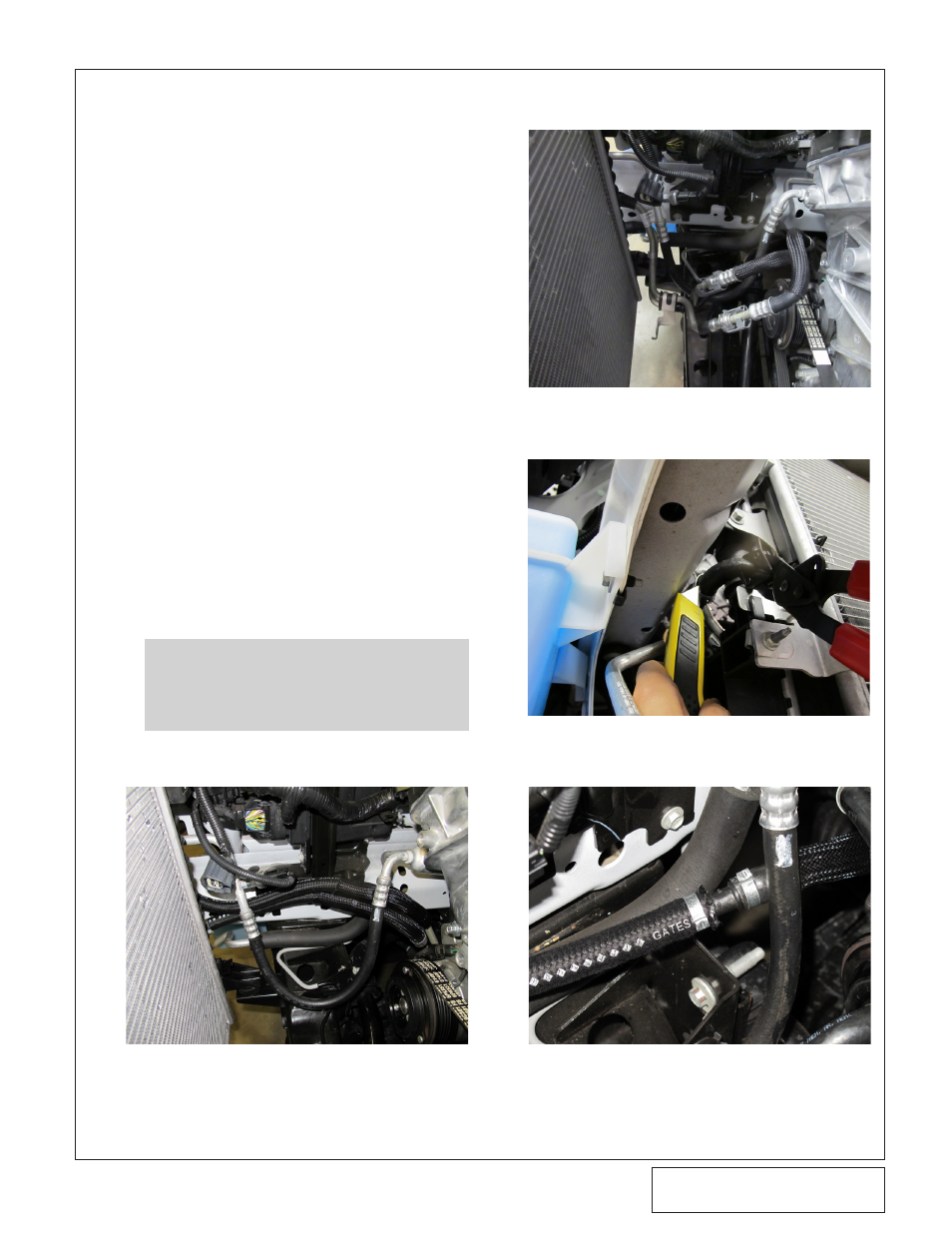

Fig. 2E: OEM A/T Cooler Hoses & Hard Lines

Fig. 2F: Clamping and Cutting A/T Hoses

Fig. 2H-1: Joining A/T Hoses

Fig. 2H-2: Completed A/T Hose Modification

NOTE: Take care to connect each

hose to the appropriate/matching

other end.
