Switching
PSSnet SHL - Web- based Interface
Pilz GmbH & Co. KG, Felix- Wankel Str. 2, 73760 Ostfildern
4.5 VLAN
79
Note: Note the following:
X HIPER-Ring
Select the port VLAN ID
1 for the Ring ports and deactivate “Ingress
Filtering”.
X MRP-Ring
– If the MRP-Ring configuration
(see on page 113 „Configuring the
MRP-Ring“) is not assigned to a VLAN, select the port VLAN ID 1.
– If the MRP-Ring configuration (see on page 113 „Configuring the
MRP-Ring“) is assigned to a VLAN, the device automatically performs
the VLAN configuration for this port.
X Network/Ring coupling
Select the VLAN ID
1 for the coupling and partner coupling ports and de-
activate “Ingress Filtering”.

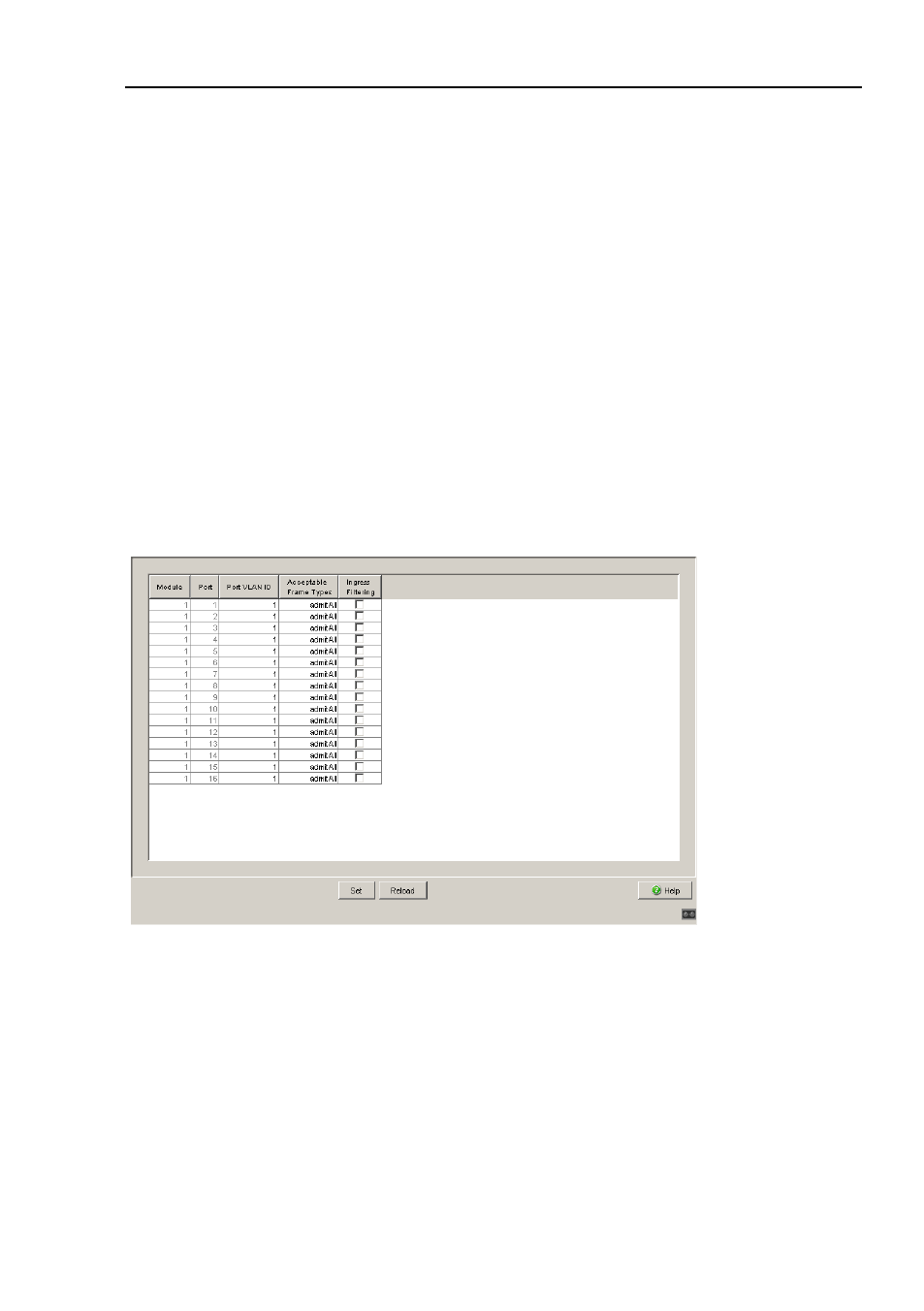

Figure 29: VLAN Port dialog
