Flight map making, 6 flight map making – FeiYu Tech FY-Panda2 Autopilot User Manual
Page 34
Guilin Feiyu Electronic Technology Co., Ltd.
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyu-tech.com [email protected]
Page 33

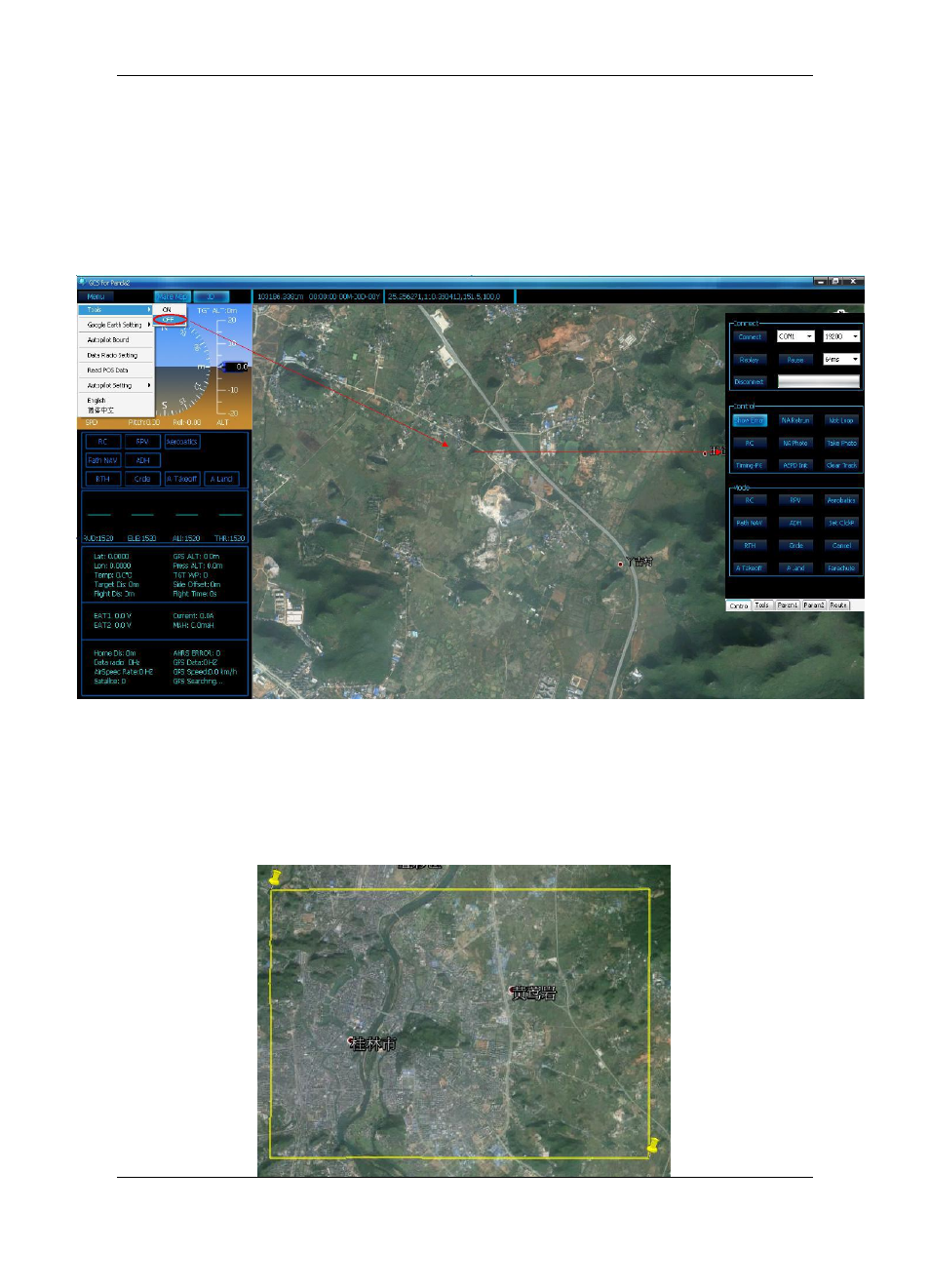

11.6 Flight Map Making
GCS 5.1 only can display and set the flight path in 2D view ,We can make the
Google earth map into the flight map which can be use the 2D view.
1 ) Confirmation has been connected to the network , hidden the toolbar , make the
GCS software to maximize window .
2 )
Click the ―3D‖button switch to the 3D view ,then fine out the flight region on
Google earth live map .
3 ) Fined the region where you need on Google earth live map in 3D view , press
on the ―AIT‖ key on the keyboard, mouse change into Gripper type , click the first point
and the last point, the FYGCS 5.1 software will generate the screenshot region
automatically.
