Page 23
enter the correct ID number on the GCS ,it can establish connection with Panda
Ⅱ .This
function can effectively avoid the problem which interference the control of the Padan2
because using the data radio in the same frequency .
Firmware for Panda
Ⅱ below V1.2 Version Please enter “00000” in the ID
setting dialog box.
Setting ID number
The default ID number is ―00000‖. Users can enter any number between
00000~65535.For example, we can reset the ID number as ―01234‖.When doing the ID
number matching operation
，you can only connect the UART port of the PandaⅡ
module to the computer via the USB cable . Or you can doing the ID number matching
operation under option 1 and option 2 .
But you have to ensure that install the jumper to P1 ,P2 when power on to execute
the bounding operation .

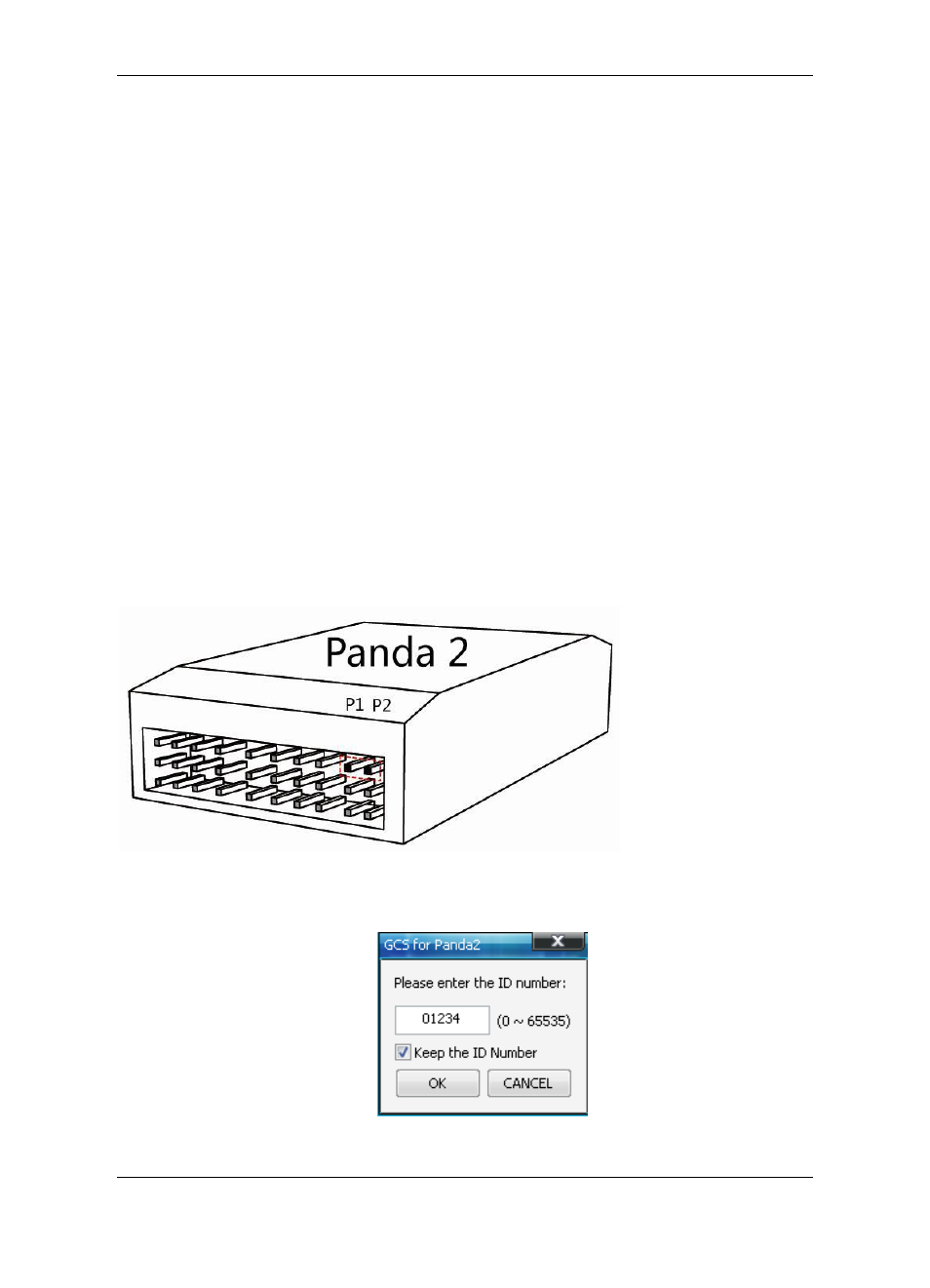

Install the jumper to P1,P2 port ,then power on to Panda
Ⅱ.
2) Click the ―connect ‖ button ,it will pop-up the ID setting dialog box. Enter the ID
number which setting for the Panda
Ⅱ ―01234‖
3) Select ―Menu---Autopilot Bound‖
