9. PandaⅡ Indicator Light Instruction
Panda
Ⅱ with three colors LED which can send out red, blue, green light. Also
yellow, white, purple and other colors light through the combination.
Operators can know the Panda
Ⅱ‘s operating mode by judging the different colors
which the LED sends out and the flash frequency. green light flash means GPS location
fixed, red and blue light indicate Panda
Ⅱ working mode. Under manual mode,
stabilization mode or 3D mode, keep Panda
Ⅱ in the static state. If it sends out purple
light it means Panda
Ⅱ needs Gyro Reset.

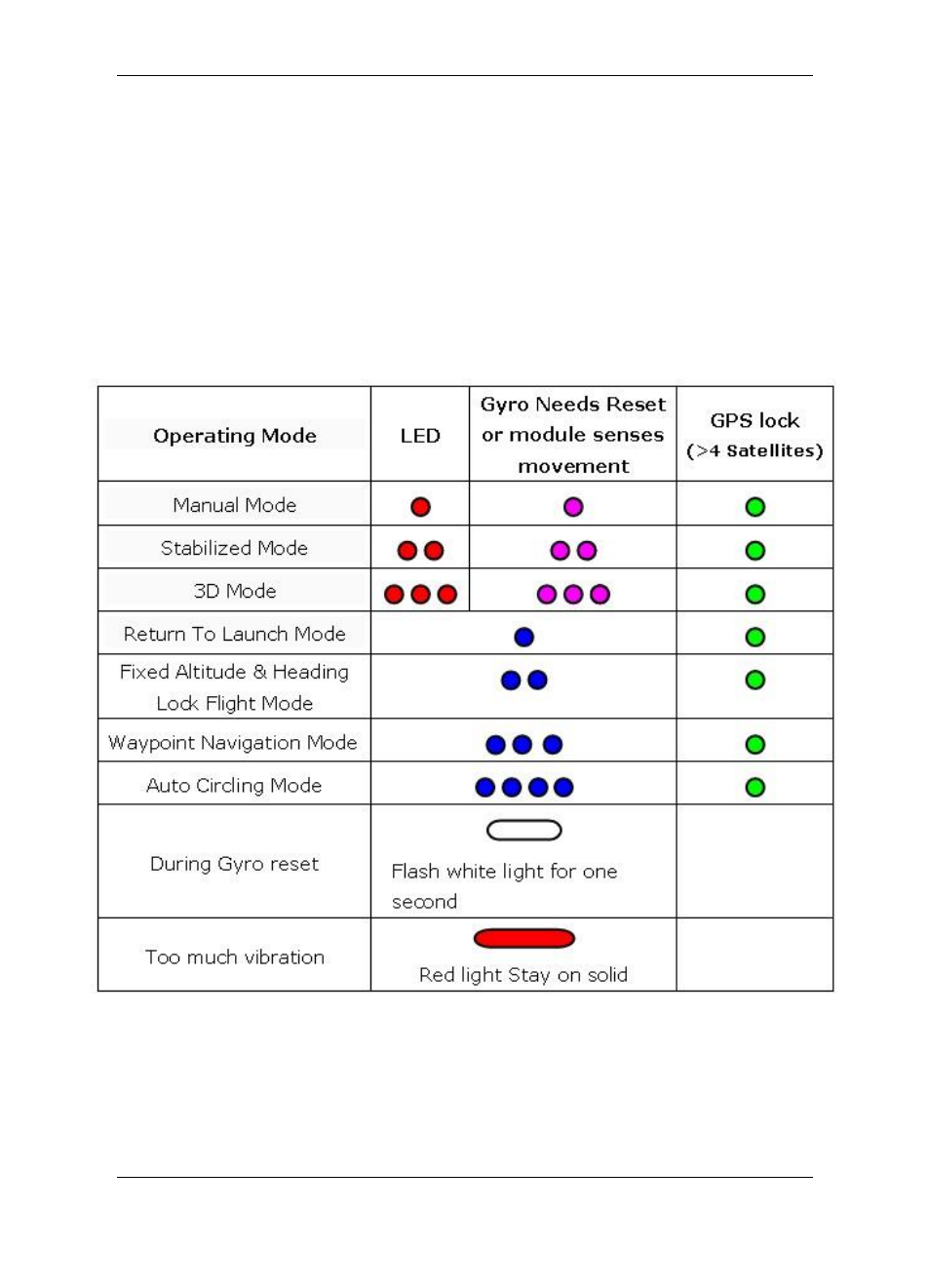

e.g.
Red Manual Mode, GPS not lock
Red —Red—Green Stabilized Mode, GPS lock
Purple —Purple—Green Stabilized Mode, GPS lock,
If it stay static means need Gyro Reset.
Blue —Blue—Blue—Green Waypoint Navigation Mode, GPS lock
