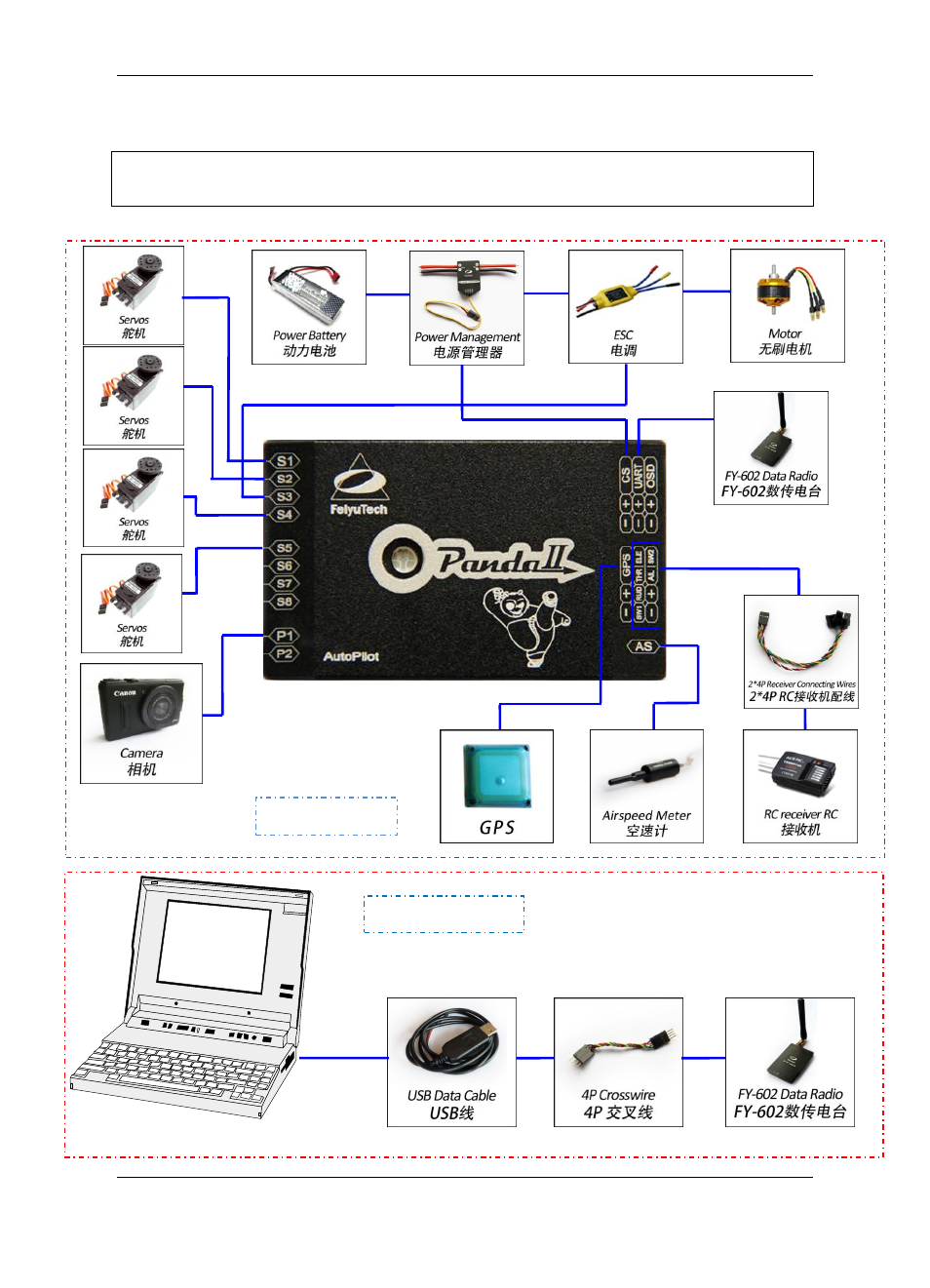

5. Connection Diagram
OPTION 1: RC receiver directly connect to Panda Ⅱ. The maximum flight range is your RC
Transmitter. No delay, high real-time performance.
Aircraft
Ground Station
